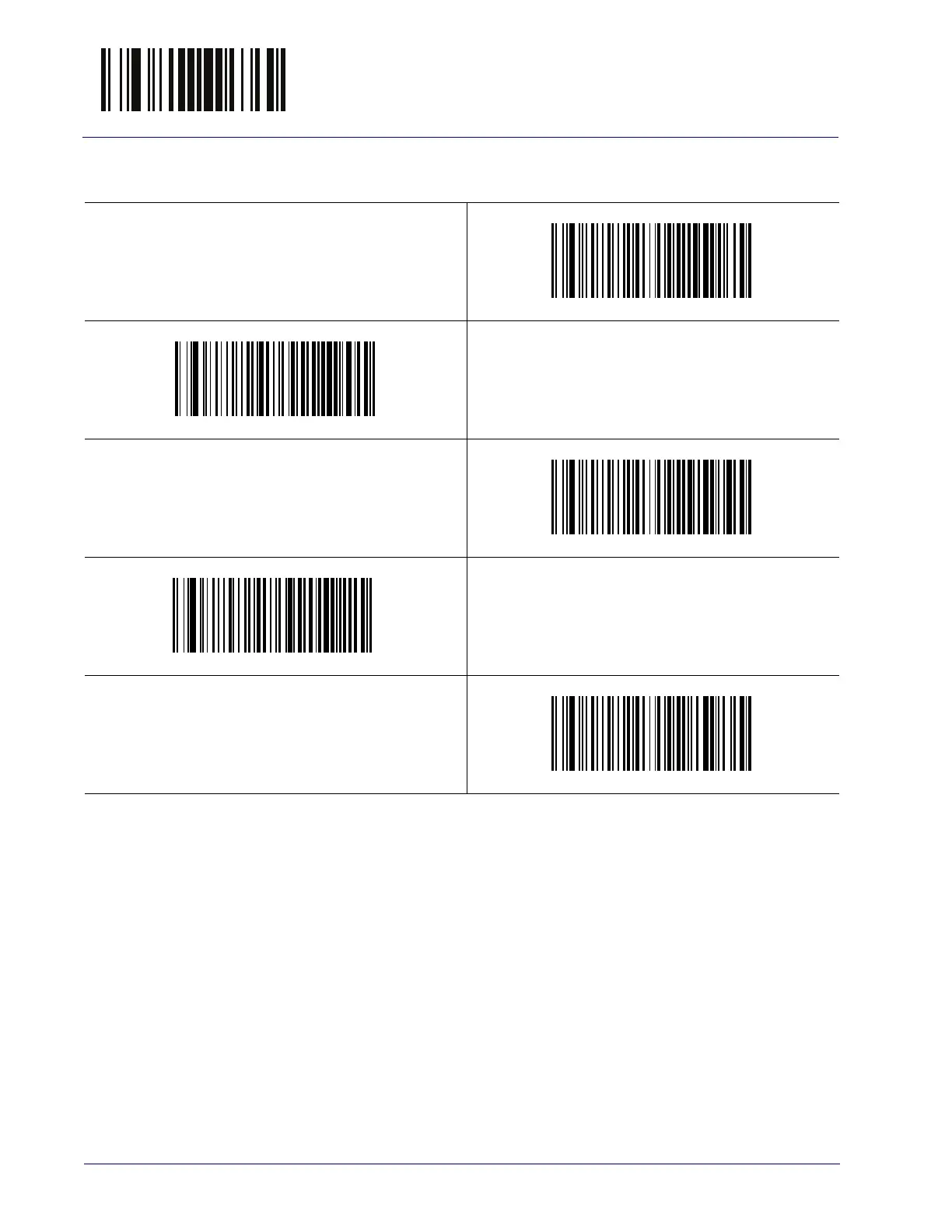

Enter/Exit Programming
Mode
Code 39
118
Cobalto™ CO5300 Scanner
Code 39 Interdigit Ratio — cont.
$CC3IR06
Code 39 Interdigit Ratio = 6
$CC
3IR07
Code 39 Interdigit Ratio = 7
$CC3IR08
Code 39 Interdigit Ratio = 8
$CC
3IR09
Code 39 Interdigit Ratio = 9
$CC3
IR0A
Code 39 Interdigit Ratio = 10
129
131
Table of Contents
Table of Contents
3
Introduction
13
About the Scanner
13
Capacitive Touch Button
14
Bottom Button
14
About this Manual
15
Overview
15
Conventions
15
Technical Support
16
Datalogic Website Support
16
Reseller Technical Support
16
Telephone Technical Support
16
Setup
17
Unpacking
17
Setting up the Scanner
17
Connect Host Interface
18
Interface Selection
20
Configuring the Interface
20
Customizing Configuration Settings
23
Using the Programming Bar Codes
23
Datalogic Aladdin Utility
23
Interface Settings
24
Configuring Other Features
24
Software Version Transmission
24
Resetting the Product Configuration to Defaults
25
Configuration Using Bar Codes
27
Configuration Parameters
27
Global Interface Features
29
Host Commands - Obey/Ignore
29
USB Suspend Mode
30
RS-232 ONLY Interface
31
RS-232 Standard Factory Settings
31
Baud Rate
31
Stop Bits
32
Parity
33
Handshaking Control
34
RS-232/USB-COM Interfaces
35
Standard Factory Settings
35
Intercharacter Delay
35
Beep on ASCII BEL
36
Beep on Not on File
36
ACK NAK Options
37
ACK Character
38
NAK Character
38
ACK NAK Timeout Value
39
ACK NAK Retry Count
40
ACK NAK Error Handling
41
Disable Character
42
Indicate Transmission Failure
42
Enable Character
43
Keyboard Interface
45
Country Mode
45
Caps Lock State
48
Numlock
48
Keyboard Numeric Keypad
49
Keyboard Send Control Characters
50
Wedge Quiet Interval
51
Intercharacter Delay
52
Intercode Delay
53
USB Keyboard Speed
54
USB-OEM Interface
55
Introduction
55
Standard Factory Settings
55
USB-OEM Device Usage
56
USB-OEM Interface Options
56
Data Format
57
Global Prefix/Suffix
58
Global AIM ID
59
Gs1-128 Aim ID
59
Label ID
60
Label ID: Pre-Loaded Sets
60
Label ID: Set Individually Per Symbology
61
Label ID Control
61
Label ID Symbology Selection
62
Case Conversion
68
Character Conversion
68
Cobalto™ CO5300 Scanner
68
Reading Parameters
69
Double Read Timeout
70
Label Gone Timeout
72
Timeout: Enter Low Power State
73
Timeout: Enter Standby State
75
Timeout: Laser off after Single Line Scan
77
Touch Button Option
78
LED and Speaker Indicators
78
Power on Alert
78
Audio Jingle Enable
79
Select Audio Jingle for Power-Up Event
80
Select Audio Jingle for Good Read Event
82
Good Read: When to Indicate
85
Good Read Beep Type
86
Good Read Beep Frequency
86
Good Read Speaker Volume
87
Good Read Beep Length
88
Good Read LED Duration
89
Scanning Features
90
Scan Modes
90
Symbologies
91
Introduction
91
Standard Factory Settings for Symbologies
91
Disable All Symbologies
92
Coupon Control
92
Upc-A
93
UPC-A Enable/Disable
93
UPC-A Check Character Transmission
93
Expand UPC-A to EAN-13
94
UPC-A Number System Character Transmission
94
In-Store Minimum Reads
95
Upc-E
96
UPC-E Enable/Disable
96
UPC-E Check Character Transmission
96
Expand UPC-E to EAN-13
97
Expand UPC-E to UPC-A
97
UPC-E Number System Character Transmission
98
UPC-E Minimum Read
98
Ean 13
99
EAN 13 Enable/Disable
99
EAN 13 Check Character Transmission
99
EAN-13 Flag 1 Character
100
EAN-13 ISBN Conversion
100
ISSN Enable/Disable
101
EAN 13 Minimum Reads
101
Ean 8
102
EAN 8 Enable/Disable
102
EAN 8 Check Character Transmission
102
Expand EAN 8 to EAN 13
103
EAN 8 Minimum Reads
103
UPC/EAN Global Settings
104
UPC/EAN Decoding Level
104
UPC/EAN Price Weight Check
105
UPC-A Minimum Reads
106
Add-Ons
107
Optional Add-Ons
107
Optional Add-On Timer
108
P2 Add-Ons Minimum Reads
109
P5 Add-Ons Minimum Reads
110
GS1 Databar TM Omnidirectional
111
GS1 Databar Omnidirectional Enable/Disable
111
GS1 Databar Omnidirectional GS1-128 Emulation
111
GS1 Databar Omnidirectional Minimum Reads
112
GS1 Databar TM Expanded
113
GS1 Databar Expanded Enable/Disable
113
GS1 Databar Expanded GS1-128 Emulation
113
GS1 Databar Expanded Minimum Reads
114
GS1 Databar Expanded Length Control
115
GS1 Databar Expanded Set Length 1
115
GS1 Databar Expanded Set Length 2
116
GS1 Databar TM Limited
117
GS1 Databar Limited Enable/Disable
117
GS1 Databar Limited GS1-128 Emulation
117
GS1 Databar Limited Minimum Reads
118
Code 39
119
Code 39 Enable/Disable
119
Code 39 Check Character Calculation
120
Code 39 Check Character Transmission
121
Code 39 Start/Stop Character Transmission
121
Code 39 Full ASCII
122
Code 39 Quiet Zones
123
Code 39 Minimum Reads
124
Code 39 Decoding Level
125
Code 39 Length Control
126
Code 39 Set Length 1
127
Code 39 Set Length 2
128
Code 39 Interdigit Ratio
129
Code 39 Stitching
131
Code 32 (Italian Pharmaceutical)
131
Code 32 Enable/Disable
131
Code 32 Feature Setting Exceptions
132
Code 32 Check Character Transmission
132
Code 32 Start/Stop Character Transmission
132
Code 39 CIP (French Pharmaceutical)
133
Code 39 CIP Enable/Disable
133
Code 128
133
Code 128 Enable/Disable
133
Expand Code 128 to Code 39
134
Code 128 Check Character Transmission
134
Code 128 Function Character Transmission
135
Code 128 Sub-Code Change Transmission
135
Code 128 Quiet Zones
136
Code 128 Minimum Reads
137
Code 128 Decoding Level
138
Code 128 Length Control
139
Code 128 Set Length 1
140
Code 128 Set Length 2
141
Code 128 Stitching
141
Gs1-128
142
GS1-128 Enable
142
Interleaved 2 of 5 (I 2 of 5)
143
I 2 of 5 Enable/Disable
143
I 2 of 5 Check Character Calculation
144
I 2 of 5 Check Character Transmission
145
I 2 of 5 Minimum Reads
146
I 2 of 5 Decoding Level
147
I 2 of 5 Length Control
148
I 2 of 5 Set Length 1
149
I 2 of 5 Set Length 2
150
I 2 of 5 Zero Pattern
150
Interleaved 2 of 5 CIP HR
151
Interleaved 2 of 5 CIP HR Enable/Disable
151
Datalogic 2 of 5
152
Datalogic 2 of 5 Enable/Disable
152
Datalogic 2 of 5 Check Character Calculation
152
Datalogic 2 of 5 Check Character Transmission
153
Datalogic 2 of 5 Minimum Reads
153
Datalogic 2 of 5 Decoding Level
154
Datalogic 2 of 5 Length Control
154
Datalogic 2 of 5 Set Length 1
155
Datalogic 2 of 5 Set Length 2
156
Datalogic 2 of 5 Interdigit Ratio
157
Codabar
159
Codabar Enable/Disable
159
Codabar Check Character Calculation
159
Codabar Check Character Transmission
160
Codabar Start/Stop Character Transmission
160
Codabar Start/Stop Character Set
161
Codabar Start/Stop Character Match
161
Codabar Quiet Zones
162
Codabar Minimum Reads
163
Codabar Decoding Level
164
Codabar Length Control
165
Codabar Set Length 1
166
Codabar Set Length 2
167
Codabar Interdigit Ratio
168
ABC Codabar
170
ABC Codabar Enable/Disable
170
ABC Codabar Concatenation Mode
170
ABC Codabar Dynamic Concatenation Timeout
171
ABC Codabar Force Concatenation
171
Code 11
172
Code 11 Enable/Disable
172
Code 11 Check Character Calculation
173
Code 11 Check Character Transmission
173
Code 11 Minimum Reads
174
Code 11 Length Control
175
Code 11 Set Length 1
175
Code 11 Set Length 2
176
Code 11 Interdigit Ratio
177
Code 11 Decoding Level
179
Standard 2 of 5
180
Standard 2 of 5 Enable/Disable
180
Standard 2 of 5 Check Character Calculation
180
Standard 2 of 5 Check Character Transmission
181
Standard 2 of 5 Minimum Reads
181
Standard 2 of 5 Decoding Level
182
Standard 2 of 5 Length Control
182
Standard 2 of 5 Set Length 1
183
Standard 2 of 5 Set Length 2
184
Industrial 2 of 5
185
Industrial 2 of 5 Enable/Disable
185
Industrial 2 of 5 Check Character Calculation
185
Industrial 2 of 5 Check Character Transmission
186
Industrial 2 of 5 Length Control
186
Industrial 2 of 5 Set Length 1
187
Industrial 2 of 5 Set Length 2
188
Industrial 2 of 5 Minimum Reads
189
Iata
190
IATA Enable/Disable
190
IATA Check Character Transmission
190
Isbt 128
191
ISBT 128 Concatenation
191
ISBT 128 Concatenation Mode
191
ISBT 128 Dynamic Concatenation Timeout
192
ISBT 128 Force Concatenation
193
ISBT 128 Advanced Concatenation Options
193
Msi
194
MSI Enable/Disable
194
MSI Check Character Calculation
194
MSI Check Character Transmission
195
MSI Length Control
195
MSI Set Length 1
196
MSI Set Length 2
197
MSI Minimum Reads
198
MSI Decoding Level
199
Code 93
200
Code 93 Enable/Disable
200
Code 93 Check Character Calculation
200
Code 93 Check Character Transmission
201
Code 93 Length Control
201
Code 93 Set Length 1
202
Code 93 Set Length 2
203
Code 93 Minimum Reads
204
Code 93 Decoding Level
205
Code 93 Quiet Zones
206
Codablock F
207
Codablock F Enable/Disable
207
Codablock F EAN Enable/Disable
207
Codablock F AIM Check
208
Codablock F Length Control
208
Codablock F Set Length 1
209
Codablock F Set Length 2
210
Code 4
211
Code 4 Enable/Disable
211
Code 4 Check Character Transmission
211
Code 4 Hex to Decimal Conversion
212
Code 5
212
Code 5 Enable/Disable
212
Code 5 Check Character Transmission
213
Code 5 Hex to Decimal Conversion
213
Code 4 and Code 5 Common Configuration Items
214
Code 4 and 5 Decoding Level
214
Code 4 and Code 5 Minimum Reads
215
Follett 2 of 5
216
Follett 2 of 5 Enable/Disable
216
Bc412
216
BC412 Enable/Disable
216
BC412 Check Character Calculation
217
BC412 Minimum Reads
217
BC412 Decoding Level
218
BC412 Length Control
219
BC412 Set Length 1
219
BC412 Set Length 2
220
Plessey
221
Plessey Enable/Disable
221
Plessey Check Character Calculation
222
Plessey Check Character Transmission
223
Plessey Length Control
223
Plessey Set Length 1
224
Plessey Set Length 2
225
Plessey Minimum Reads
226
Plessey Decoding Level
227
References
229
Default Chapter
230
RS-232 Only
230
RS-232 Parameters
230
RS-232/USB COM Parameters
230
Baud Rate
230
Handshaking Control
230
Intercharacter Delay
230
Parity
230
Stop Bits
230
ACK Character
232
ACK NAK Options
232
NAK Character
233
ACK NAK Timeout Value
234
ACK NAK Retry Count
235
Disable Character
236
Enable Character
237
Keyboard Interface
238
Wedge Quiet Interval
238
Intercharacter Delay
239
Intercode Delay
240
Data Format
241
Data Editing
241
Global Prefix/Suffix
241
Global AIM ID
243
Label ID
244
Cobalto™ CO5300 Scanner
246
Character Conversion
248
Reading Parameters
249
Label Gone Timeout
249
Good Read LED Duration
250
Symbologies
251
Decoding Levels
251
Set Length 1
251
Set Length 2
253
Technical Specifications
255
Standard Cable Pinouts
257
LED and Speaker Indications
258
Error Codes
259
Standard Defaults
261
Default Exceptions
271
Sample Bar Codes
275
1D Bar Codes
275
GS1 Databar (RSS)
277
GS1 Databar-14
277
Keypad
279
Scancode Tables
283
Control Character Emulation
283
Interface Type PC at PS/2 or USB-Keyboard
284
Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode
286
Microsoft Windows Codepage 1252
288
Index
289
ASCII Chart
291
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Datalogic Cobalto C05300 and is the answer not in the manual?
Ask a question
Datalogic Cobalto C05300 Specifications
General
Brand
Datalogic
Model
Cobalto C05300
Category
Barcode Reader
Language
English
Related product manuals
Datalogic Cobalto CO5300
40 pages
Datalogic CODiScan HS7600
328 pages
Datalogic CBX800
35 pages
Datalogic PowerScan CM9630
28 pages
Datalogic GRYPHON
192 pages
Datalogic Magellan 2200VS
432 pages
Datalogic PowerScan M8300
245 pages
Datalogic QuickScan QD2430
48 pages
Datalogic Gryphon I GBT4400
332 pages
Datalogic Gryphon I GFS4400
324 pages
Datalogic Gryphon I GBT4400 2D
64 pages
Datalogic QuickScan Lite QW2100
324 pages
Need help?
General
To Next Page
