Chapter 2
Setup
Unpacking
Check carefully to ensure the scanner and any cables or accessories ordered are present and
undamaged. If any damage occurred during shipment, contact
Technical Support on page 4.
KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original
shipping container.
Setting Up the Scanner
Follow the steps provided in this section to connect and get your scanner up and
communicating with its host:
1. Connect the Interface Cable at the scanner as shown in Figure 1. To disconnect the cable,
insert a paper clip or similar object into the opening shown (item #3).
2. Connect the other end to the Host (see the next section, Connect Host Interface and Figure 2).
3. Modify Customizing Configuration Settings on page 11 (only if modifications are needed
from factory settings).

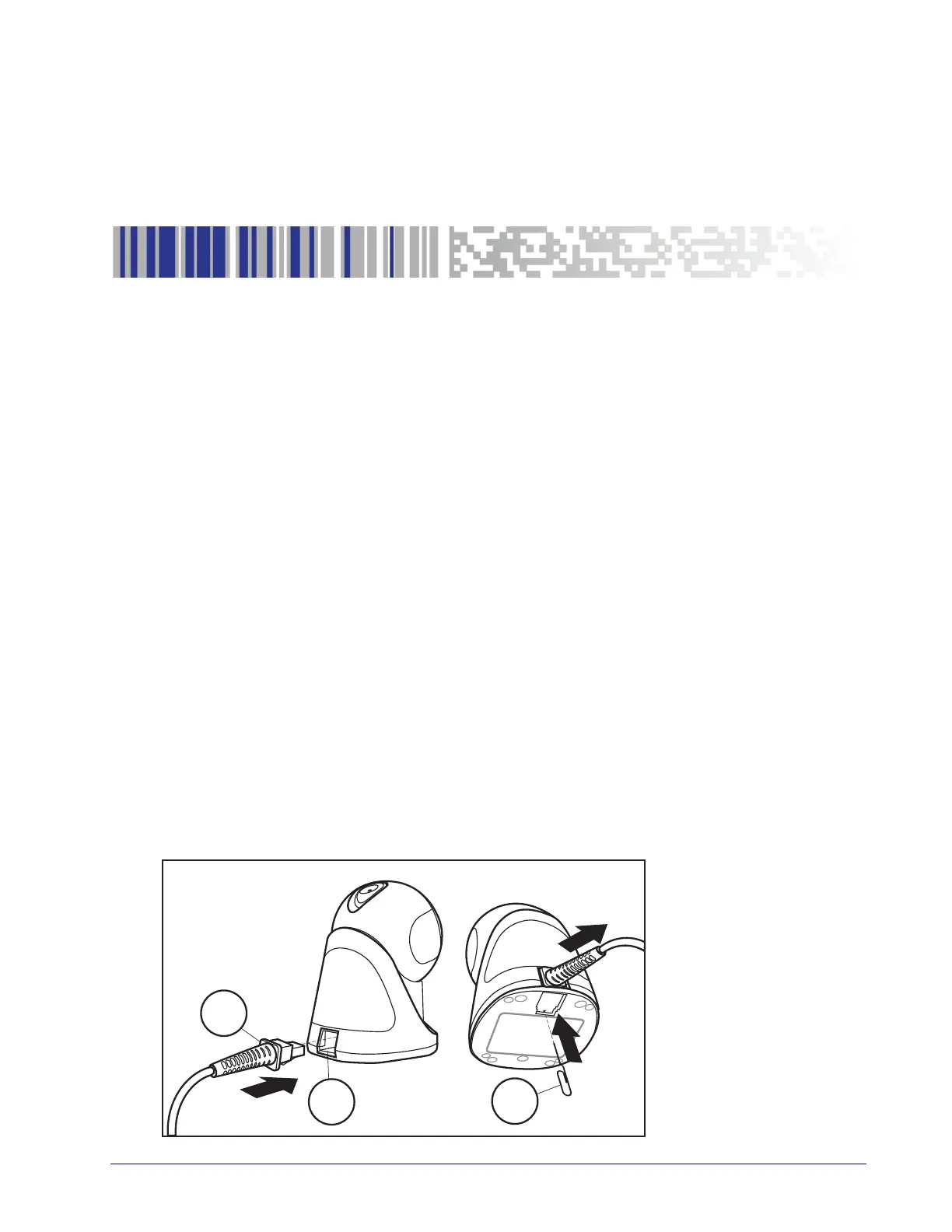

Figure 1. Cable Connection/Disconnection at the Scanner
r
1
2
3
1
Cable Connector
2
Interface / Power Port
3
Paper clip
