Cobalto™ CO5300 Scanner
Label ID: Set Individually Per Symbology
To configure a Label ID individually for a single symbology:
1. Scan the ENTER/EXIT bar code.
2. Select Label ID position as either BEFORE (En
able as Prefix) or AFTER (Enable as suffix)
by scanning the appropriate bar code in the section
"Label ID Control" on page 49
. Reference
Figure 6
for Label ID positioning options if multiple identification features are enabled.
3. Scan a bar code to select the symbology for w
hich you wish to configure a custom Label
ID from the section
Label ID Symbology Selection, starting on page 50
.
4. Determine the desired character(s) (you may choose up to three) which will represent the
Labe
l ID for the selected symbology.
5. Turn to the
ASCII Chart
on the inside back cover of this manual and find the equivalent hex
digits associated with your choice of Label ID. For
example, if you wish to select an equal
sign (=) as a Label ID, the chart indicates its associated hex characters as 3D. Turn to
Keypad, starting on page 267
and scan the bar codes representing the hex characters deter-
mined. For the example given, the characters ‘
3’ and ‘D’ would be scanned. More exam-
ples of Label ID settings are provided in
Table 17
.
NOTE
If you make a mistake before the last character, scan the CANCEL bar code to
abort and not save the entry string. You can then start again at the begin-
ning.
6. Scan the ENTER/EXIT bar code to exit Label ID entry.
7. Scan the ENTER/EXIT bar code once again
to exit Programming Mode.
This completes the steps to configure a Label ID for a given symbology.

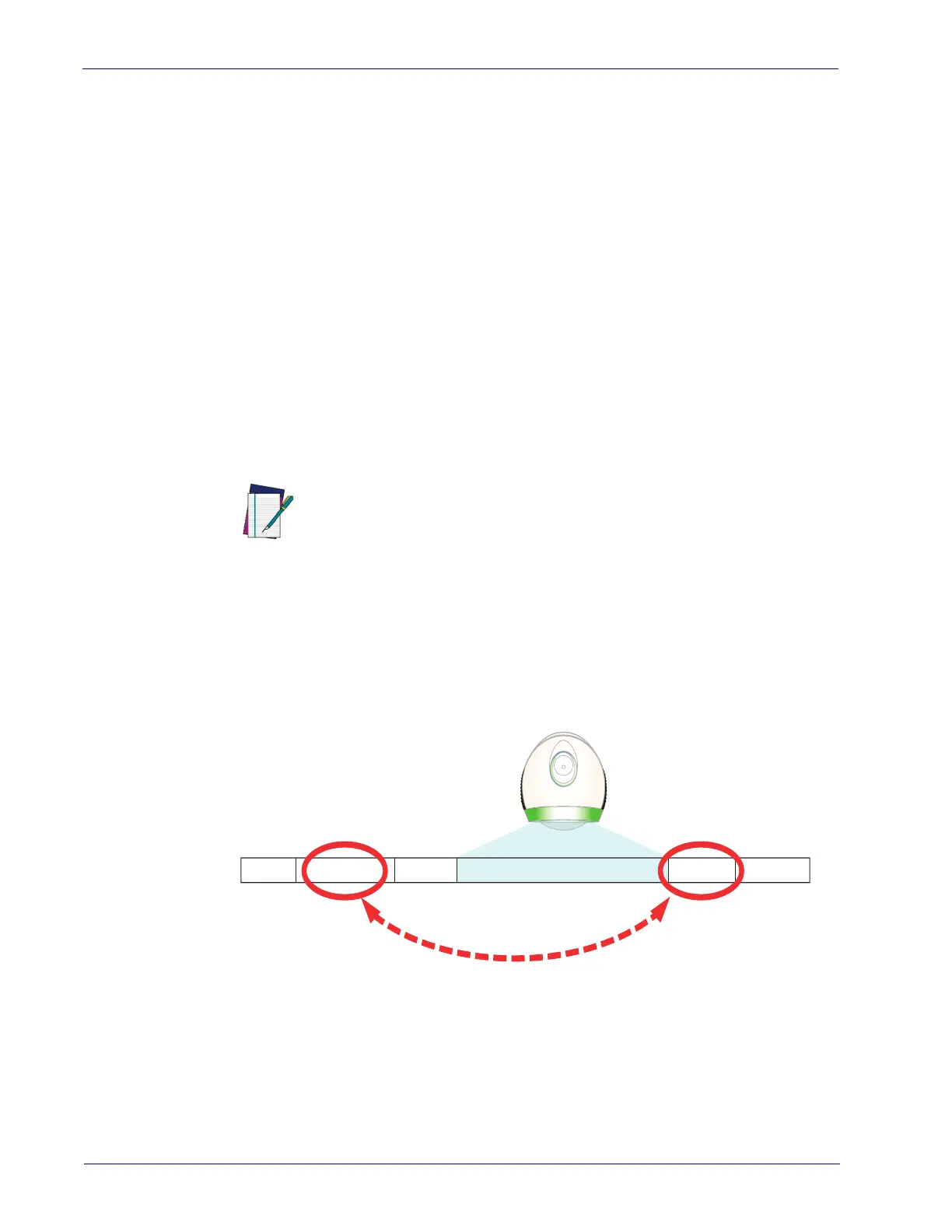

Figure 6. Label ID Position Options
OR
Prex SuxLabel ID Label IDBar Code DataAim ID
To Next Page
