Standard Cable Pinouts
Product Reference Guide 245
Standard Cable Pinouts

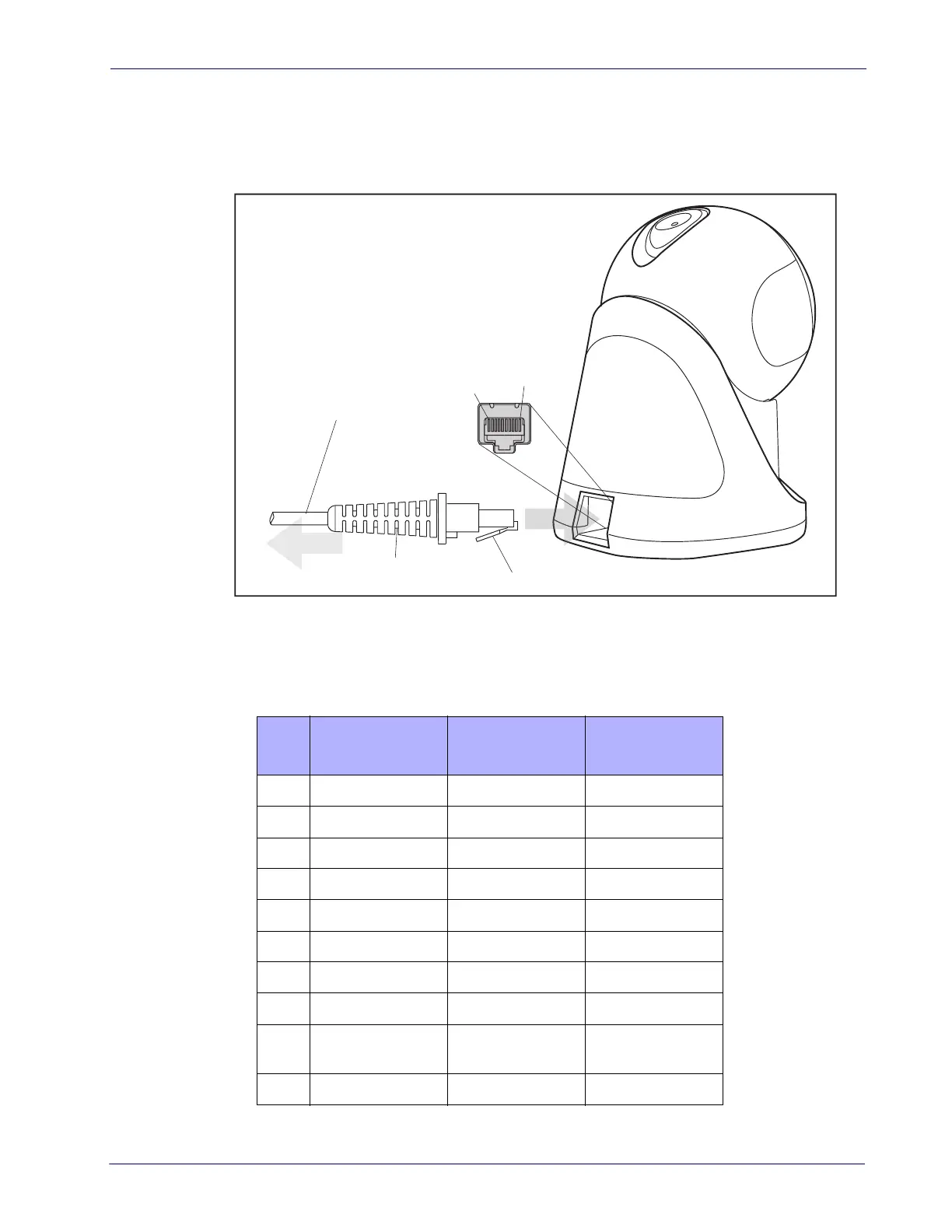

Figure 7 and Table 23 provide standard pinout information for the scanner’s cable.
Figure 7. Standard Cable Pinouts
The signal descriptions in Table 23 apply to the connector on the scanner and are for reference
only.
Table 23. Standard Cable Pinouts — Scanner Side
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Interface Cable Port
Pin 1
Pin 10
Pin RS-232 USB
Keyboard
Wedge
1RTS (out)
2 D+ CLKIN (KBD side)
3D-DATAIN (KBD side)
4 GND GND GND
5RX
6TX
7VCC VCC VCC
8CLKOUT (PC side)
9
DATAOUT (PC
side)
10 CTS (in)
