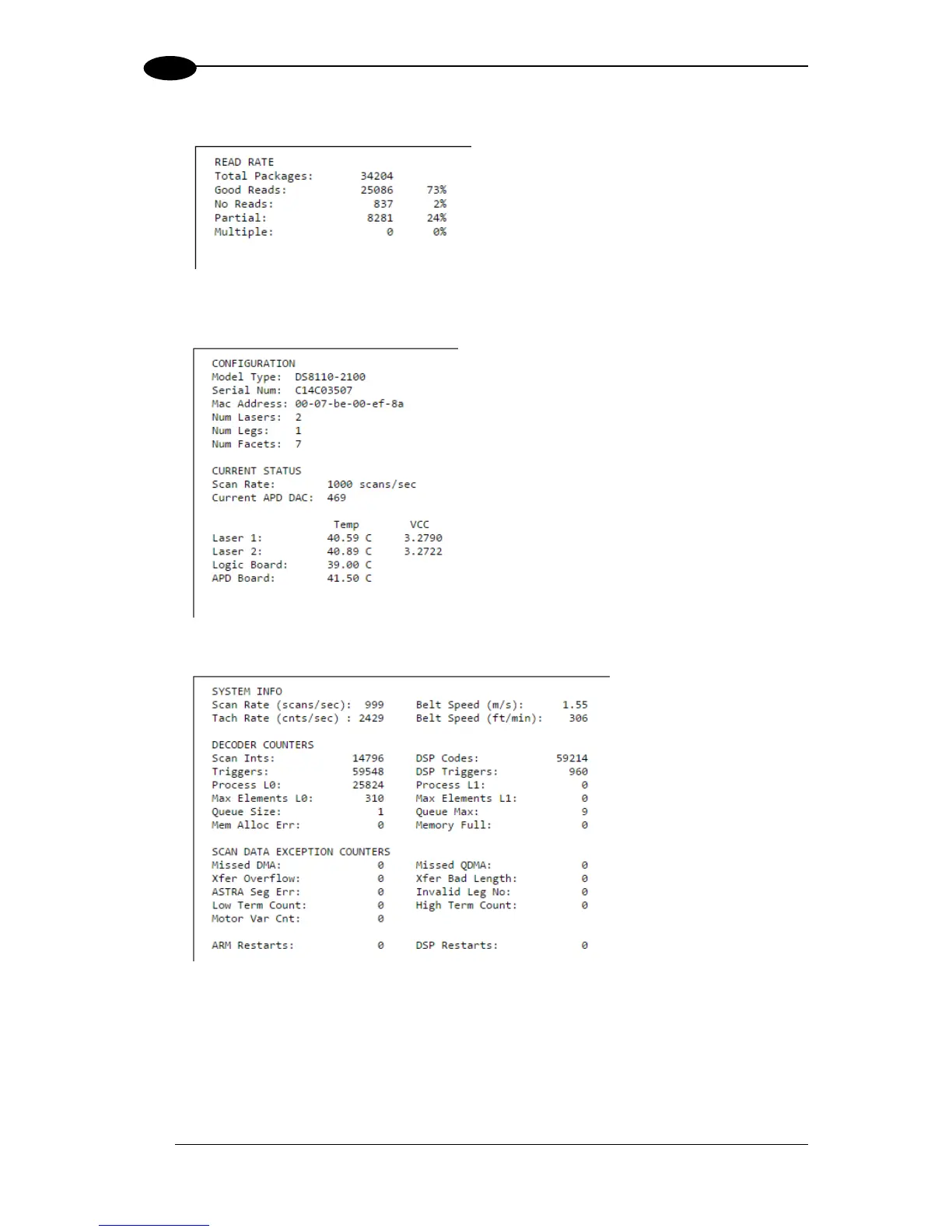

DS8110 REFERENCE
MANUAL
180
4
Read Rate
: displ
ays read rate and
package count informa
tion.
H/W
Info:
displays
information
about
the
selected
hardware,
including
model,
serial
number, scans/se
cond, laser information,
and more.
Counters:
displ
ays cumulativ
e data about scans, triggers, er
rors, and much mo
re.
191
193
Table of Contents
Default Chapter
3
Default Chapter
3
Table of Contents
3
References
7
Reference Documentation
7
Support through the Website
7
Patents
7
Conventions
8
Compliance
8
Electrical Safety
8
Laser Safety
8
Bureau of Indian Standard (BIS)
8
Warning and Serial Labels
9
Power Supply
10
CSA Certified
10
CE Compliance
10
FCC Compliance
11
General View
12
1 Introduction
13
Product Description
13
Applications
13
Model Description
15
DS8110 Versions
15
X-PRESS (Human Machine Interface)
16
Accessories
17
Photoelectric Sensor
19
Encoder (Tachometer)
20
Encoder/Tachometer Step Settings
20
Photocraft Encoder/Tachometer Switch Setting
21
CBX Industrial Connection Box
22
SC5000 System Controller
23
2 Mechanical Installation
24
Preparing for Mechanical Installation
24
Unpacking Instructions
25
Installation Sequence
26
What You Need to Know about Your Application
27
Installation
28
Dimensions and Clearances
28
Physical Support Requirements
28
Vibration Limitations
28
General Mounting Guidelines
29
Mounting Structure Considerations
30
Mounting the Scanner
31
Positioning the Scanners
34
3 Electrical Installation
35
Preparing for Electrical Installation
35
Connecting a DS8110 Scanner
36
Typical Connection Block Diagrams
37
Single DS8110 Barcode Scanner to CBX510
37
Master/Slave Array with CBX510
38
DS8110 Barcode Scanners in an Array with SC5000 Master
39
General Electrical Installation Guidelines and Precautions
41
DS8110 Connector Panels
42
Connecting a PC to the DS8110
43
Power Connector Pin-Out Table
44
Power Connections
44
CBX510 Connection Box
45
Wiring into the CBX510 Connection Box
45
Main Serial Interface
46
RS232 Interface
46
RS422 Full-Duplex Interface
47
Photoelectric Sensor Connections to CBX510
48
Photoelectric Sensor (NPN)
49
Photoelectric Sensor (PNP)
50
Tachometer Wiring to CBX510
51
Encoder/Tachometer Wiring for NPN Output (Two Models)
51
Encoder/Tachometer Wiring for PNP Output (Two Models)
53
Digital Output Configuration to CBX510
55
Unpowered Outputs
55
Powered Outputs
56
Connecting to the SC5000 System Controller (Optional)
57
Grounding
58
Check Scanner Installation
59
4 Genius
60
Getting Started
60
Prerequisites
60
Starting E-Genius
61
E-Genius Basics
63
E-Genius Menu Tree
63
Entering Text Using the Text Entry Tool
63
Update and Reset Buttons
64
Getting Help
64
Modify Settings
66
Modify Settings | System Info
67
Modify Settings | Global Settings
70
Modify Settings | Global Settings | Operating Mode
71
Modify Settings | Global Settings | Barcode Settings Table
85
Modify Settings | Global Settings | Barcode Configuration
90
Strip Filter Settings
94
Strip Filter Settings
100
Strip Filter Settings
117
Modify Settings | Global Settings | Serial Ports
118
Modify Settings | Global Settings | Ethernet
122
User Socket N
125
Modify Settings | Global Settings | Fieldbus
133
Modify Settings | Global Settings | Messaging
138
Modify Settings | Global Settings | Digital I/O
167
Modify Settings | Global Settings | Diagnostics
170
Modify Settings | Global Settings | Energy Saving
172
Modify Settings | Global Settings | HMI Settings (Human-Machine Interface)
177
Device Settings
179
Device Settings | Device Name | Device Info
180
Device Settings | Device Name | Mounting
182
Device Settings | Device Name | Options
184
Diagnostics
187
Diagnostics | Monitor
188
Diagnostics | Read Test
190
Diagnostics | Status Viewer
191
Utilities
194
Utilities | Backup or Restore
194
Utilities | Reboot
196
Utilities | Update Firmware
197
Utilities | Help
199
5 Barcode Scanning Features
200
First-Time Startup
200
Default Parameters
200
Check Operations Using Test Mode
200
Basic Installation Procedures with the CBX510
202
Basic Installation with SC5000 Controller
205
LED Indicators
209
Control Panel Buttons
210
X-PRESS™ Human Machine Interface
210
X-PRESS Functions
210
Test Mode
212
Learn
212
Setup
212
Netconfig
213
Restore Button and Other Functions
213
Packtrack
214
Using the Packtrack Wizard
215
Top-Mounted Barcode Scanner Calibration Using Packtrack
219
Side-Mounted Barcode Scanner Calibration Using Packtrack
225
Bottom-Mounted Barcode Scanner Calibration Using Packtrack
232
Verifying Packtrack Calibration
233
Replacing an Installed DS8110
235
Replacing a Standalone Scanner Using Restore
235
Replacing a Slave Scanner in an Array/Tunnel Automatically
236
Replacing a Slave Scanner in an Array/Tunnel Using Restore
237
Replacing a Master Scanner in an Array/Tunnel Using Restore
237
Checking the Operation of the Replacement
238
Typical Layouts
239
Large Synchronized Network Layout
239
Advanced Code Reconstruction (ACR™)
243
Tilt Angle for Advanced Code Reconstruction
243
Minimum Code Height for Advanced Code Reconstruction
245
Reading Diagram
247
DS8110-2100 - Standard Resolution
248
DS8110-2200 - High Resolution
252
DS8110-2300 - Low Resolution
257
6 Maintenance
258
Overview
258
Maintenance Tasks
259
Cleaning the Exit Window
260
Cleaning the Photoelectric Sensor
261
Cleaning the Tachometer
262
Tighten Mounting Hardware
263
Checking Barcode Scanning System Connections
263
Verify Barcode Scanner Operation
263
Verify Photoelectric Sensor Operation
263
Verify Tachometer Operation
264
7 Troubleshooting
265
LED Diagnostic Indication
266
Error Codes and Resolutions
267
8 Technical Features
273
Technical Specifications
273
Glossary
276
Index
279
