1.8 ENCODER (TACHOMETER)
The tachometer provides a continuous pulse to the system, which provides feedback on
conveyor speed and transmit point, and can be used to help track the package position along
the length of the conveyor. See section 3.12 for wiring options.

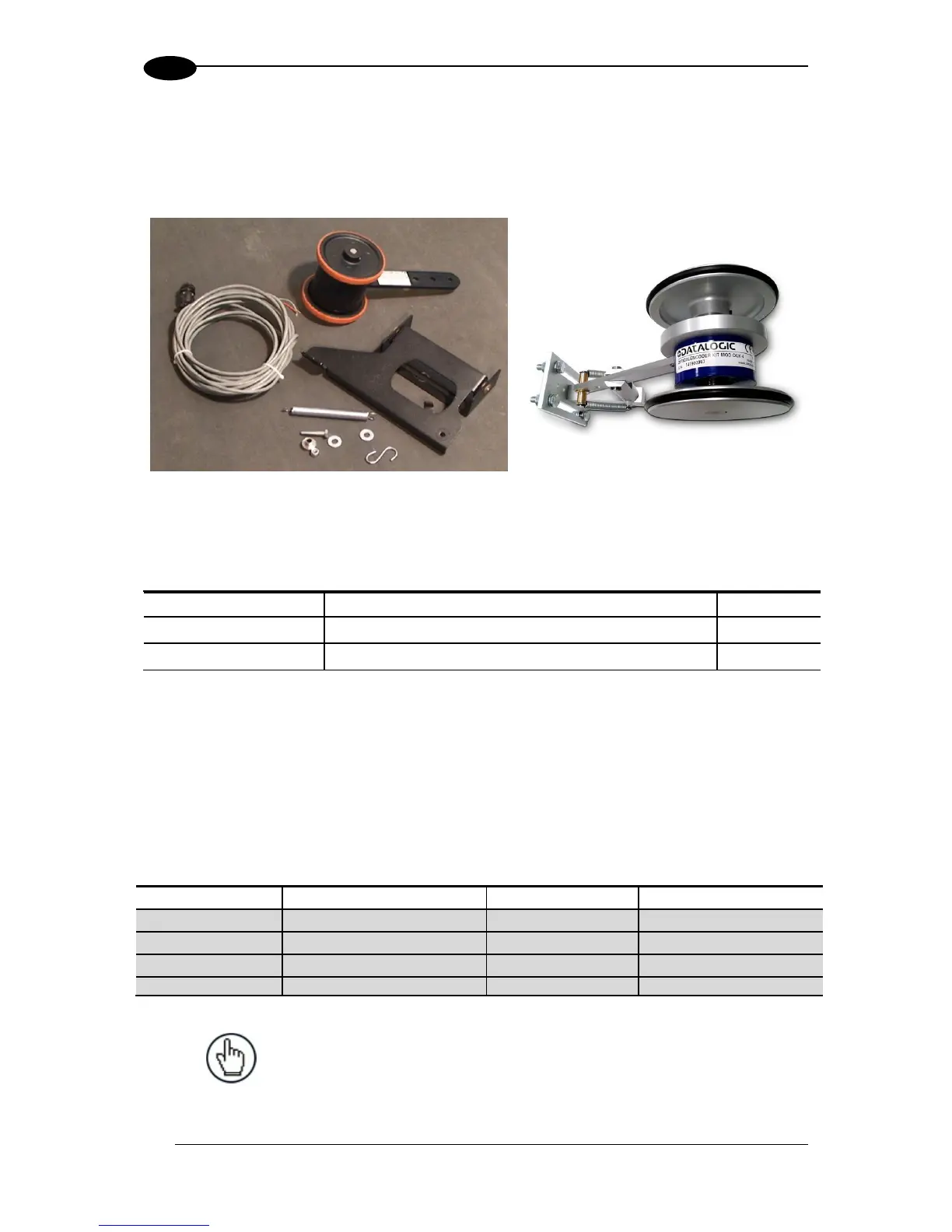

Figure 8: Encoder/Tachometer, Mounting Bracket, and Cable
1.8.1 Encoder/Tachometer Step Settings
The following table shows the Encoder Step setting used based on pulses per revolution.
The Encoder Step setting is entered in e-Genius (see section 4.5.1 Modify Settings |
Global Settings | Operating Mode – Encoder Step (hundredths of millimeter))
Encoder (Tachometer)
OEK-2 ENCOD KIT
OEK-2 ENC KIT (CAB 10m +SPRING)
93ACC1770
OEK-4 ENCOD KIT
OEK-4 ENC KIT PNP 250PPR + M12-M12 CABLE
95B082040
OEK-4 ENCOD KIT
OEK-4 ENC KIT PNP 250PPR + M12-FREE CABLE
95B082050
Encoder Model
PPR
(Pulses Per Revolution)
PPI
(Pulses Per Inch)
Encoder Step Setting
OEK-4 (Datalogic)
250
20
63
OEK-2 (Photocraft)
24
2
635
OEK-2
48
4
317
OEK-2
192
16
79
OEK-2
240
20
63
NOTE: The maximum allowed encoder frequency is 5 kHz (equivalent to
an encoder set to 20 PPI with a conveyor speed of 381 m [1250 ft.]
/minute.
