Datalogic DS8110 User Manual

ELECTRICAL INSTALLATION
43
3
3.13 DIGITAL OUTPUT CONFIGURATION TO CBX510
The CBX510 includes an OUTPUT block for wiring relays as needed for external
accessories. The e-Genius Modify Settings | Digital I/O window includes options for
outputs 1 and 2 with Primary and Secondary Activation Event options including Complete
Read, Partial Read, No Read, Trigger On, Trigger Off, Multiple Read, Right/Match, and
Wrong/No Match.
Schematics for Isolated and Non-Isolated digital outputs are provided below.
3.13.1 Unpowered Outputs

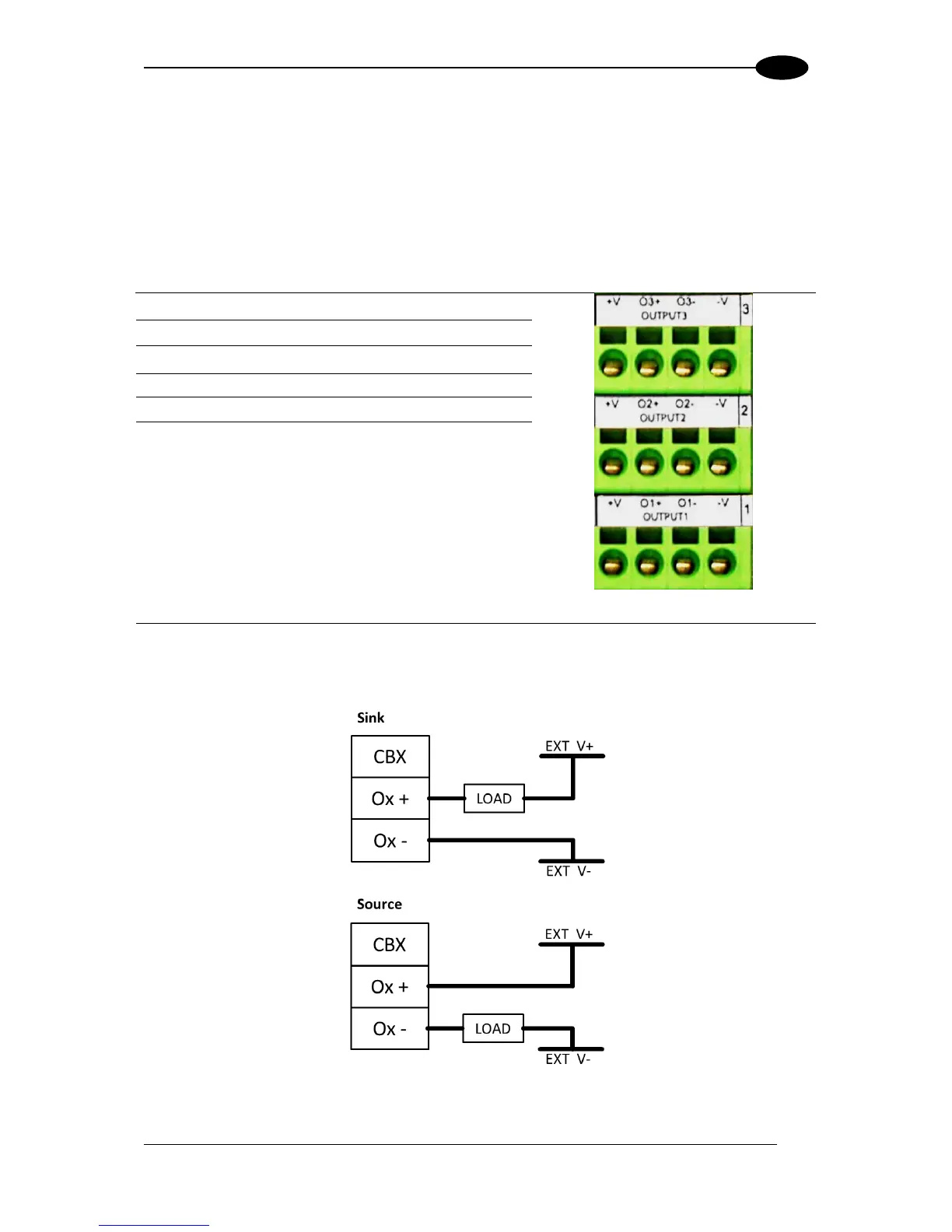

Figure 39: Unpowered Outputs
Outputs 1 - 3
Figure 38: OUTPUTS Block
Maximum Voltage 30 V
Collector Current (pulse) 130 mA Max.
Collector Current (continuous) 40 mA Max.
Saturation Voltage (VCE) 1 V at 10 mA Max.
Maximum Power Dissipation 90 mW at 50°C (Ambient
temperature)
NPN
PNP
