5.6.4 Bottom-Mounted Barcode Scanner Calibration Using PackTrack

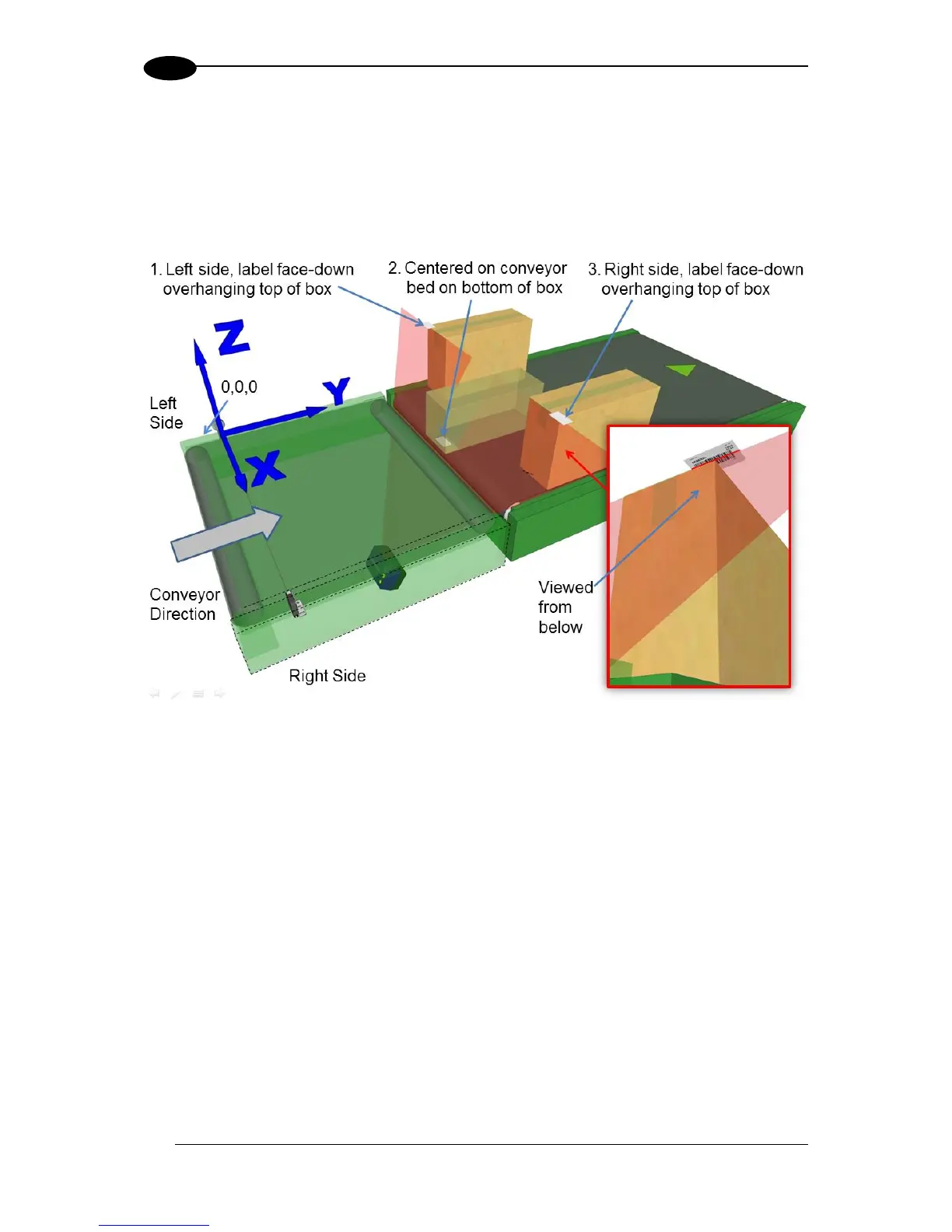

When using the PackTrack wizard to calibrate a bottom read scanner, three barcode
positions are still needed for accurate calibration. For the left and right sides of the conveyor,
place a barcode label face-down, overhanging the corner of a typical box for your application,
as shown below. Place another barcode label on the bottom of a box and place the code
along the laser beam in the center of the conveyor bed, as shown in the illustration below.
As with the top and side-read examples in this section, input the X, Y, and Z coordinates for
each code in the PackTrack wizard.
