6. Apply power to the system.
7. Once the scanner has booted up and the READY LED lights solid green, press and hold
the RESTORE button until all of the LEDs turn on, indicating that the parameters are
being restored from the CBX510’s BM100 backup module.
8. Release the RESTORE button. The green READY LED should come back on.
5.7.2 Replacing a Slave Scanner in an Array/Tunnel Automatically
e-Genius provides an option for automatically replacing a slave scanner in a tunnel when the

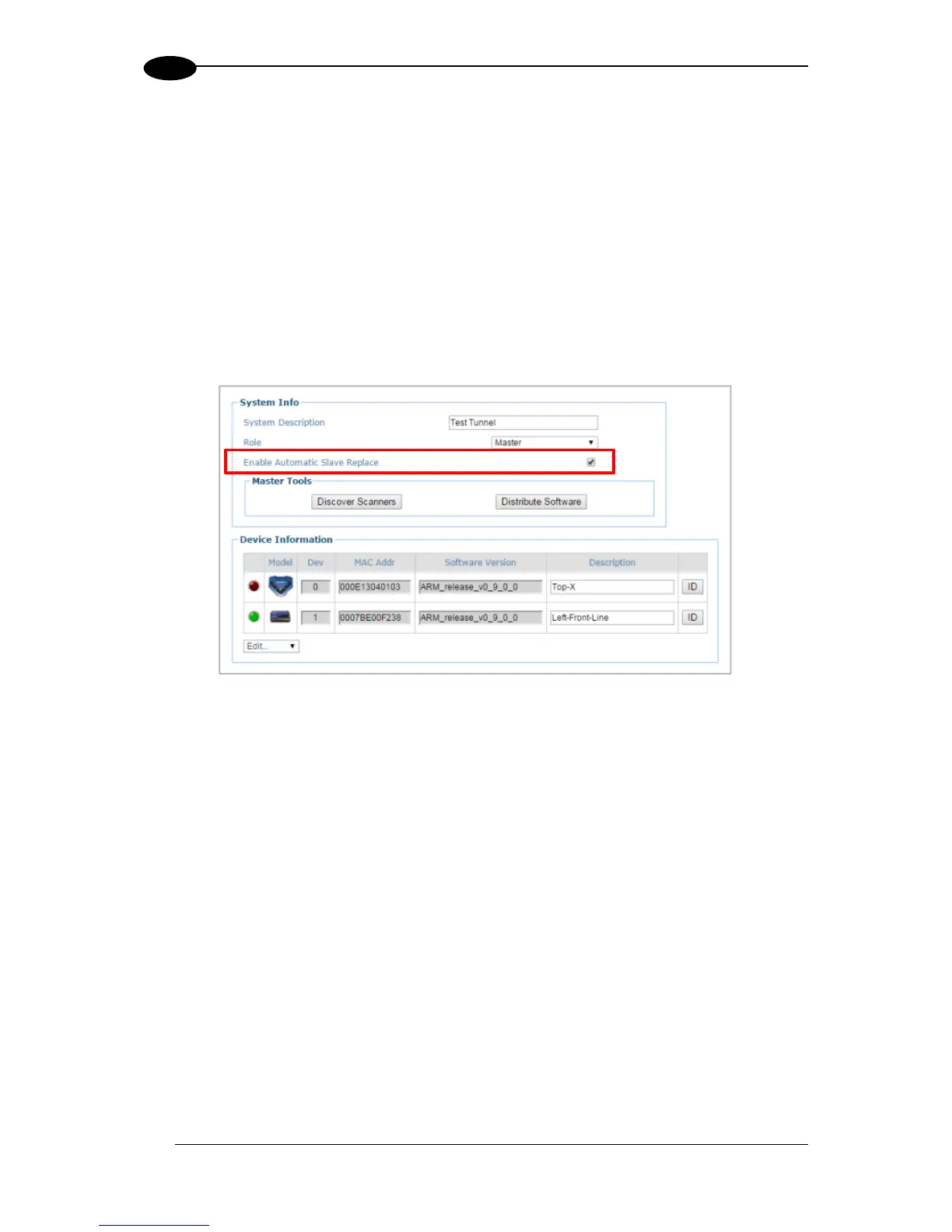

system is configured. To enable this option in e-Genius, select Modify Setting/System Info
from the e-Genius menu tree. The System Info window opens.
Select the Enable Automatic Slave Replacement check box, click Update, and save the
system parameters as described in sections 4.8.1, 5.2 and 5.3.
If the Enable Automatic Slave Replacement check box has been selected and saved in the
system parameters, use the following procedure to replace a slave scanner:
1. Remove power from the array.
2. Remove the power and I/O cables from the scanner being replaced.
3. Label the cables attached to ETH1 and/or ETH2 so you can easily identify where they
were connected, then remove the cables.
4. Detach the existing scanner from its mounting bracket, leaving the bracket attached to
the mounting structure.
5. Attach the replacement scanner to the mounting bracket.
6. Reattach the power, I/O, ETH1 and/or ETH2 cables.
7. Apply power to the array. The system will automatically find and download system
parameters to the replacement scanner.
