3.3.3 DS8110 Barcode Scanners in an Array with SC5000 Master
In an array (tunnel) using the SC5000 Controller, the chain of scanners completes a circle
from and to the SC5000 Controller via ETH1 and ETH2. In this scenario, if one scanner fails,
communication from the other scanners to the SC5000 Controller is not interrupted.

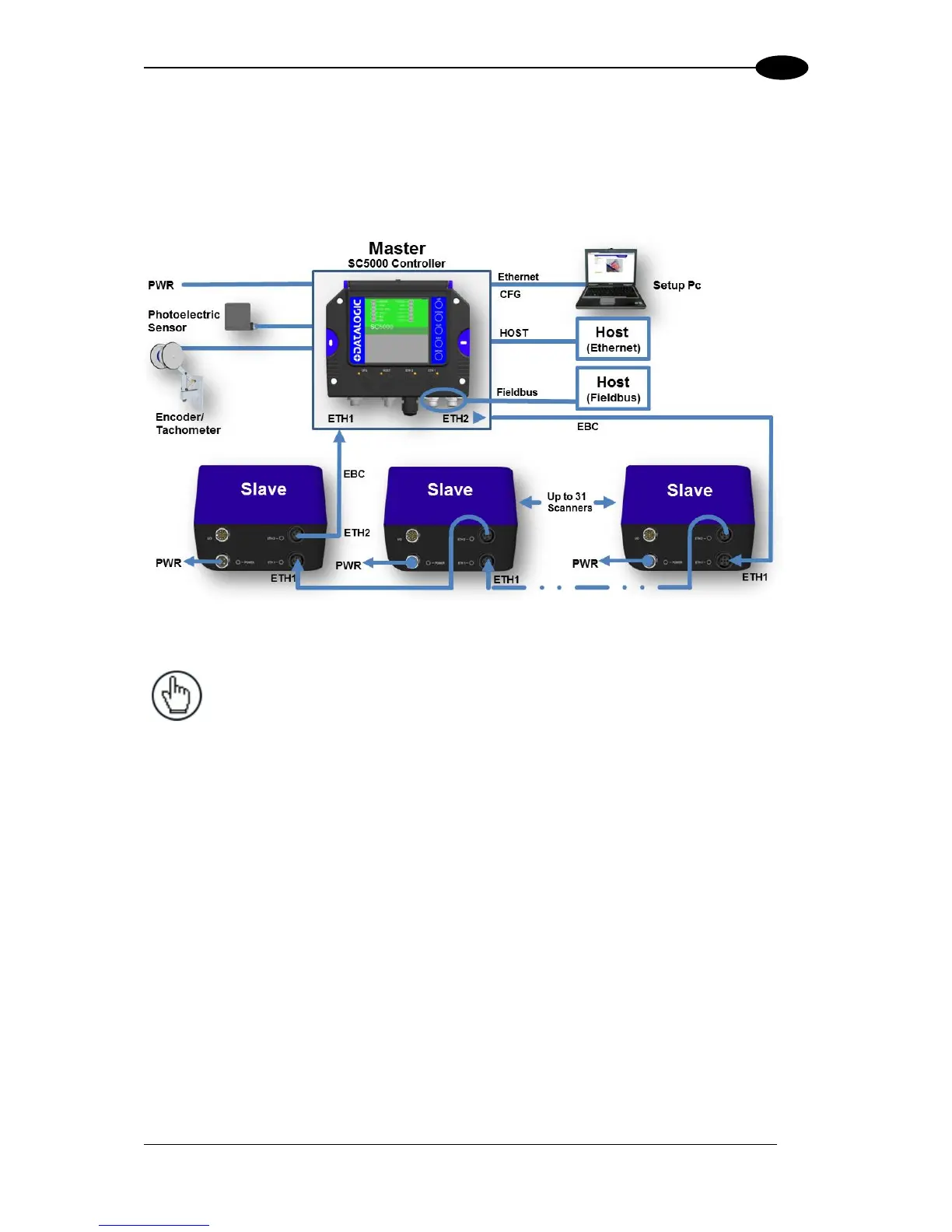

Figure 24: DS8110 Array (Tunnel) with SC5000
NOTE: When using the SC5000, a Fieldbus Host only connects to the
SC5000 Fieldbus model (Profinet or Profibus) at the connectors shown. It
cannot connect to the CBX.
An Ethernet Host connects to the HOST connector on the SC5000 top
cover. A Serial Host must connect through the CBX (see Figure 25).
