BARCODE SCANNING FEATURES
197
5
5.4 LED INDICATORS
The DS8110 barcode scanners have several tube LEDs spanning the top and front panel.

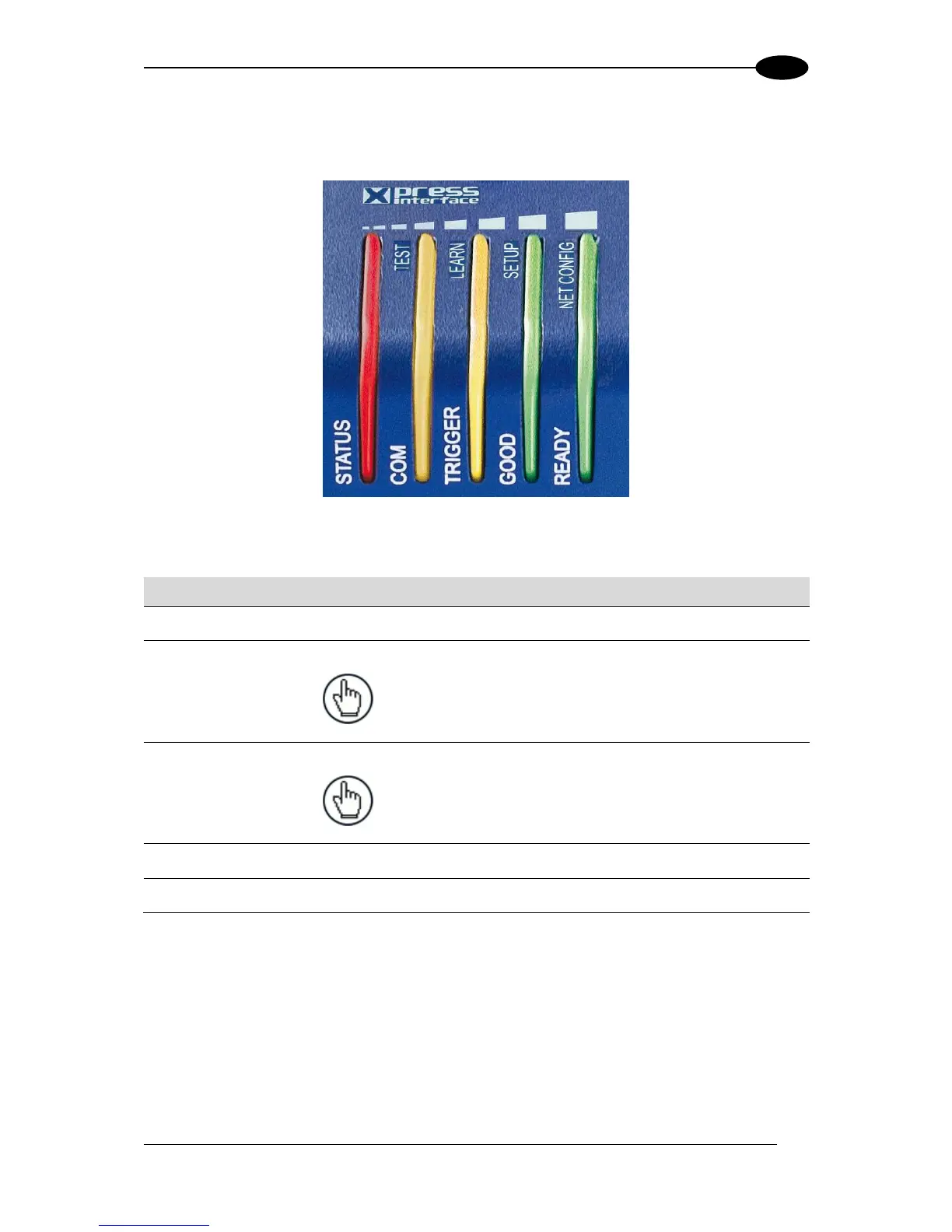

Figure 45: LED Indicators
The indicators have the following meanings:
For alternate functions, see 5.5.1 X-Press™ Human Machine Interface below.
LED
Description
STATUS
Flashes RED on a NO READ
COM / TEST
Flashes YELLOW to indicate data transmitting from main serial port.
NOTE: When operation mode is set to PackTrack (see
section 4.5.1, these LEDs are inactive on slave scanners.
TRIGGER / LEARN
Flashes YELLOW to indicate an active external presence sensor.
NOTE: When operation mode is set to PackTrack (see
section 4.5.1), these LEDs are inactive on slave scanners.
GOOD / SETUP
Flashes GREEN to indicate a barcode was successfully read.
READY / NETCONFIG
Solid GREEN indicates the device is ready to operate.
