5.6.5 Verifying PackTrack Calibration
1. In the menu tree, navigate to Diagnostics/Read Test. The Read Test window opens.
2. Place a barcode anywhere in the scanner's laser beam other than where you placed the
labels for calibration.
3. Click Start Test. The system runs a test to identify the location of the barcode within the
read area and displays the results in the Read Test window.
4. Physically Measure the X (from left edge), Y (From PS), and Z (code height) coordinates of your
test barcode, and compare your measured results to the Read Test results. Your
measured results and those displayed should be close (within a few millimeters) but do
not need to be exact.

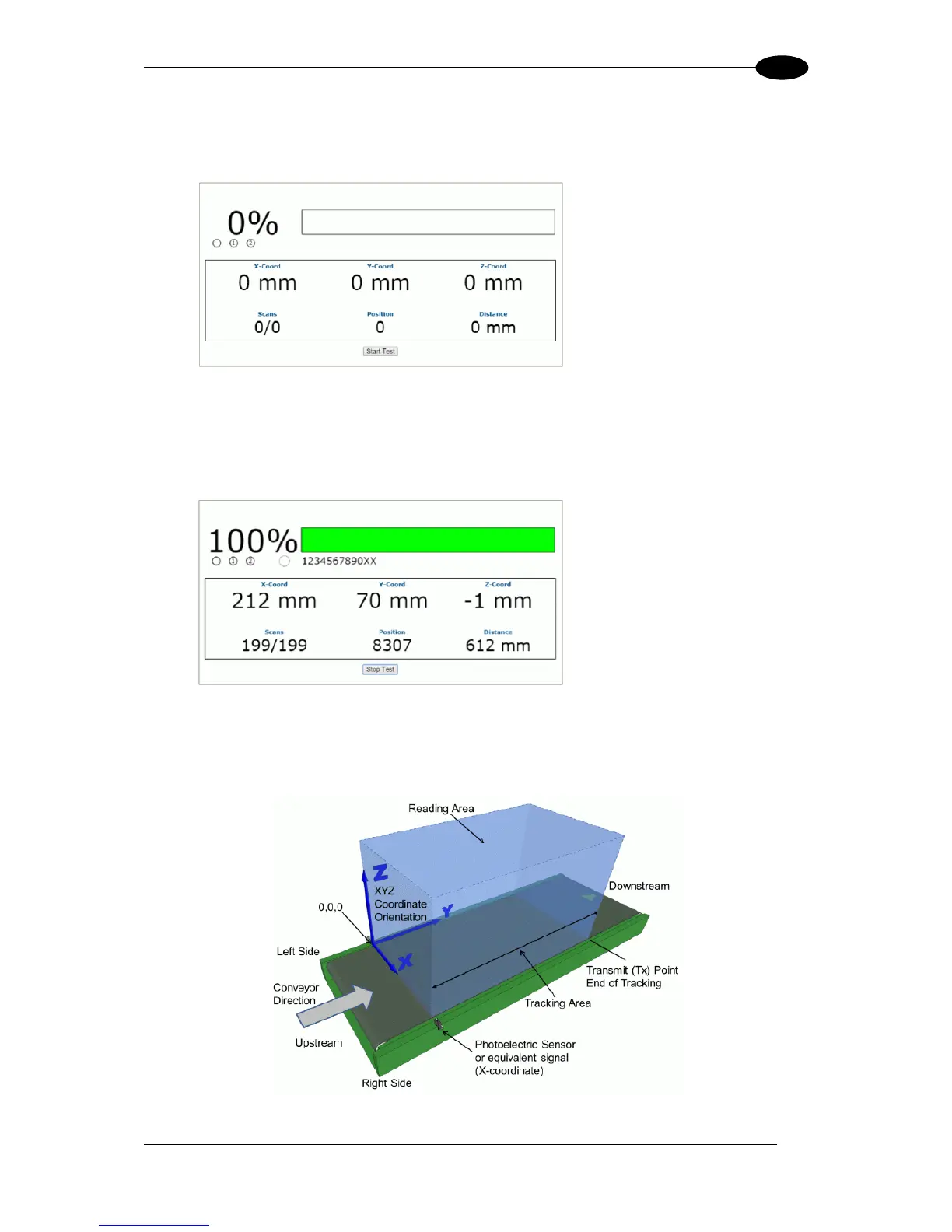

Figure 57: Tracking Area
