3.3 TYPICAL CONNECTION BLOCK DIAGRAMS
3.3.1 Single DS8110 Barcode Scanner to CBX510

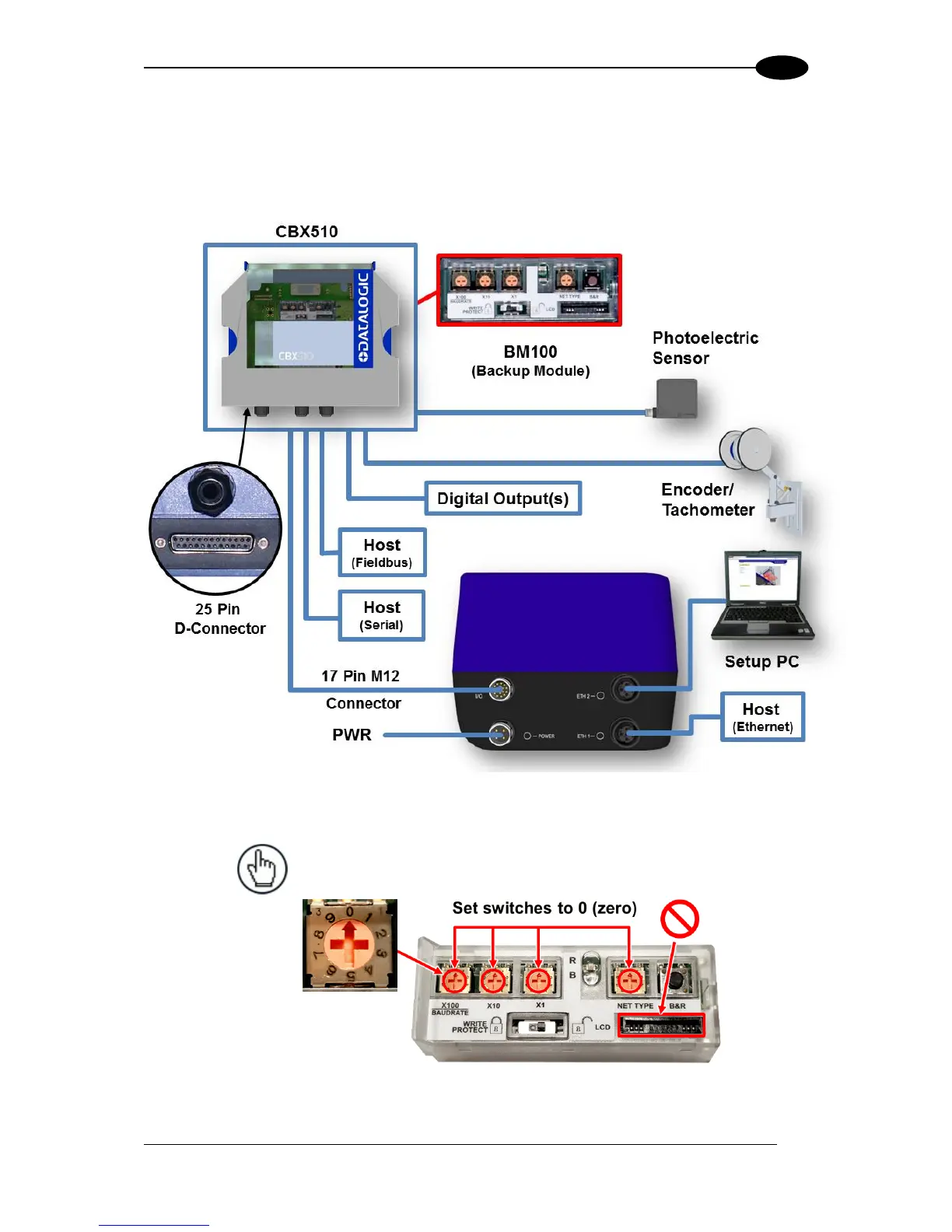

Figure 20: Single DS8110 to CBX510
NOTE: The BM100 switches indicated below must be set to 0
(zero), and the connector indicated is not supported.
Figure 21: BM100 Backup Module in CBX510
