TEST MODE
Once entered, the five LEDs are activated and if the scanner starts reading barcodes. The
LEDs indicate the read rate percentage. In case of a NO READ condition, only the Status
LED is on and blinks.

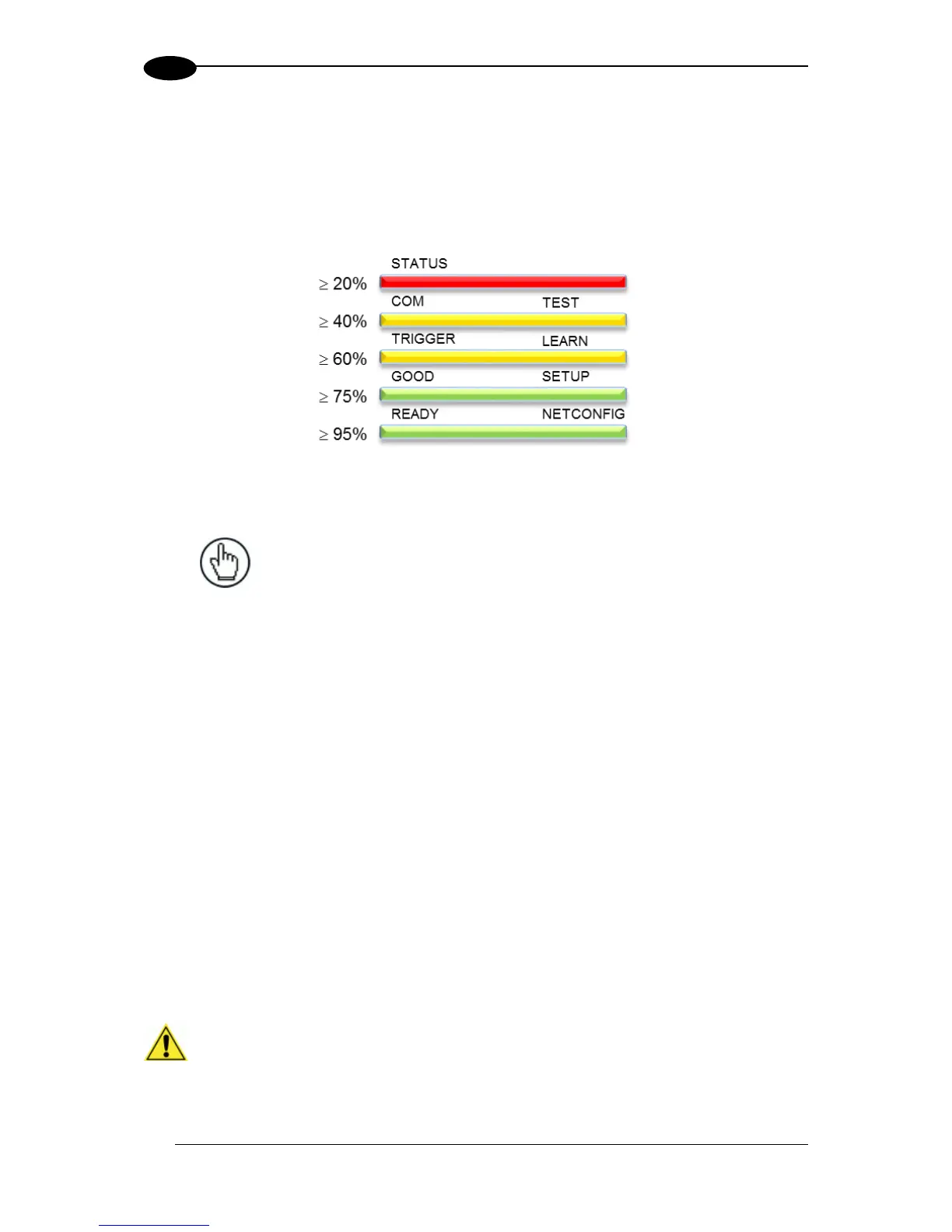

The LEDs indicate the read rate percentage as follows:
To exit the Test Mode, press the X-PRESS push button once.
LEARN
Once entered, the LEARN LED blinks and scanner starts a procedure to automatically detect
and recognize barcodes, which are presented to it.
Place a barcode into the scan line and the LEARN LED goes solid for a short time as
Processing and Decoding parameters are successfully saved.
If the calibration cannot be reached after a timeout of about 3 (three) minutes, the scanner
will exit Learn Mode without saving the parameters.
SETUP
This mode is available in a master/slave system (scanner as master, not an SC5000.)
This option applies to the last slave scanner in the daisy-chain system, allowing its open
Ethernet port to work as a dedicated setup port.
In practice, you can always communicate using this port, but the Setup Mode turns off all of
the other EBC traffic on that port.
