5.5 CONTROL PANEL BUTTONS

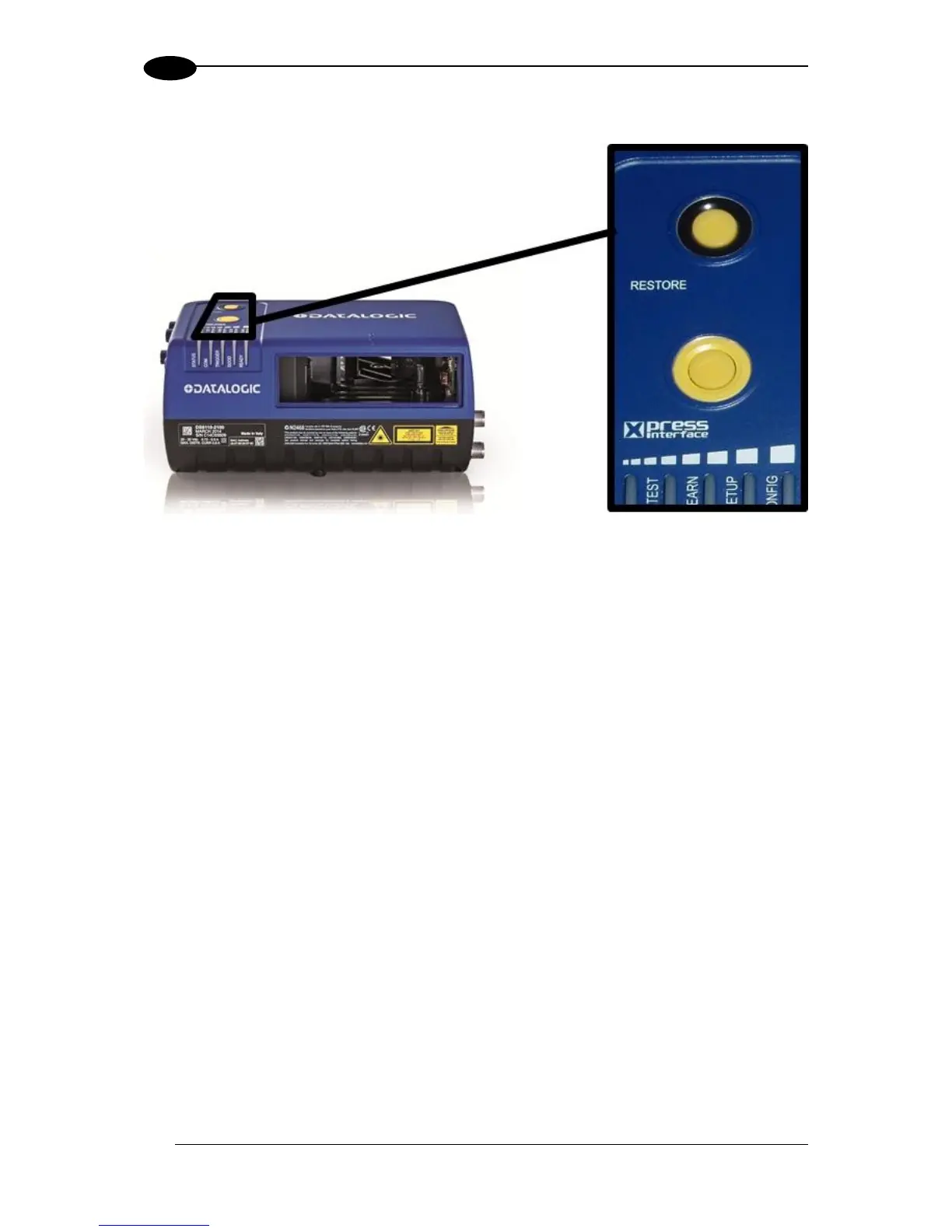

Figure 46: Control Panel Buttons
5.5.1 X-PRESS™ Human Machine Interface
X-Press is the intuitive Human Machine Interface designed to improve ease of installation
and maintenance.
Status information is clearly presented by means of the five colored LEDs, whereas the
single push button gives immediate access to the following relevant functions:
TEST with bar graph visualization to check static reading performance
LEARN to self-detect and auto-configure for reading unknown codes
SETUP to allow the open Ethernet port in the last slave scanner in a Master/Slave
system to work as a dedicated setup port
NETCONFIG to locate and configure slave scanners in a array (tunnel)
X-PRESS FUNCTIONS
Quick access to the following functions is provided by an easy procedure using the push
button:
1. Press the button (the Status LED will give a visual feedback).
2. Hold the button until the specific function LED is on (TEST, LEARN, SETUP, or
NETCONFIG).
3. Release the button to enter the specific function.
