BARCODE SCANNING FEATURES
5.9 ADVANCED CODE RECONSTRUCTION (ACR™)

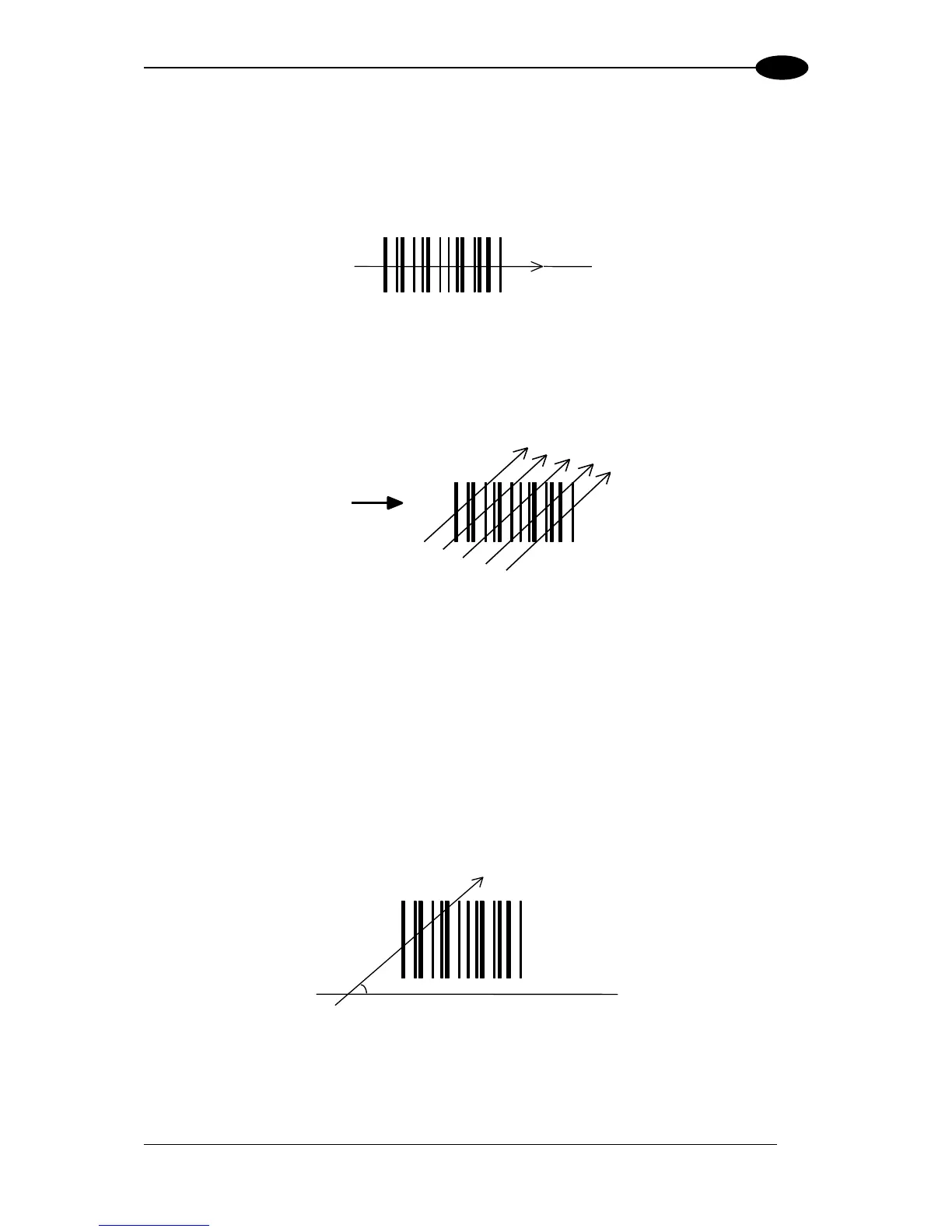

The traditional way of barcode reading could be called “Linear Reading”. In this case, the
laser beam crosses the barcode symbol from its beginning to its end as shown in the
following figure:
Figure 63 – Linear Reading
In Advanced Code Reconstruction mode it is no longer necessary for the laser beam to cross
the label from the start to the end. With just a set of partial scans on the label (obtained using
the motion of the label itself), the DS8110 is able to “reconstruct” the barcode. A typical set of
partial scans is shown in the figure below:
Figure 64 – Partial Scans
None of the partial scans contains the whole label. The decoder aligns each partial scan
correctly and combines them in order to obtain the entire code.
The alignment is performed by calculating the time difference from one partial scan to
another using a reference code element.
5.9.1 Tilt Angle for Advanced Code Reconstruction
The most important parameter in Advanced Code Reconstruction is the value of the
maximum tilt angle (maximum) under which the code reconstruction process is still
possible.
Figure 65 – Tilt Angle
The decoder will be able to read the label with a tilt angle between
+ max and - max as shown in the following figure:
