6.2.8 Verify Tachometer Operation
Rotate the tachometer wheel slowly.
The ENC/TACH LED in the CBX510 or the TACH LED on the SC5000 should flash
indicating the tachometer is operational. Also, you can view the belt speed by navigating to
Diagnostics | Monitor in e-Genius (see section 4.7.1).

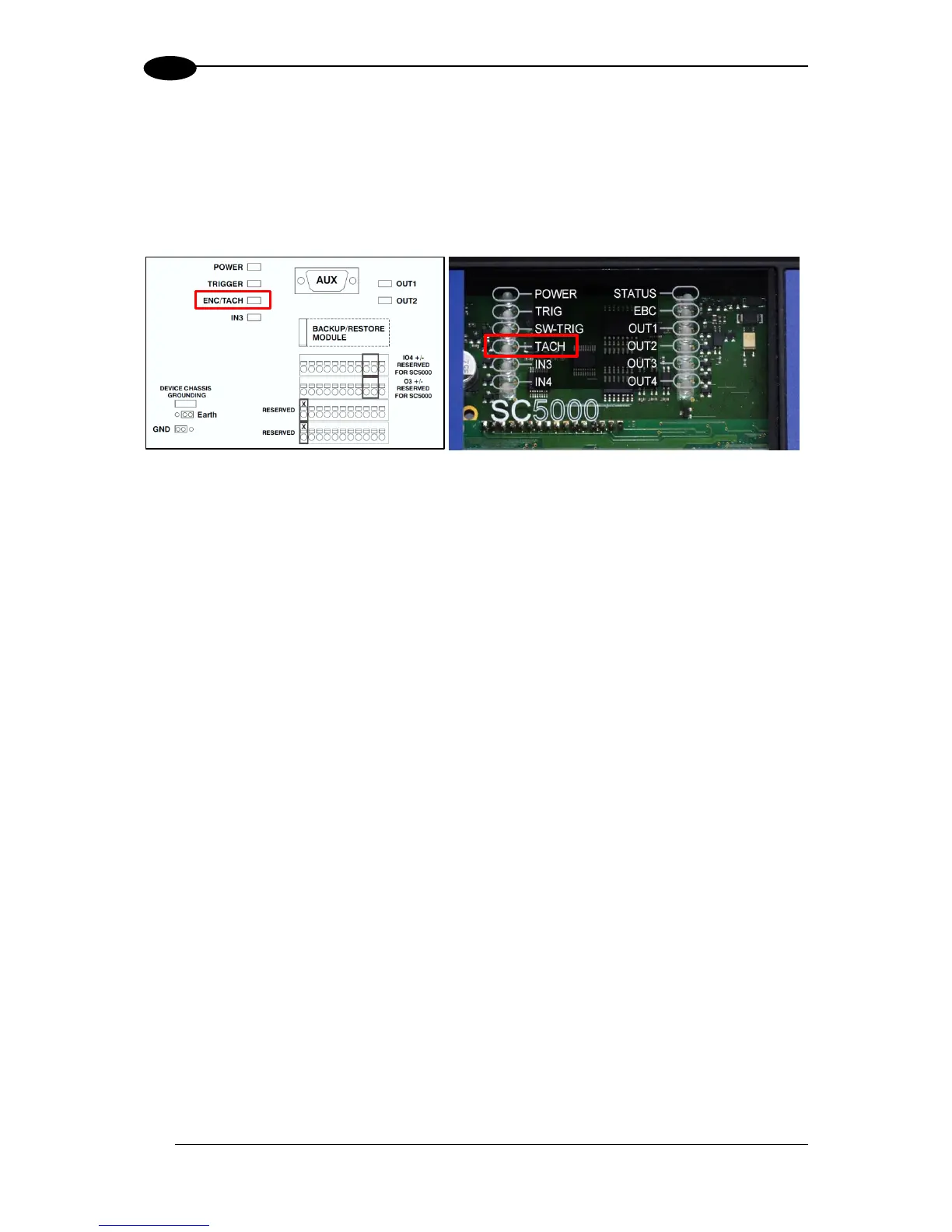

Figure 80: ENC/TACH LED indicators in CBX510 and SC5000
If these indicators do not register feedback when the tachometer wheel is rotated, check the
cabling between the tachometer and the CBX510 for damage.
