4.5.8 Modify Settings | Global Settings | Digital I/O

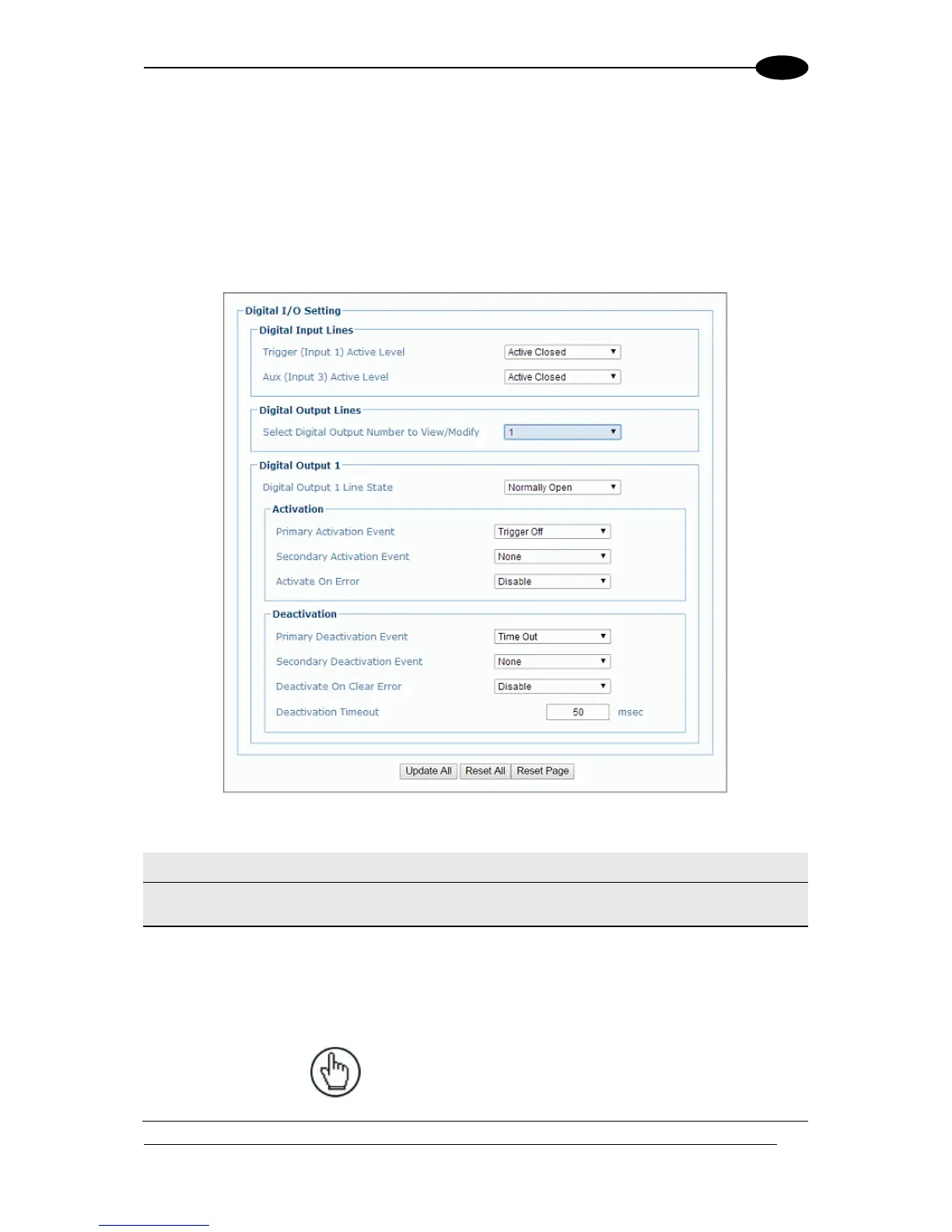

Use the Digital I/O window to configure the digital inputs and outputs for your barcode
scanning system.
To edit the Digital I/O settings:
1. In the tree menu under Modify Settings, navigate to Global Settings | Digital I/O. The
Digital I/O window opens.
2. Enter the appropriate information in the form as described below:
Field Name
Action/Definition
Digital Input Lines
Trigger (Input
1) Active Level
Select Active Closed or Active Open from the drop-down list.
 Active Closed: Input 1 is active when current flows through I1A/B TRIGGER
pins.
 Active Open: Input 1 is active when there is no current flowing through I1A/B
TRIGGER pins.
NOTE: This parameter setting is not valid, if the
input has already been defined in On Line or
PackTrack Operating Modes.
