The PackTrack Calibration Wizard asks you to physically measure and enter barcode
coordinates for the extremes of your barcode scanning system. You will measure and enter
XYZ coordinates for barcodes in three different locations along the barcode scanners laser
line(s) for each system scanner, as shown for top-mounted and side-mounted scanners in
the illustrations below.

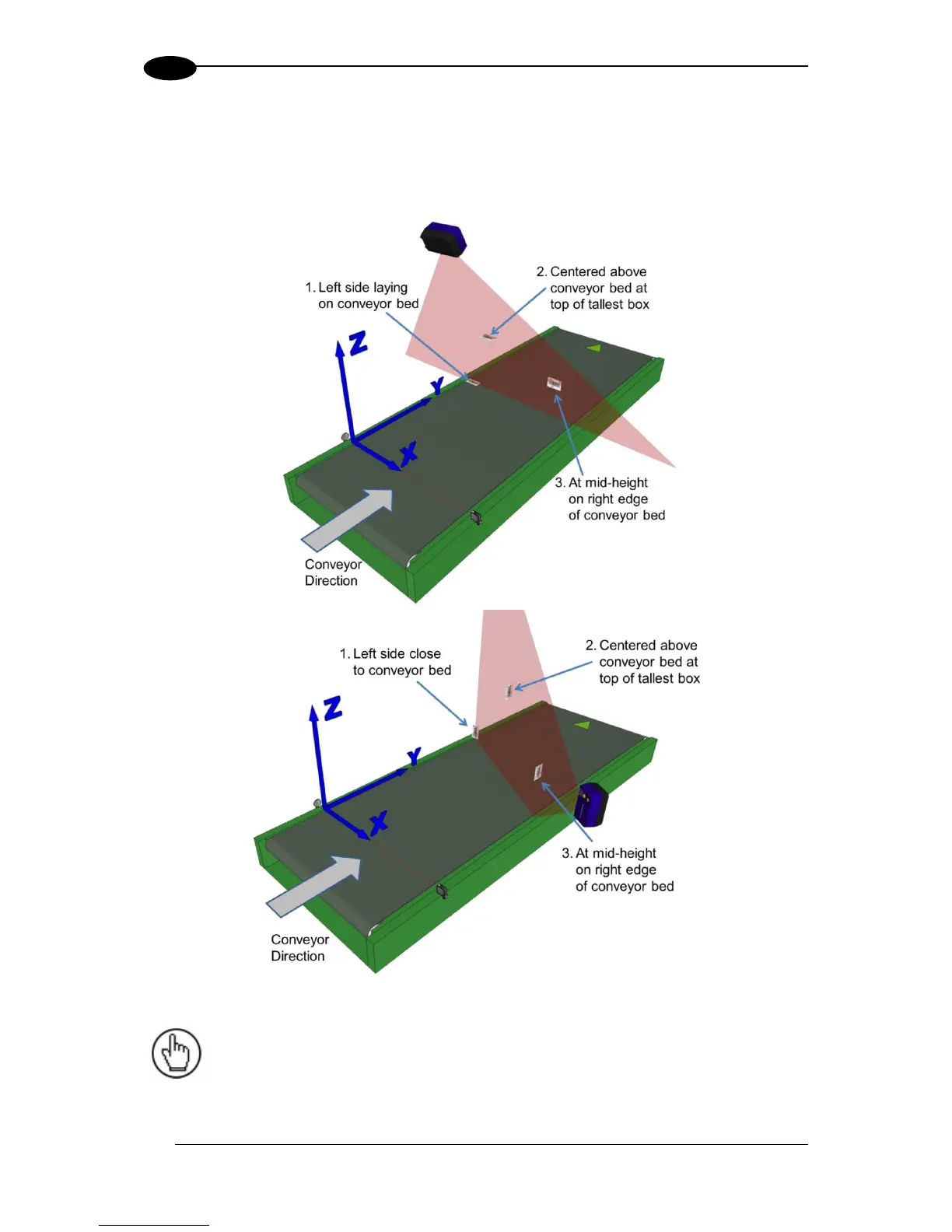

Figure 50: Barcode locations for Top Mount and Side Mount barcode scanners
NOTE: A barcode test chart is included in the box with each scanner, and a code from the
chart can be used for the PackTrack calibration. You may also use a standard barcode
from your specific application, however, test the code to make sure the scanner reads it at
100% using Diagnostics | Read Test in e-Genius (see 4.7.2).
