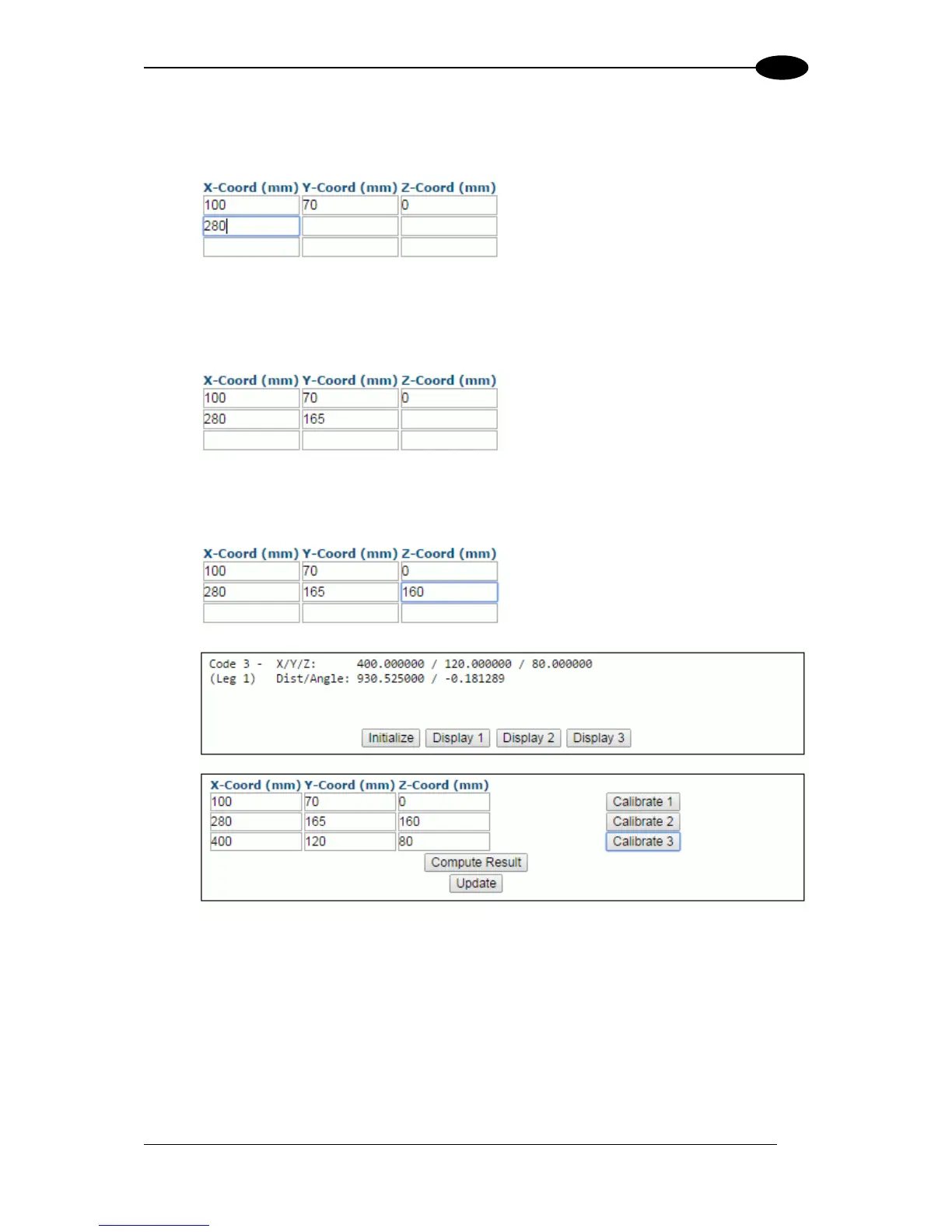

13. Measure the distance for X from the left edge of the conveyor bed to the center of the
barcode, and enter that distance in the first box under X-Coord (mm).
Your measurements will likely differ from those shown below.
14. Measure the distance for Y from the trigger (PS line) to the barcode scanner's laser line
on the barcode (back edge of box), and enter that distance in the first box under Y-Coord
(mm).
Your measurements will likely differ from those shown below.
15. Measure the distance for Z from the conveyor bed to the laser line intersecting the
barcode, and enter that distance in the first box under Z-Coord (mm).
Your measurements will likely differ from those shown below.
16. Click Calibrate 3. PackTrack data is displayed for the third code.
17. Click Compute Results. The results are displayed at the top of the PackTrack
Calibration window.
