BARCODE SCANNING FEATURES
229
5
SC5000: Basic Layout: COM To Host
If the Host supports a COM communication type (RS232 or RS422) rather than the Ethernet
one, use the CBX510 accessory, as shown below.
The remaining part of the layout (scanners, PWR etc.) does not change.
As already mentioned, the CBX510 can also be used to wire the Trigger and Encoder signals
(and other I/O) as an alternative to the M12 connection.

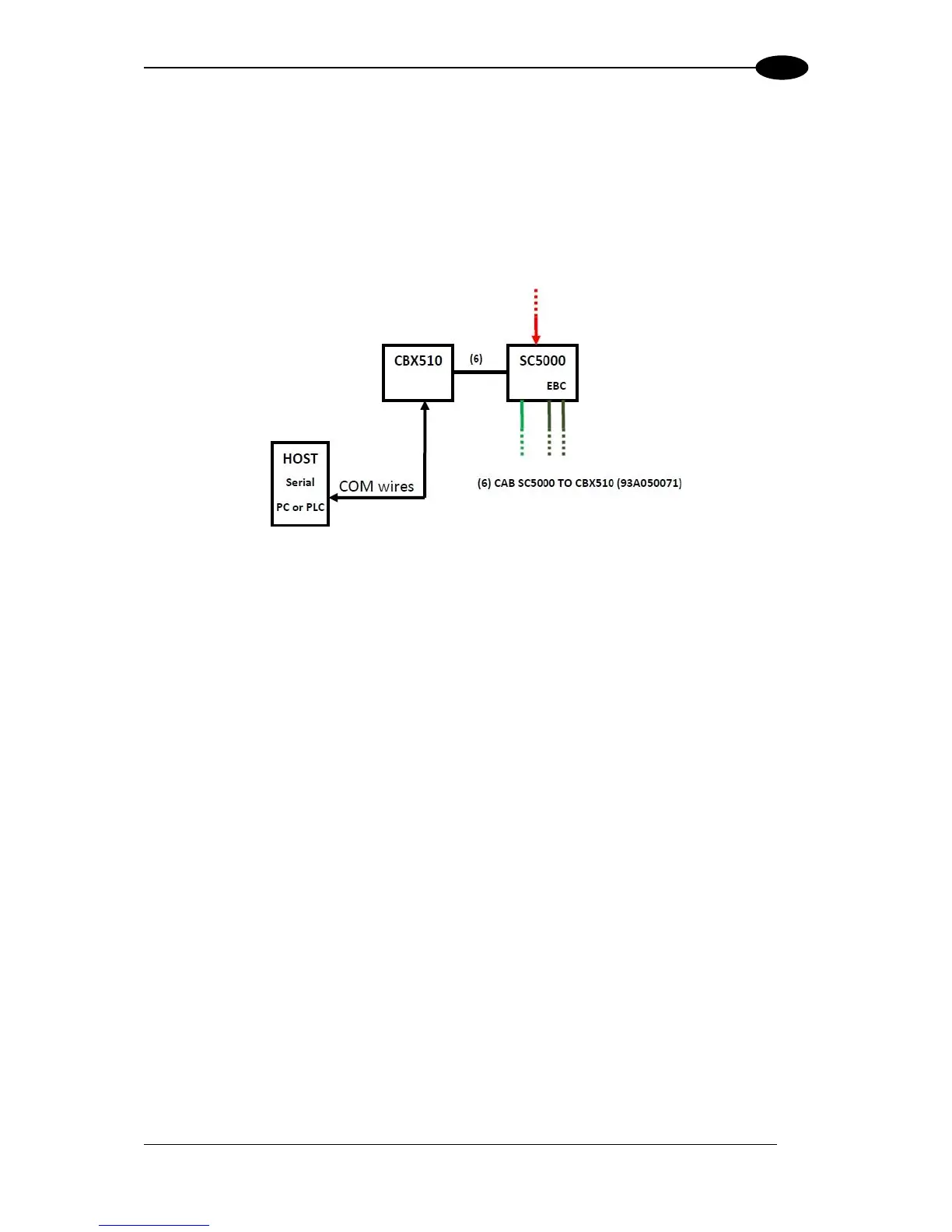

Figure 60 – Large Synchronized Network with COM to Host
