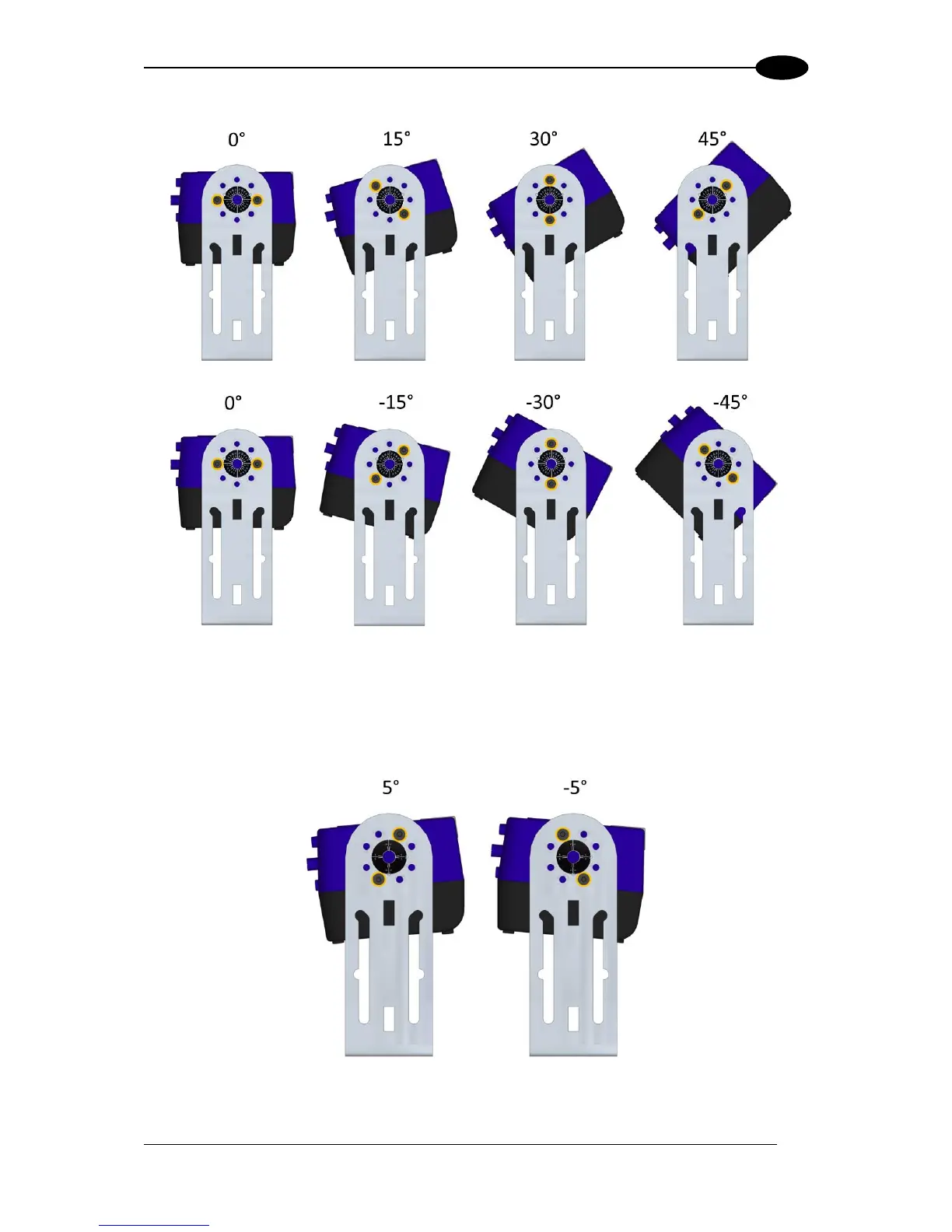

Figure 17: DS8110 mounting angles
If the DS8110 needs to be mounted at a 5-degree angle or within 5-degrees of the angles
shown in Figure 17: DS8110 mounting angles (+/- 5, +/-25, or +/-35-degrees), mount it to
the opposite end of the L bracket as shown below:
Figure 18: DS8110 5-degree mounting option
