INPUTS
PRODUCT REFERENCE GUIDE 85

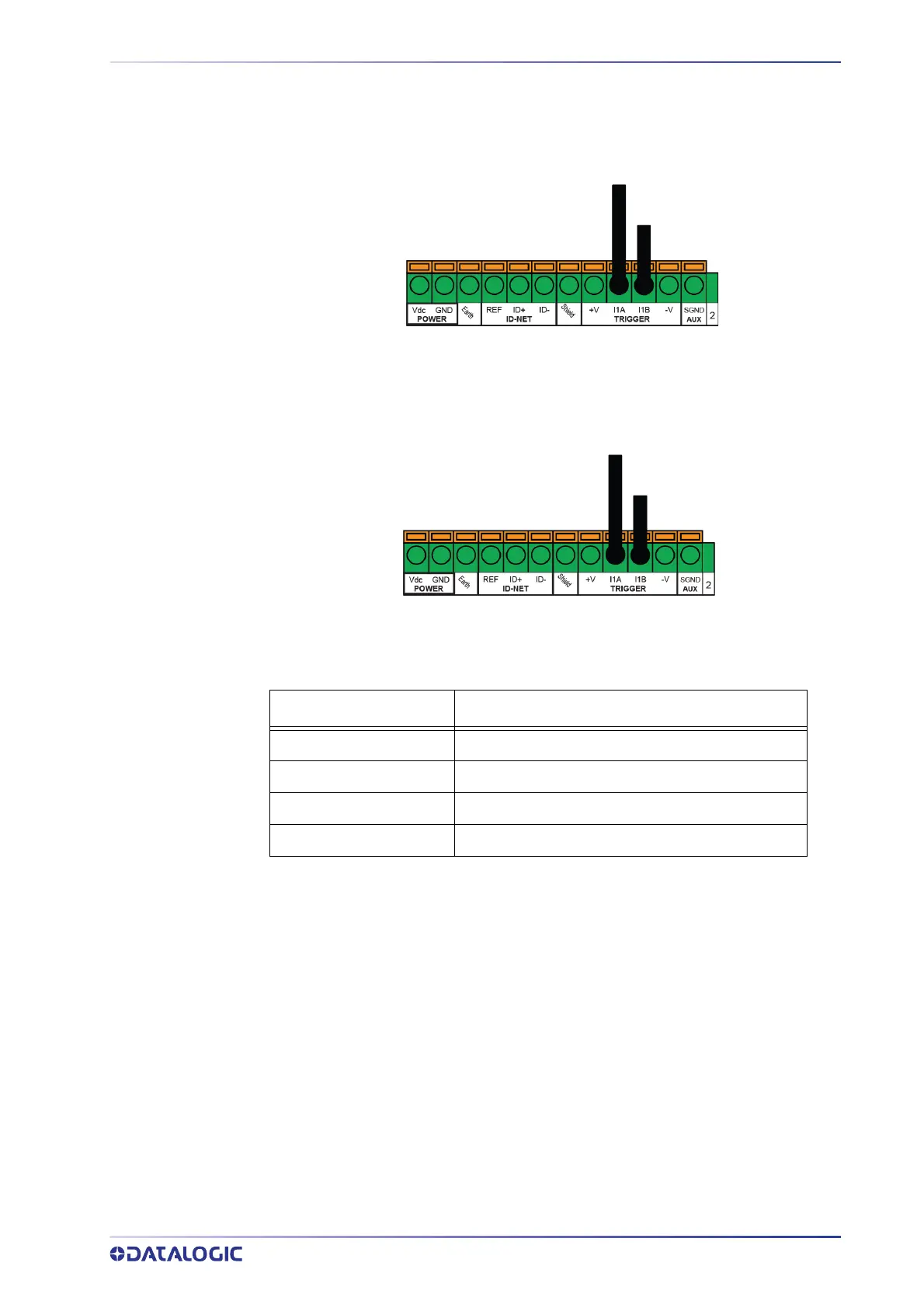

External Trigger Input Connections Using External Power
PNP Photocell
Input
Signal
Pulled down to External
Input Device Reference
Figure 58 - PNP External Trigger Using External Power
NPN Photocell
Input
Signal
Pulled up to External
Input Device Power
Figure 59 - NPN External Trigger Using External Power
CBX100/500 Description
+V Power Source - External Trigger
I2A Input 2 A (polarity insensitive)
I2B Input 2 B (polarity insensitive)
-V Power Reference - External Trigger
