Datalogic Matrix 220 - MECHANICAL DIMENSIONS

MOUNTING FLEXIBLE CABLES
PRODUCT REFERENCE GUIDE 67

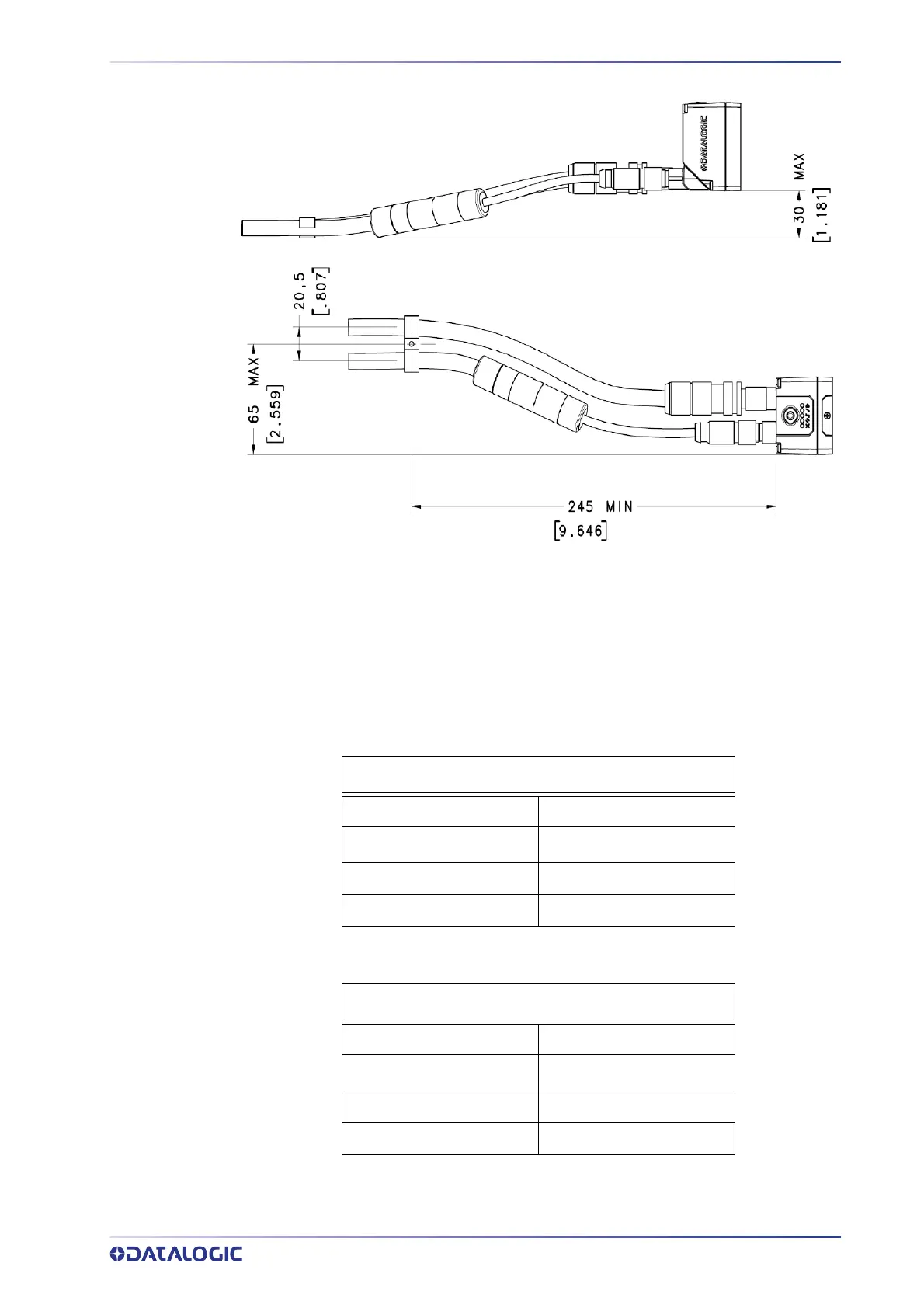

Figure 45 - Flexible Power + Ethernet cables connected to Matrix reader with connector
at 90°
Flexible Cables Technical Data
Dynamic values for 3D e-chain
Max. Speed ± 180 °/s
Max. Acceleration
60 °/s
2
Min. Binding Radius 105 mm
Cycles 5 million
Dynamic values for linear e-chain
Max. Speed 10 m/s
Max. Acceleration
10 m/s
2
Min. Binding Radius 80 mm
Cycles 5 million
