SOFTWARE CONFIGURATION
158
MATRIX 220
Verify Master/Slave Synchronized Configuration
From the Master configuration, run the application and monitor the output data from
the DL.CODE Console or a configured channel terminal.
If necessary, as a troubleshooting tip, you can temporarily apply the Reading Mask
field
in place of each Code Content field to verify if all devices are reading. To do this:

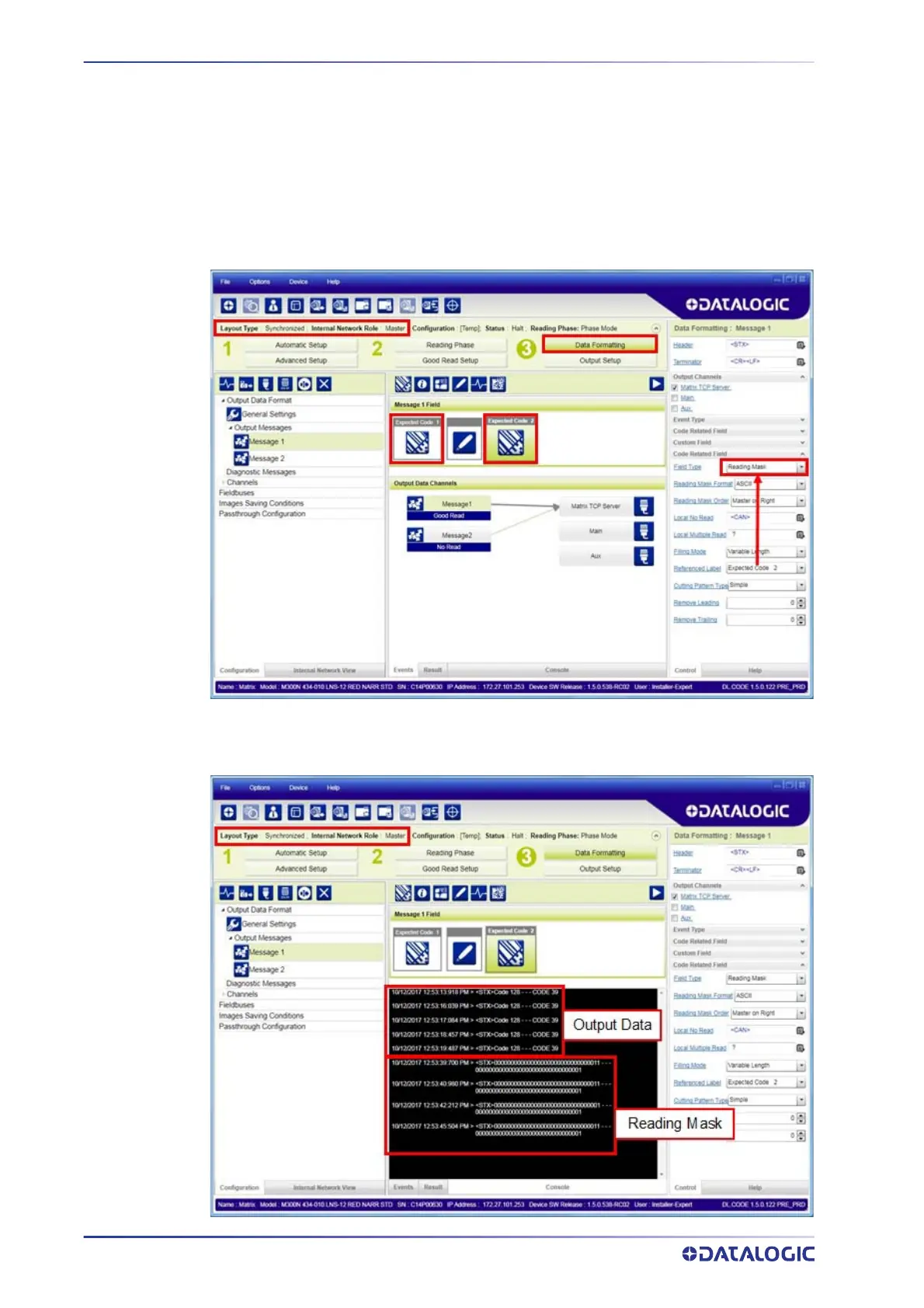

1. Connect to the Master device via Ethernet and from the Data Formatting step,
change each Expected
Code Field Type from Code Content to Reading Mask.
2. Run the application and monitor the output data from the DL.CODE Console or a
configured channel terminal.
