NOTE

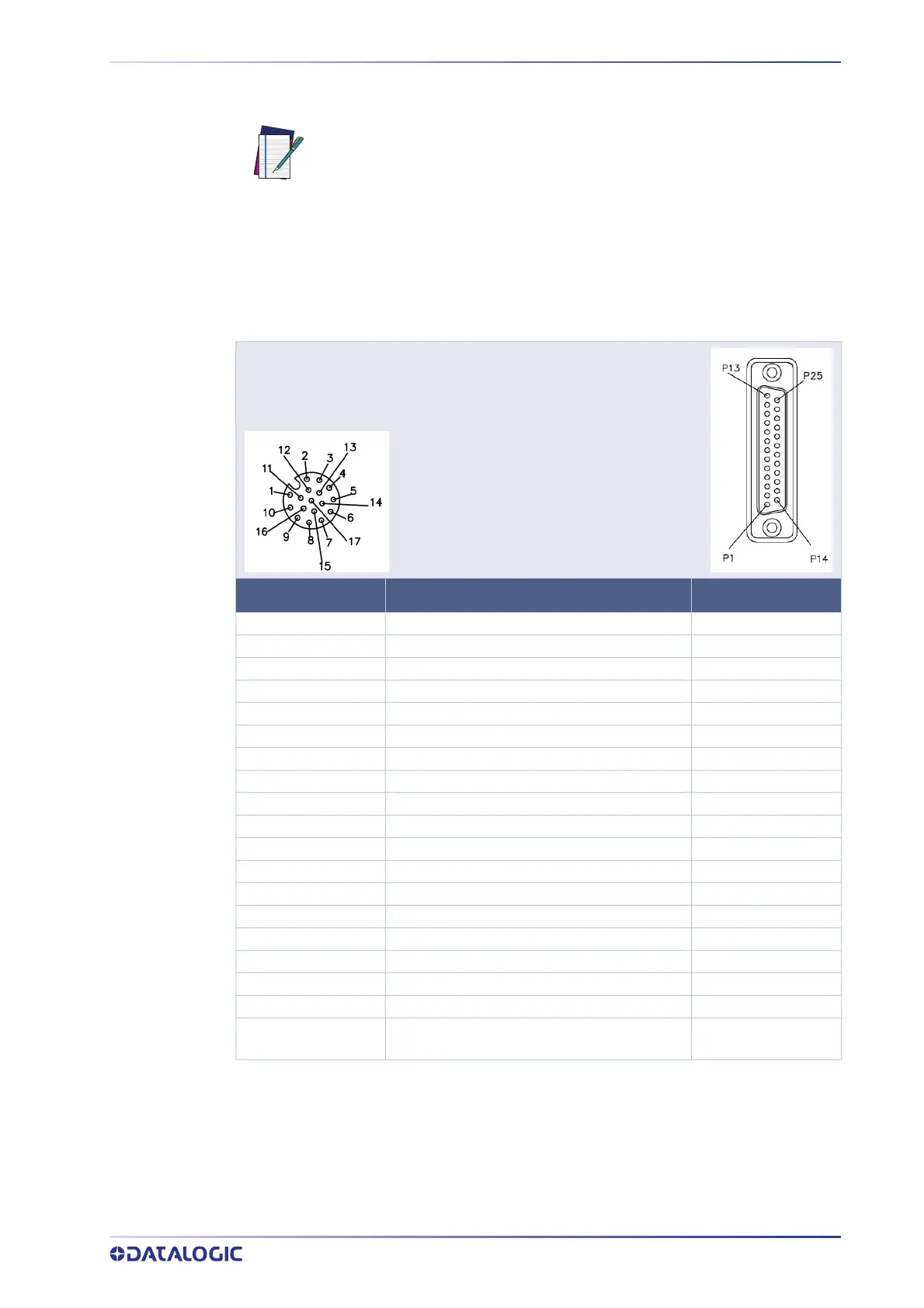

CAB-DS0X-S PINOUT
PRODUCT REFERENCE GUIDE 71
CAB-DS0x-S PINOUT
1 VS 9-13
2 GND 7-25
6 XTRG_A 18
5 XTRG_B 19
13 IN2A 6
3 IN2B 10
16 OUT3 14-16
8 OUT2 11
9 OUT1 8
17 CO/TX 2
11 C2/RX 3
12 C1/RTS 4
10 C3/CTS 5
4 TXA 21
14 RXA 20
7 NET+ 23
15 NET- 24
NUT SHIELD
1
12, 15, 17, 22
Not connected
To avoid electromagnetic interference when the reader is connected to a
CBX connection box, verify the jumper positions in the CBX as indicated
in its Installation Manual.
