X-PRESS HUMAN MACHINE INTERFACE
PRODUCT REFERENCE GUIDE
37

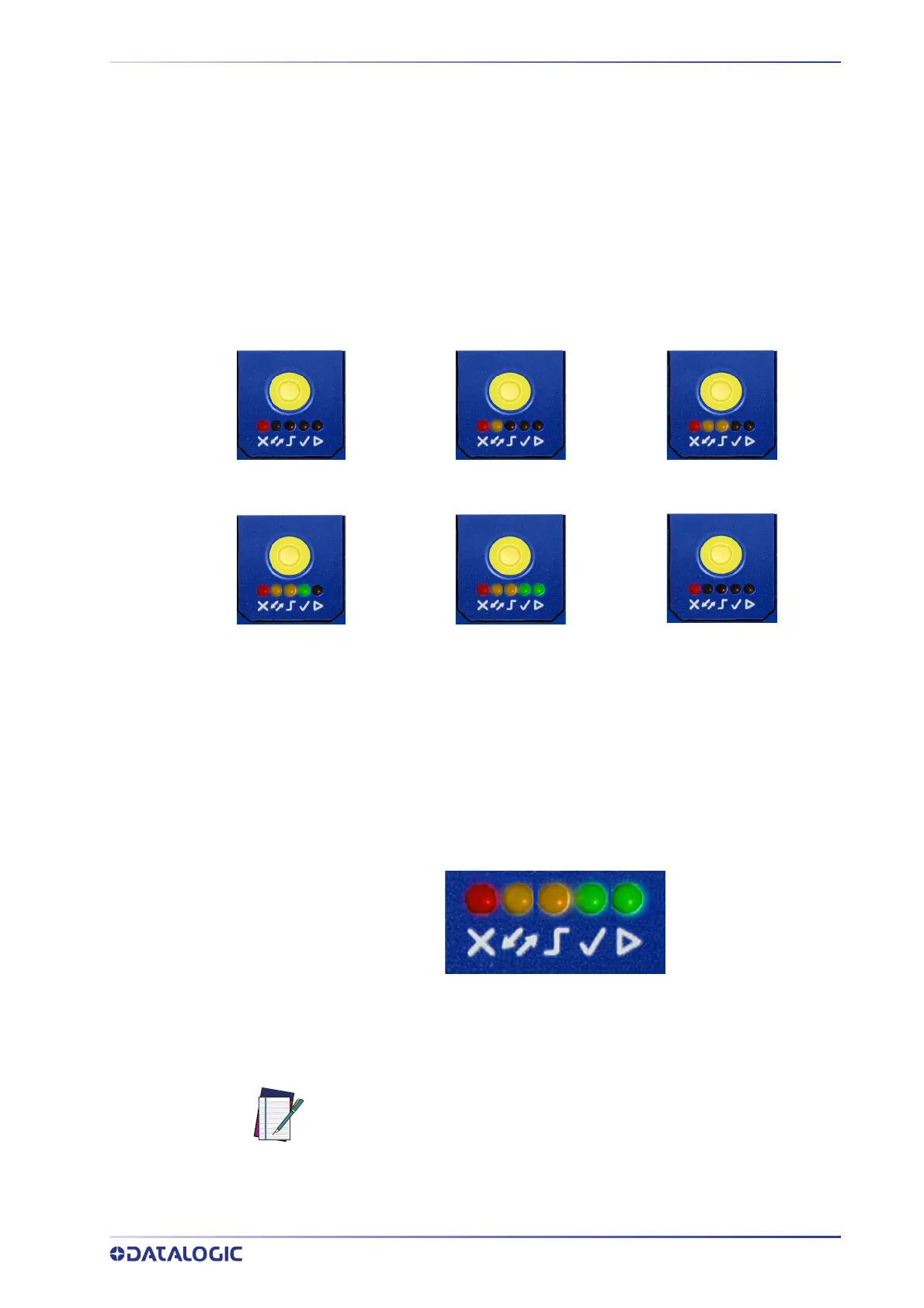

X-PRESS Functions
Quick access to the following functions is provided by an easy procedure using the push
button:
1. Press the but
ton (the Status LED will give a visual feedback).
2. Hold the button until the specific function LED is on (Test, Aim, Setup or Learn).
3. Rel
ease the
button to enter the specific function.
Once button is pressed, the cycle of LEDs
activation is as follows:
Release button
to Exit
Release button to
enter Test Mode
Release button to enter
Aim/Autofocus Mode
Release button to
enter Setup Mode
Release button to
enter Learn Mode
Release button to Exit
Test Mode
Once entered, the Bar Graph on the five LEDs is activated and if the imager starts read-
ing codes the Bar-Graph shows the Good Read Rate. The Bar Graph has the following
meaning:
≥ 20%
≥ 40%
≥ 60%
≥ 75%
≥ 95%
In case of a NO READ condition, only the Status LED (red) is on and blinks.
To exit the Test Mode, press the X-PRESS push button once.
NOTE
By default, the Test exits automatically after three minutes.
