ELECTRICAL CONNECTIONS
78 MATRIX 220
ID-NET Network Termination
The network must be properly terminated in the first and last reader of the network.
This is done by setting the ID-NET Termination Resistance Switch in the CBX100/500 to
ON.
ID-NET Connection Diagrams

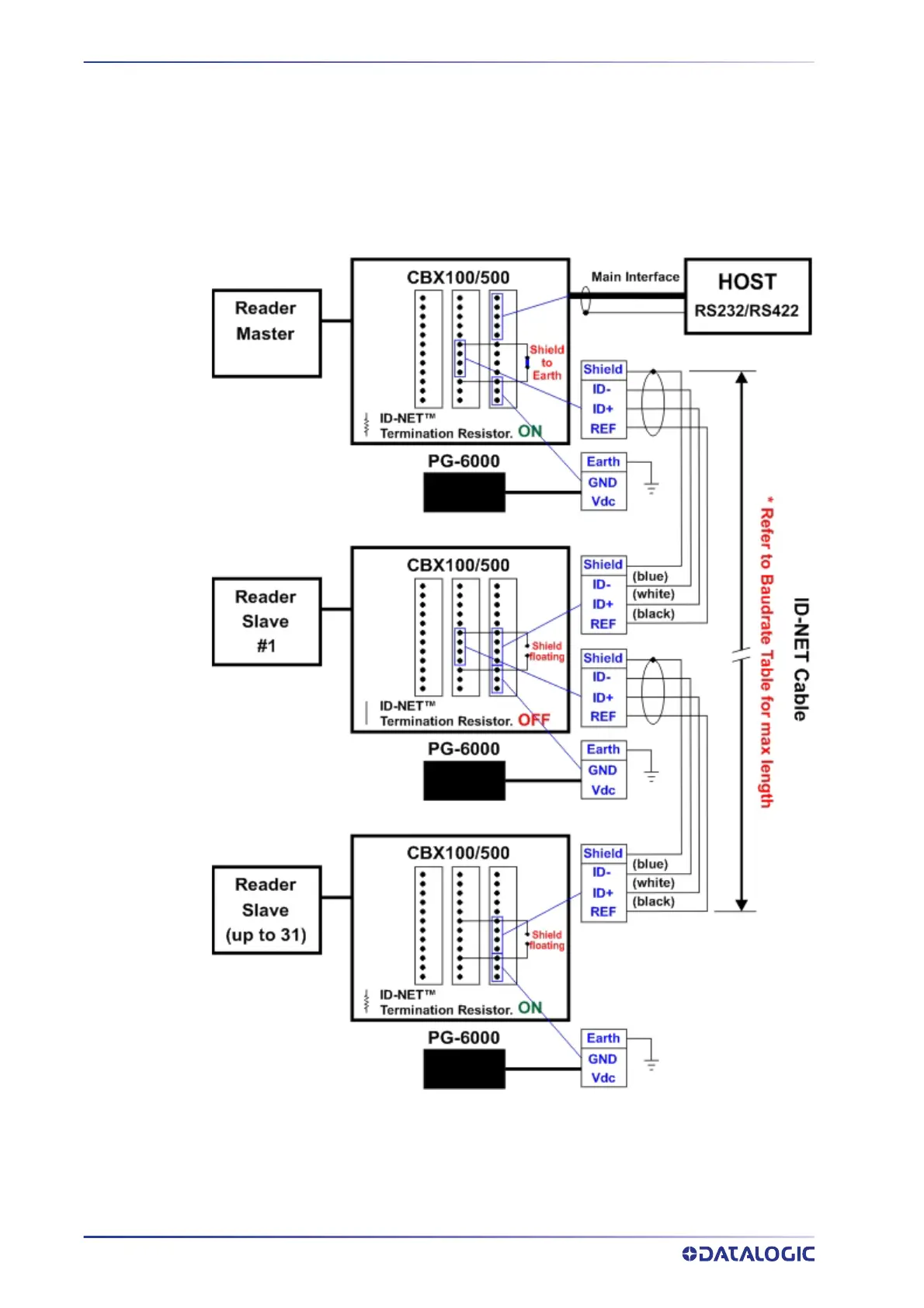

Figure 52 - ID-NET Network Connections with isolated power blocks
