OUTPUTS
PRODUCT REFERENCE GUIDE
89

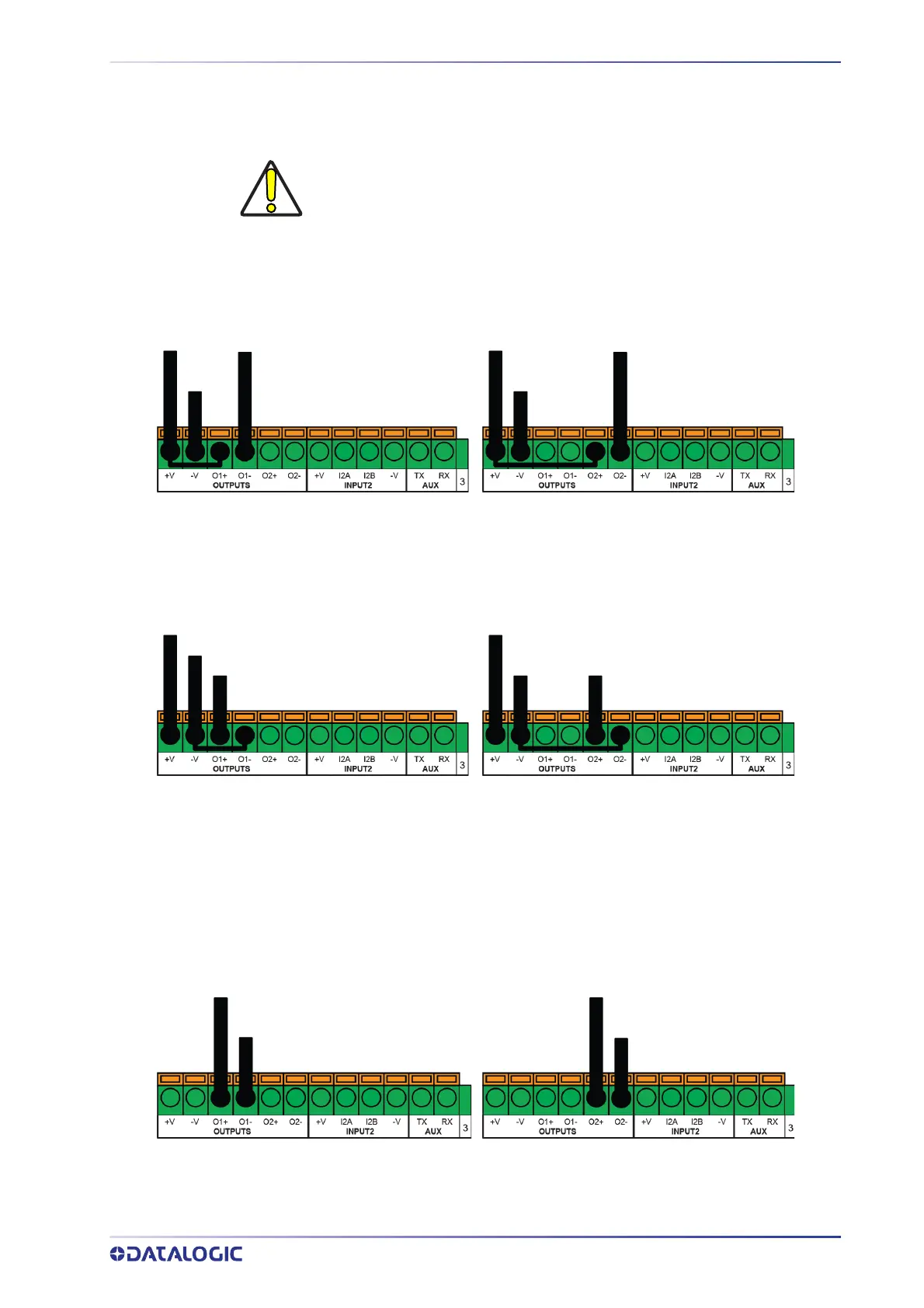

Output 1 and 2 Connections Using Matrix 220 Power
Output 2 Device
Power to Out-
put Device
Output Device
Reference
Output
Signal
Output 1 Device
Power to Out-
put Device
Output
Device Ref-
erence
Output
Signal
Figure 65 - PNP/Open Emitter Output Using Matrix 220 Power
Output 2 Device
Power to Out-
put Device
Output Device
Reference
Output
Signal
Output 1 Device
Power to Out-
put Device
Output Device
Reference
Output Signal
Figure 66 - NPN/Open Collector Output Using Matrix 220 Power
Output 1 and 2 Connections Using External Power
Output 2 Device
Output
Signal
Output 1 Device
Output
Signal
Pulled up to External
Output Device Power
Pulled up to External
Output Device Power
Figure 67 - PNP/Open Emitter Output Using External Power
CAUTION
Power from the Vdc/GND spring clamps is available directly to the Out-
put Device on the +V/-V spring clamps, and does not pass through the
Power Switch (ON/OFF) inside the CBX. Disconnect the power supply
when working inside the CBX.
