ELECTRICAL CONNECTIONS
86 MATRIX 220

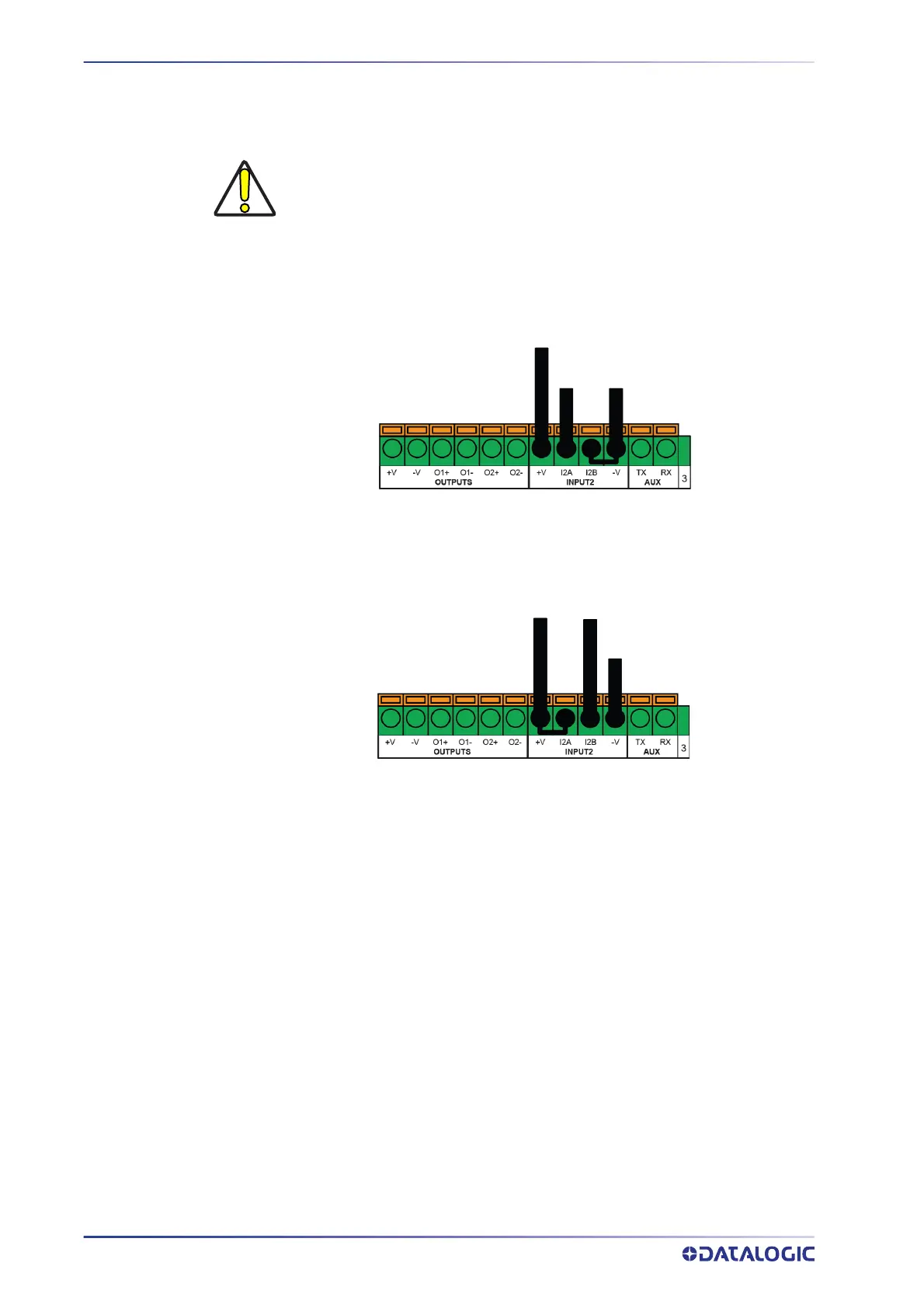

Input 2 Connections Using Matrix 220 Power
Input Device
Power to
Input Device
Input Device
Reference
Input
Signal
Figure 60 - PNP Input 2 Using Matrix 220 Power
Input Device
Power to
Input Device
Input Device
Reference
Input
Signal
Figure 61 - NPN Input 2 Using Matrix 220 Power
CAUTION
Power from the Vdc/GND spring clamps is available directly to the Input
Device on the +V/-V spring clamps, and does not pass through the Power
Switch (ON/OFF) inside the CBX. Disconnect the power supply when
working inside the CBX.
