Datalogic Matrix 220 User Manual

AUXILIARY RS232 INTERFACE
PRODUCT REFERENCE GUIDE 81
AUXILIARY RS232 INTERFACE
The RS232 auxiliary interface is available for Point-to-Point connections. When it is con-
nected to the host computer it allows transmission of code data.
The parameters relative to the aux interface (baud rate, data bits, etc.) can be defined
through the R
eading Phase step (Channels) in DL.CODE.

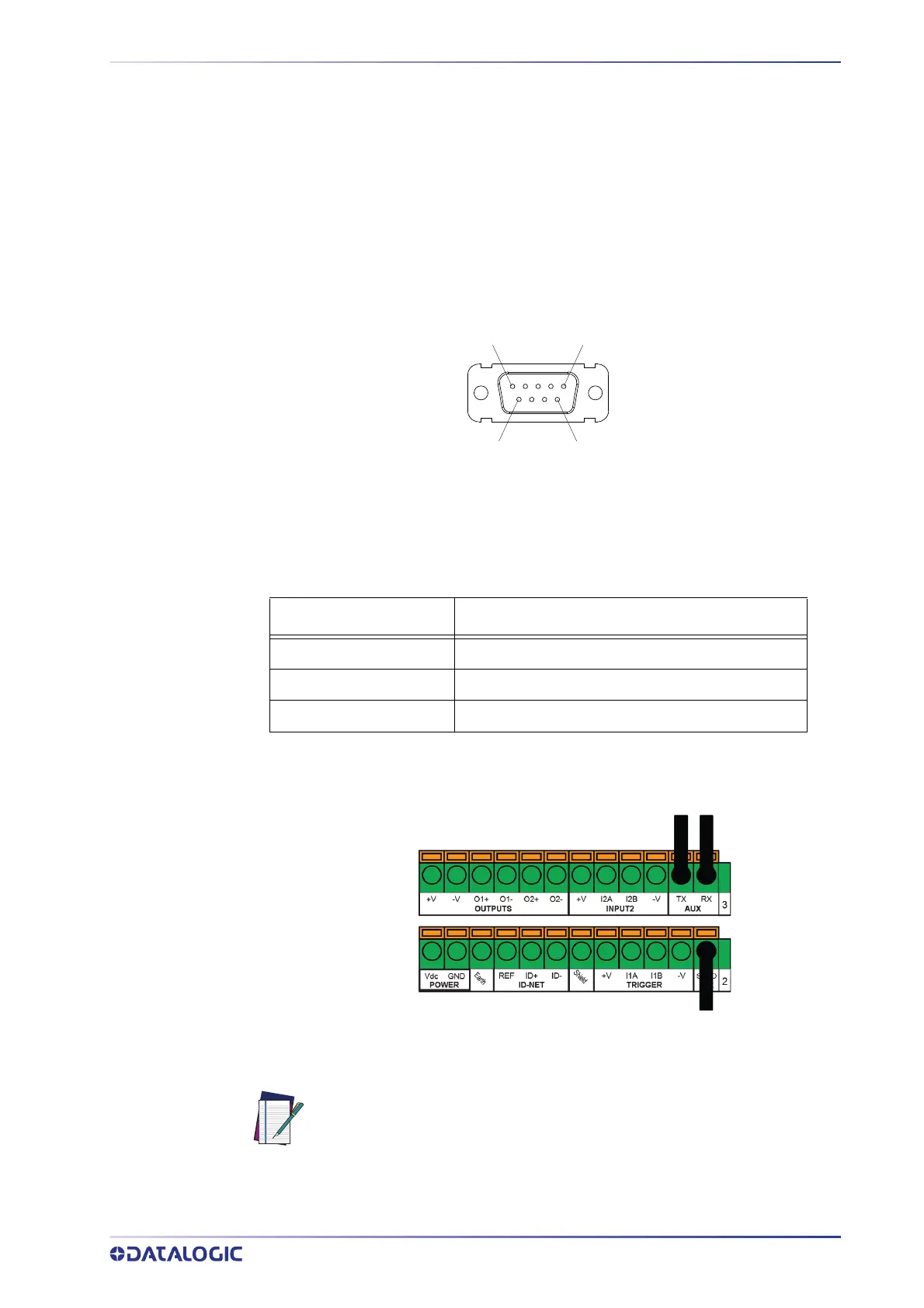

The 9-pin female Auxiliary Interface connector inside the CBX is the preferred connector
for
temporary communication monitoring.
15
69
Figure 55 - 9-pin female connector
If permanent system wiring is required, the following pins are used to connect the
RS232 auxiliary interface:
CBX100/500 Description
TX Auxiliary Interface Transmit Data
RX Auxiliary Interface Receive Data
SGND Auxiliary Interface Reference
User Interface
RX TX
Reference
NOTE
Do not connect the Aux Interface to the CBX spring clamp connectors and
the 9-pin connector simultaneously.
