ALTERNATIVE CONNECTIONS
186
MATRIX 220
Power over Ethernet (PoE) Models
A Standard M12 8-pin X-Coded female connector is provided for the on-board Power
over Ethernet connection. This interface is IEEE 802.3 10 BaseT and IEEE 802.3u 100
BaseTx compliant.

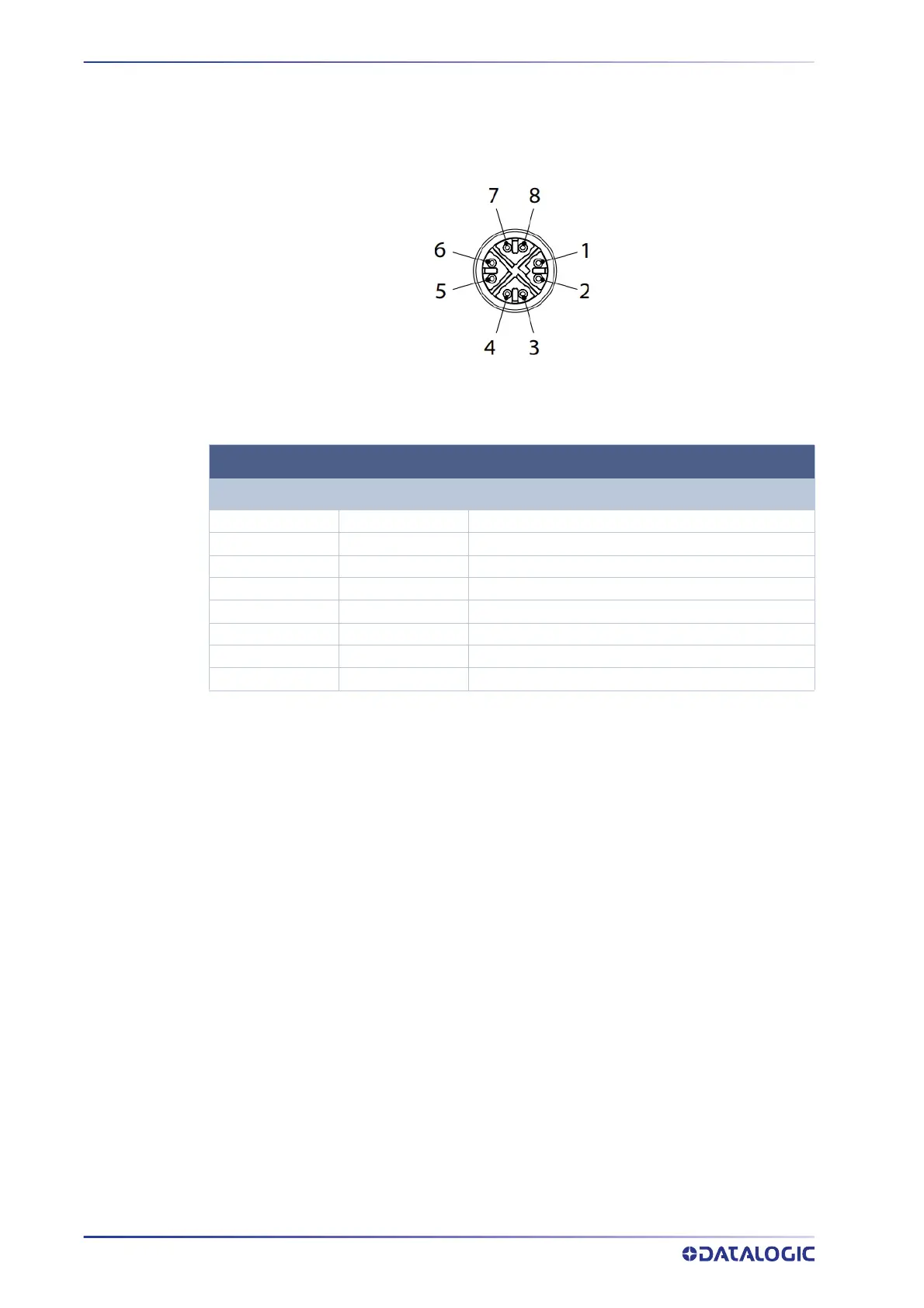

Figure 4 - M12 X-Coded Female Ethernet Network Connector
1 TX+ Transmit data +
2 TX- Transmit data -
3 RX+ Receive data +
4 RX- Receive data -
5 DC1- DC power (-)
6 DC2- DC power (-)
7 DC1+ DC power (+)
8 DC2+ DC power (+)
Power can be applied to any of the data pairs according to the IEEE 802.3af standard for
Alternative A (Mid and Endspan) or Alternative B.
ID-NET NETWORK TERMINATION
The network must be properly terminated by a 120 Ohm resistor at the first and last
reader of the network.
ON-BOARD ETHERNET NETWORK CONNECTOR PINOUT
PIN NAME DESCRIPTION
