INSTALLATION
60
MATRIX 220
MOUNTING AND POSITIONING MATRIX 220
Using the Matrix 220 mounting brackets you can obtain rotation on the various axes of
the reader as shown in the diagram below:

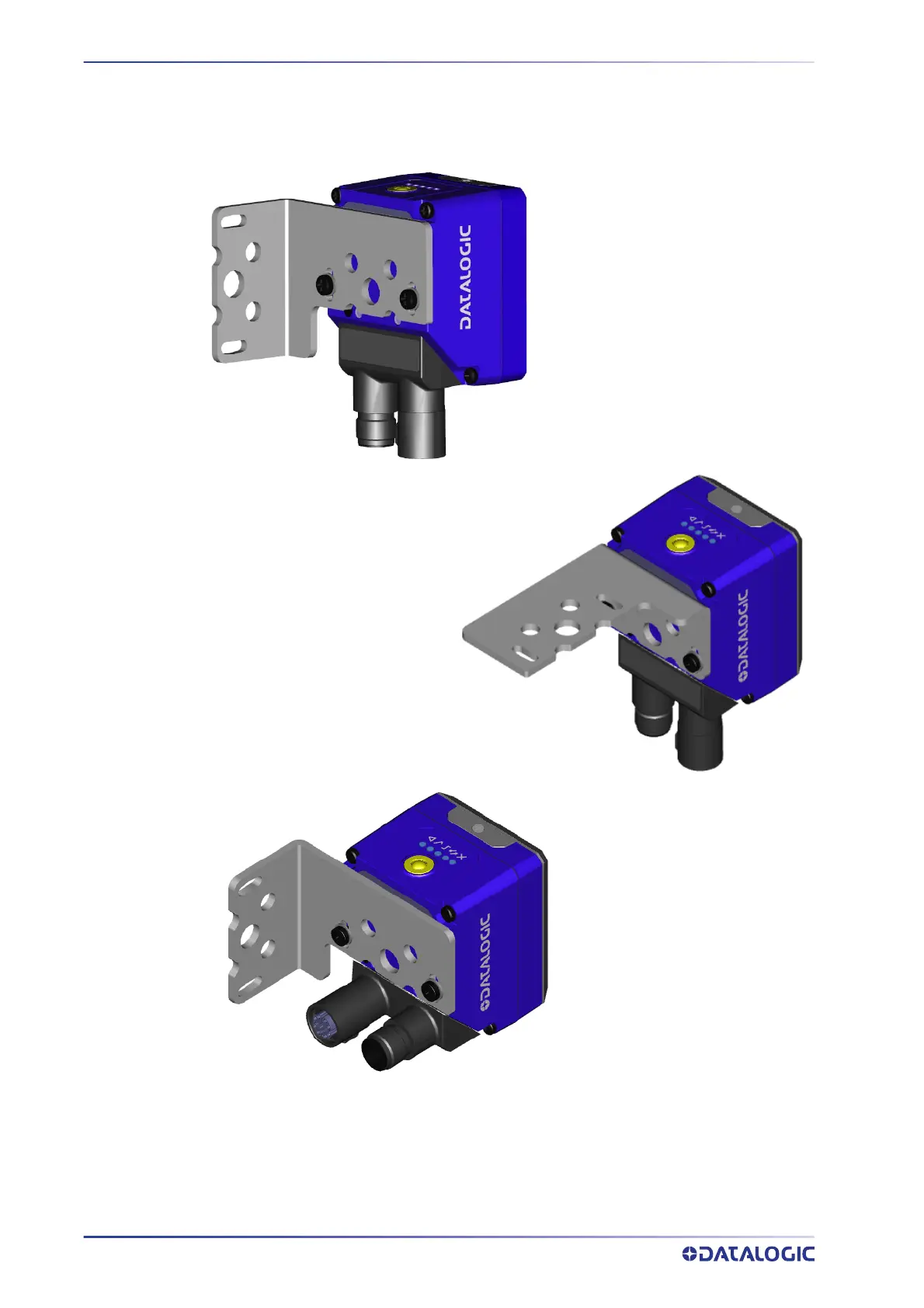

Figure 36 - Positioning with Mounting Bracket
