PRODUCT REFERENCE GUIDE
1
CHAPTER 1
RAPID CONFIGURATION
STEP 1 - CONNECT THE SYSTEM
To connect the system in a Stand Alone configuration, you need the hardware
indicated in Figure 6. In this layout the data is transmitted to the Host on the Ethernet
interface. Data can also be transmitted on the RS232 main and/or auxiliary interface
independent
ly from the Ethernet interface selection.
When One Shot or Phase Mode Operating mode is used, the r
eader is activated by an
External Trigger (photoelectric sensor) when the object enters its reading zone.
PG6000
Host
CAB-DSxx-S
Matrix 220
CAB-ETH-X-M0x
CBX
Ethernet Interface
Auxiliary Serial Interface (RS232 - Data Monitor)
External Trigger (for One Shot or Phase Mode)
Alone

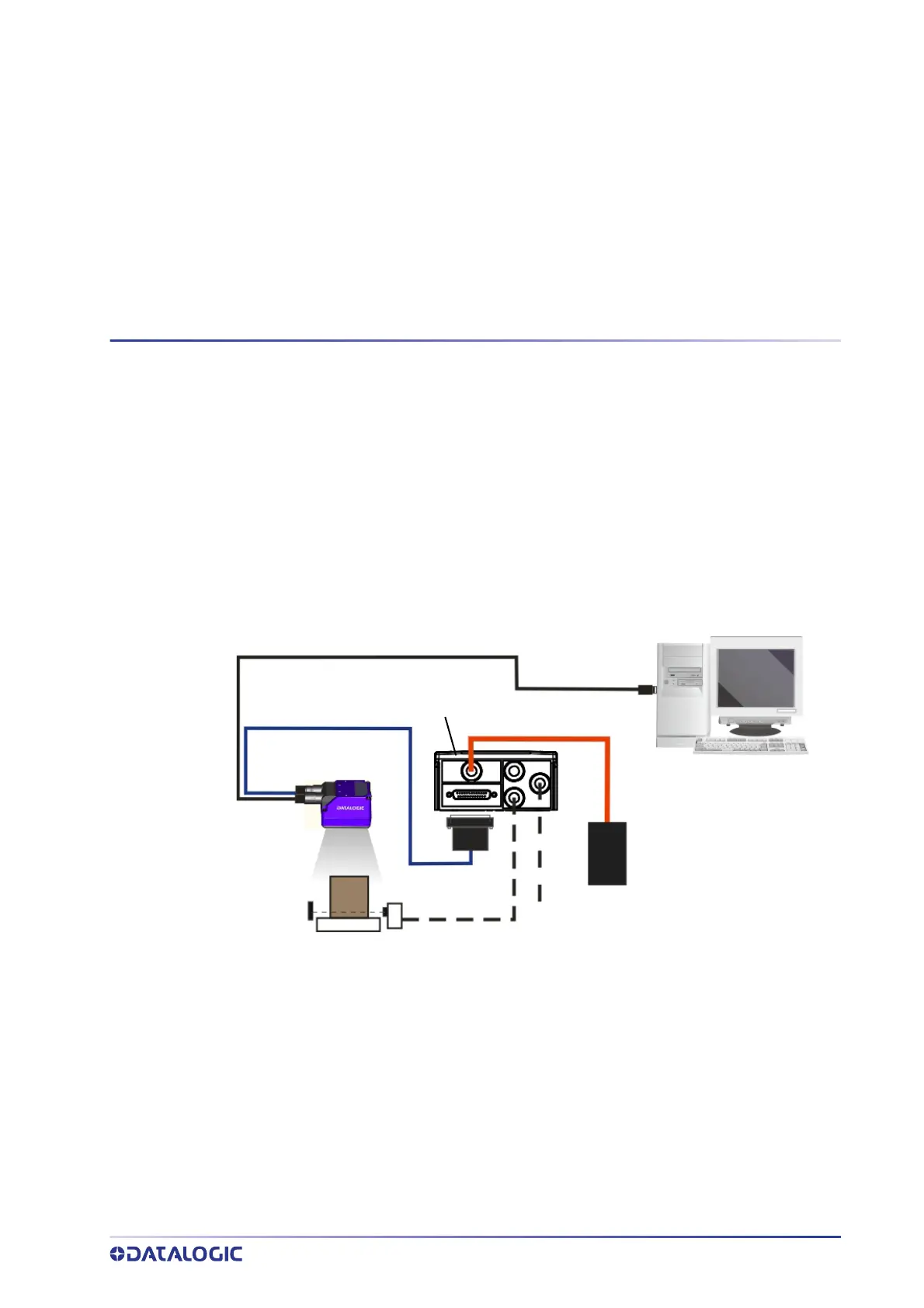

Figure 6 - Matrix 220 in Stand Alone Layout
To Next Page
