TYPICAL LAYOUTS
100
MATRIX 220
FIELDBUS CONNECTION
In this layout a single reader functions as a Slave node on a Fieldbus network. The data
is transmitted to the Host through an accessory Fieldbus interface board installed inside
the CBX500 connection box.
Reader configuration can be accomplished through the Ethernet interface using the
DL.CODE c
onfiguration program.
Data can be transmitted on the RS232 auxiliar
y int
erface independently from the Field-
bus interface selection to monitor data.
When One Shot or Phase Mode operating mode is used, the reader can be activated by
an Exte
rnal Trigger (photoelectric sensor) when the object enters its reading zone.
Host
CAB-DSxx-S
Matrix 220
CBX500
Fieldbus Interface (Profibus, DeviceNet, etc.)
Auxiliary Serial Interface (RS232 - Data Monitor)
External Trigger (for One Shot or Phase Mode)
Alone
Power

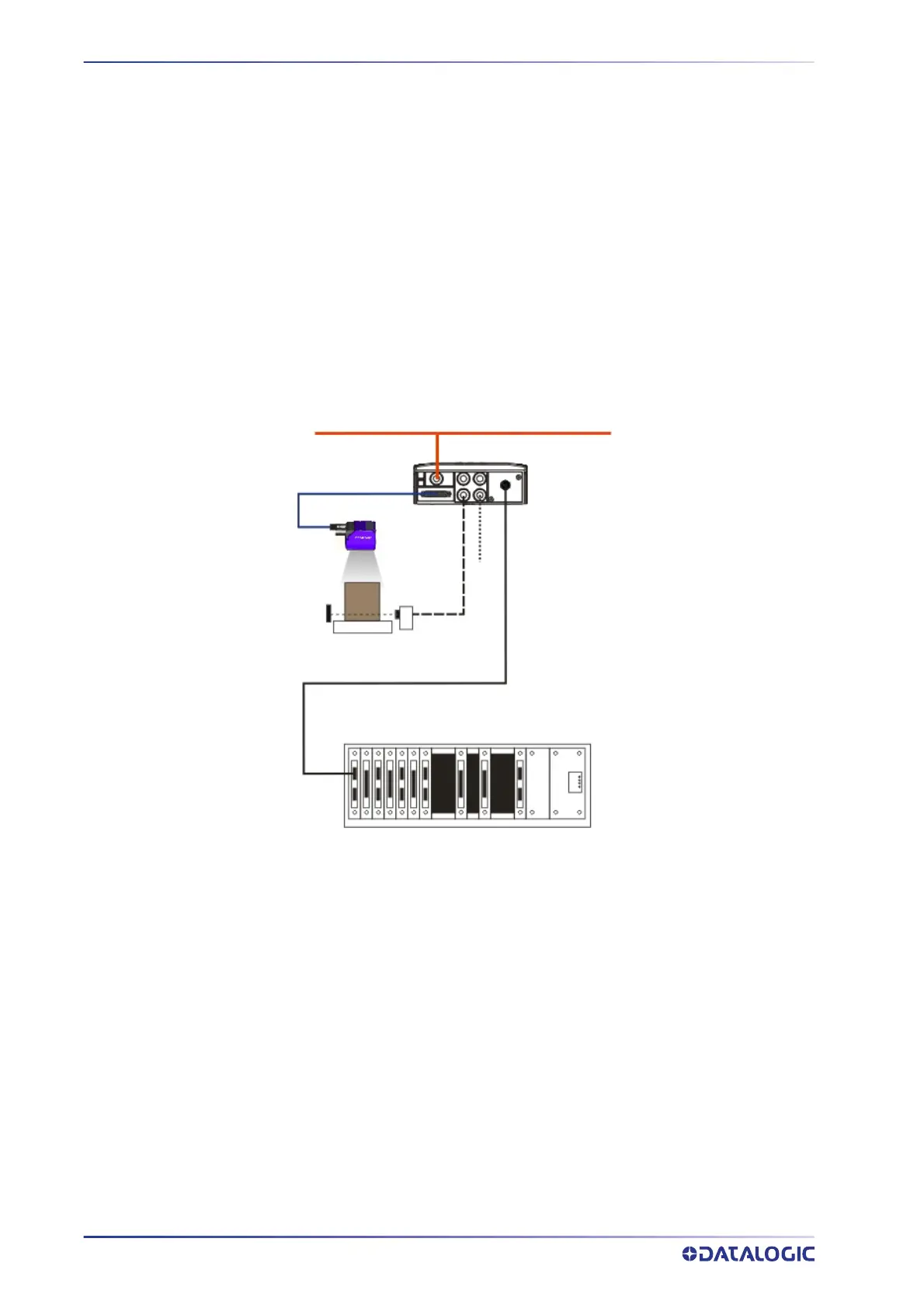

Figure 78 - Fieldbus Interface Point-to-Point Layout
All devices always support multiple output channels (i.e. for data monitoring).
