ON-BOARD ETHERNET CONNECTOR
PRODUCT REFERENCE GUIDE 185
ON-BOARD ETHERNET CONNECTOR
Standard Models
A Standard M12 8-pin X-Coded female connector is provided for the on-board Ethernet
connection. This interface is IEEE 802.3 10 BaseT and IEEE 802.3u 100 BaseTx compliant.

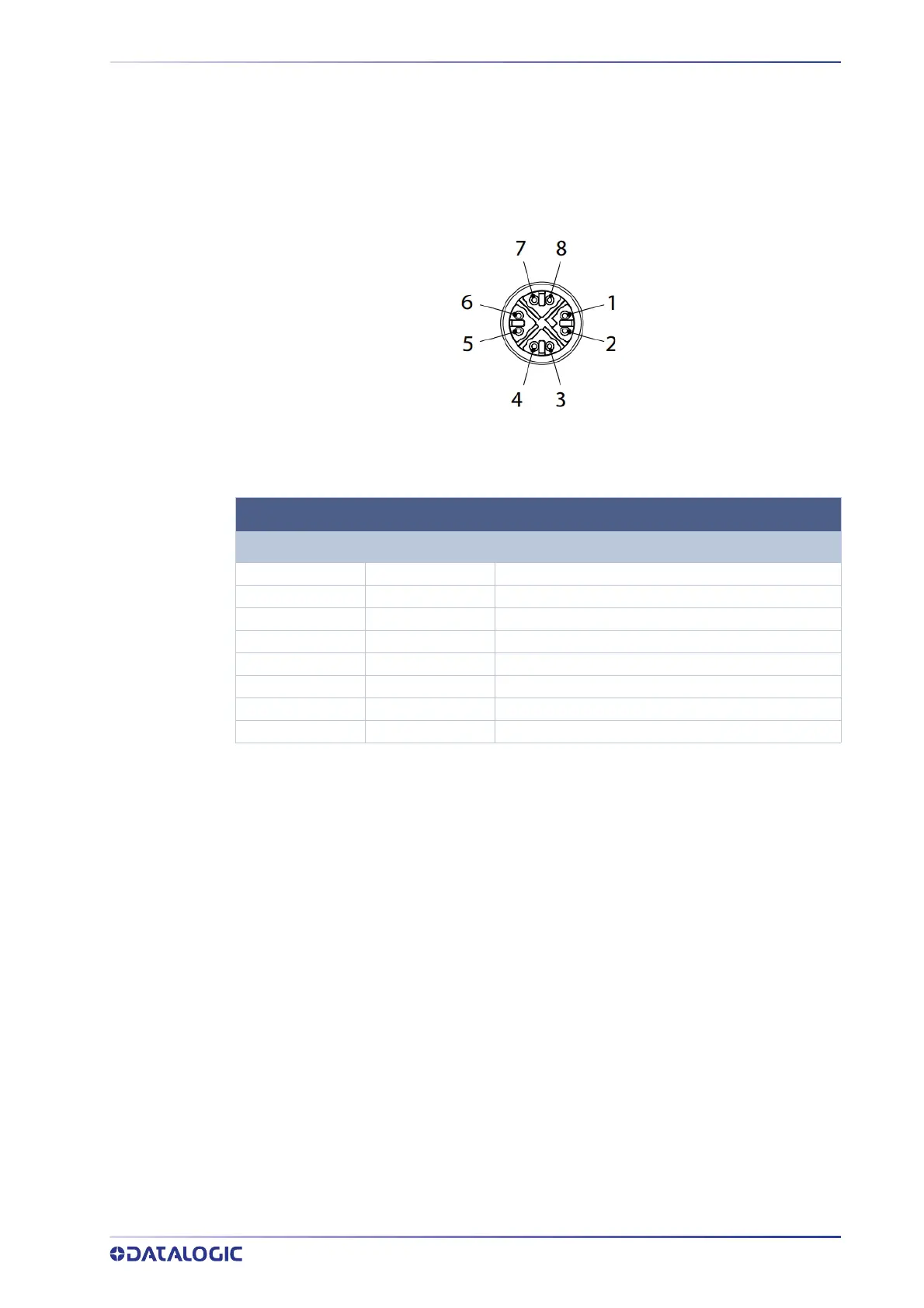

Figure 3 - M12 X-Coded Female Ethernet Network Connector
1 TX+ Transmit data +
2 TX- Transmit data -
3 RX+ Receive data +
4 RX- Receive data -
5 nc Not Connected
6 nc Not Connected
7 nc Not Connected
8 nc Not Connected
ON-BOARD ETHERNET NETWORK CONNECTOR PINOUT
PIN NAME DESCRIPTION
