READING DIAGRAMS
PRODUCT REFERENCE GUIDE
113

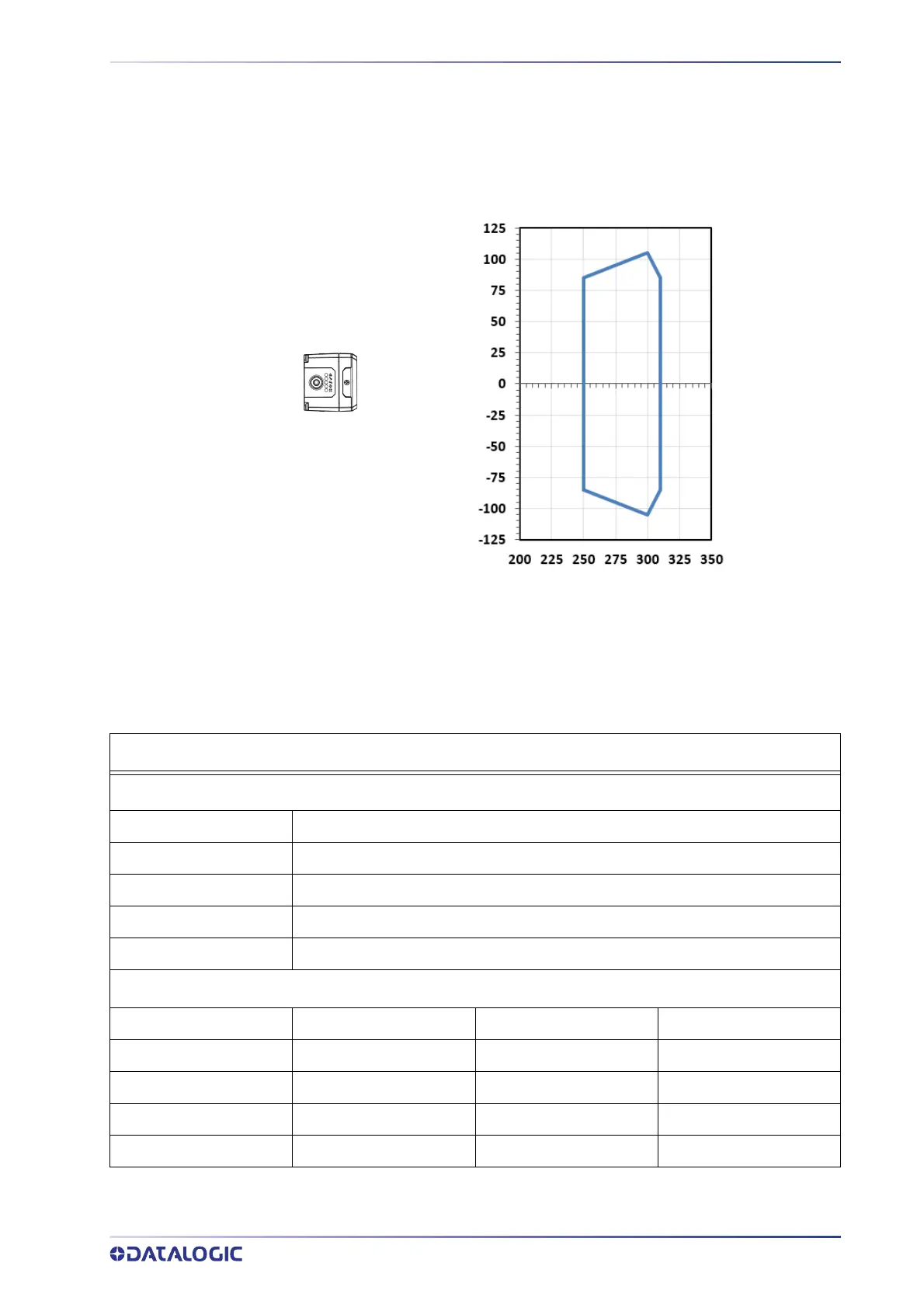

Matrix 220 (7 mm models) 1D Codes
Matrix 220 (7 mm lens - 38° Horizontal View Angle)
Code 128 0.20 mm (8 mils)
Reading Distance
Horizontal FoV
1
2
3
4
5
-5
-4
-3
-2
-1
8 9 10 11 12 1413
0
inch
mm
Conditions
Hardware Settings
Code Symbology Code 128
Code Resolution 8 mils
Tilt Angle 0°
Skew Angle 15°
Focusing Distance 300 mm
Software Parameters
Reader Model DPM-R (382-xxx) DPM-B (392-xxx) DPM-R-HP (302-xxx)
LED Group Non Polarized Non Polarized Non Polarized
Exposure Time 300 μs 320 μs 300 μs
Gain 48 52 30
Gain Multiplier x2 x2 x1
