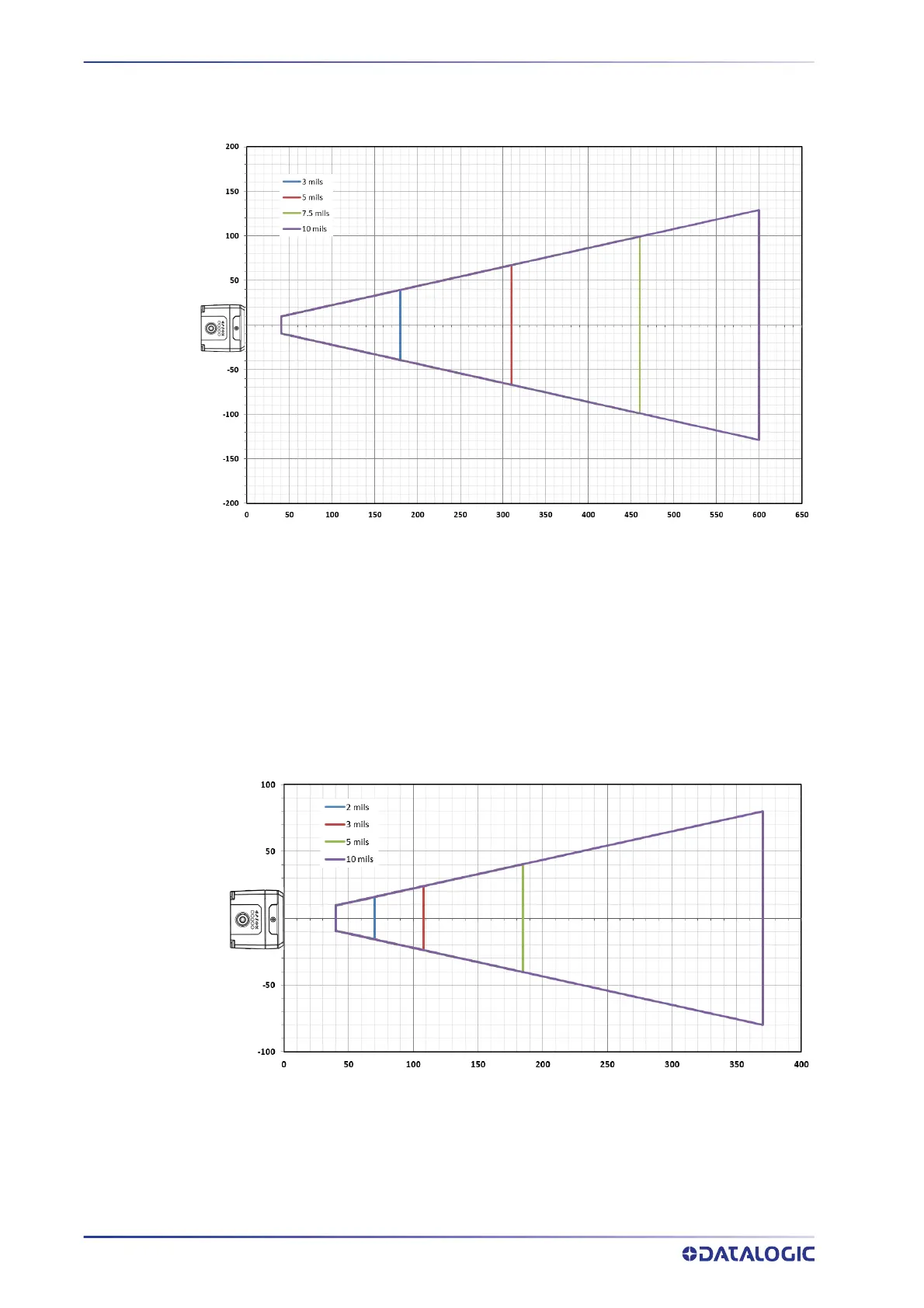

READING FEATURES
110
MATRIX 220
12 mm Models (24° Horizontal View Angle)
Horizontal FoV
Reading Distance
mm
1D Code 128
Figure 90 - 12 mm Global FOV Diagram
Horizontal FoV
Reading Distance
mm
2D Data Matrix ECC 200
Figure 91 - 12 mm Global FOV Diagram
