INDICATOR AND KEYPAD BUTTON

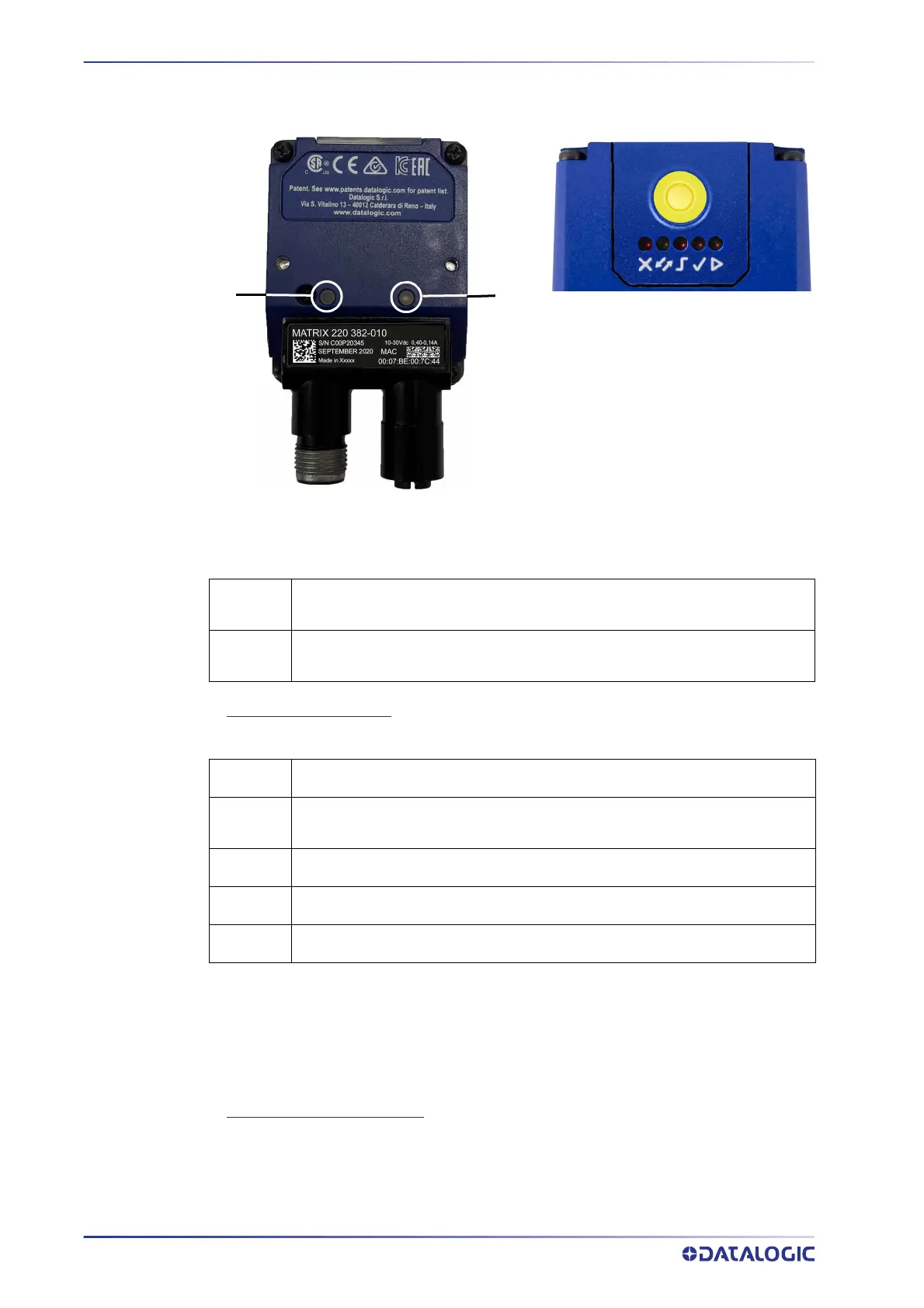

Figure 13 - Indicators
The following LED indicators are located on the reader:
PWR
blue LED indicates that the reader is connected to the power supply (Figure 13,
1)
NET
yellow LED indicates connection to the on-board Ethernet network (Figure
13, 2)
In normal operating mode the colors and meaning of the five LEDs are illustrated in the
following table:
STATUS
red LED indicates a NO READ result (Figure 13, 3)
COM
yellow LED indicates active communication on the main serial port * (Figure 13,
4)
TRIGGER
yellow LED indicates the status of the reading phase (Figure 13, 5)
GOOD
green LED confirms successful reading (Figure 13, 6)
READY
green LED indicates that the reader is ready to operate (Figure 13, 7)
* When connected to a Fieldbus network through the CBX500, the COM LED is always active, even
in the absence of data transmission, because of polling activity on the Fieldbus network.
During the reader startup (reset or restart phase), these five LEDs blink for one second.
In
X-PRESS Configuration mode the colors and meaning of these five LEDs are described
in X-PRESS Human Machine Interface.
