USER INTERFACE - SERIAL HOST
PRODUCT REFERENCE GUIDE 93
USER INTERFACE - SERIAL HOST
The following table contains the pinout for standard RS232 PC Host interface. For other
user interface types please refer to their own manual.

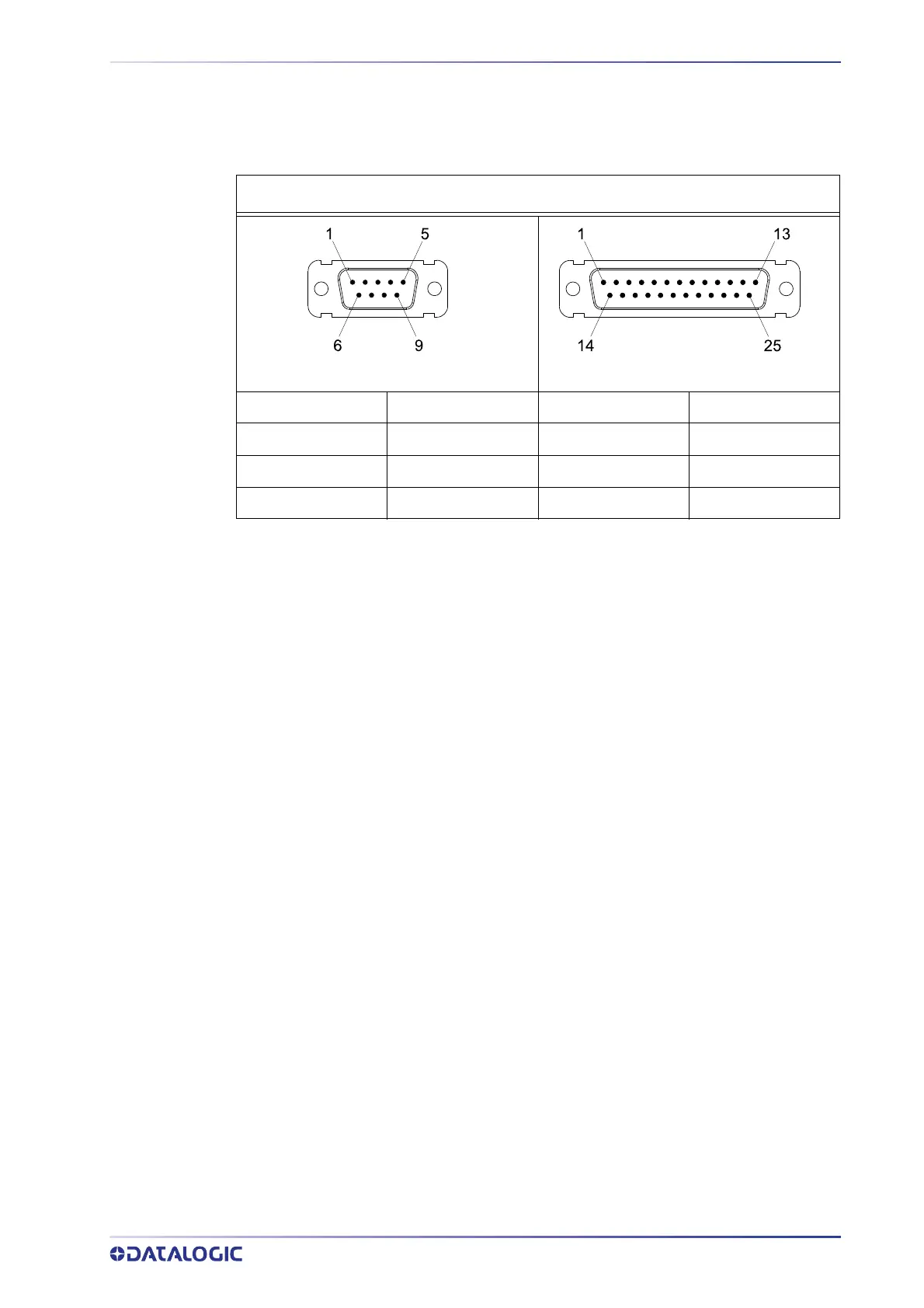

RS232 PC-side Connections
9-pin male connector 25-pin male connector
Pin Name Pin Name
2 RX 3 RX
3 TX 2 TX
5 GND 7 GND
