ETHERNET CONNECTION
PRODUCT REFERENCE GUIDE
97
ETHERNET CONNECTION
The Ethernet connection is possible in two different layouts.
In a Point-to-Point layout the reader is connected to a local host by using a CAB-ETH-X-
M0x ca
ble. There is no need to use a crossover adapter since Matrix 220 incorporates an
autocross function.
PG6000
Host
CAB-DSxx-S
Matrix 220
CAB-ETH-X-M0x
CBX
Ethernet Interface
Auxiliary Serial Interface (RS232 - Data Monitor)
External Trigger (for One Shot or Phase Mode)
Alone

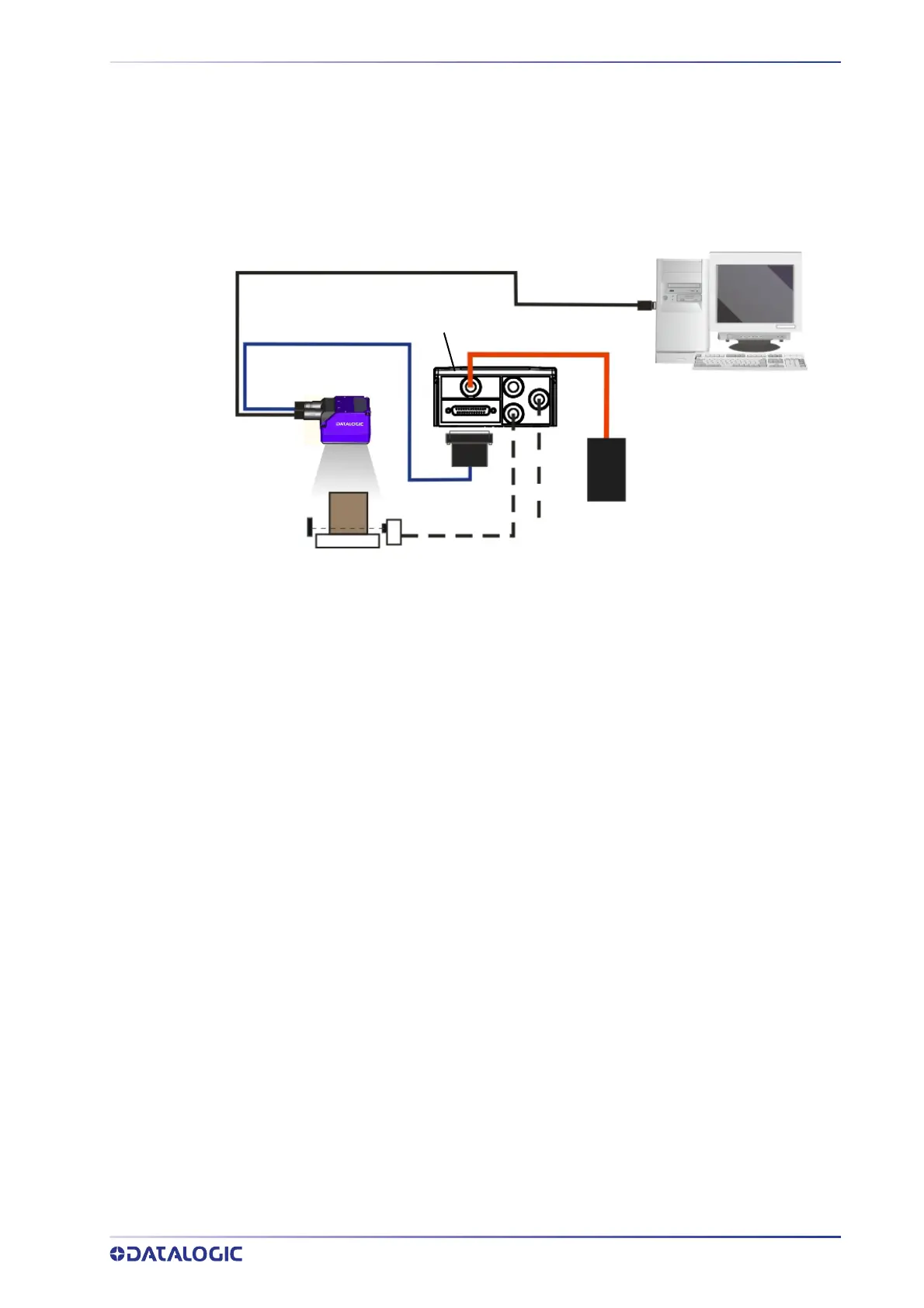

Figure 74 - Ethernet Point-to-Point Layout
All devices always support multiple output channels (i.e. for data monitoring).
