INTRODUCTION
40
MATRIX 220
Internal Lighting Systems
There are several different models of Internal Lighting Systems for Matrix 220 readers.
• Standard models have 4 white light LEDs.
• Standard High Power Illuminator models have 8 white light LEDs supplying twice
the light
ing power as the Standard model.
• The DPM Internal Lighting System has a combination of three different types of
Illumina
tors which can be selected individually depending on the Direct Part Mark
application requirements. There are Red or Blue light DPM models.
• DPM High Power Illuminator models have Polarized and Non-Polarized red light
Illumina
tors which supply twice the lighting power as the DPM models for these
illumination types.
Standard DPM
Top Diffused
Bottom Diffused
Polarized
Non-Polarized
Top
Bottom
Standard HP DPM HP
Non-Polarized
Non-Polarized
Polarized
Polarized
Top
Bottom
Central
Central

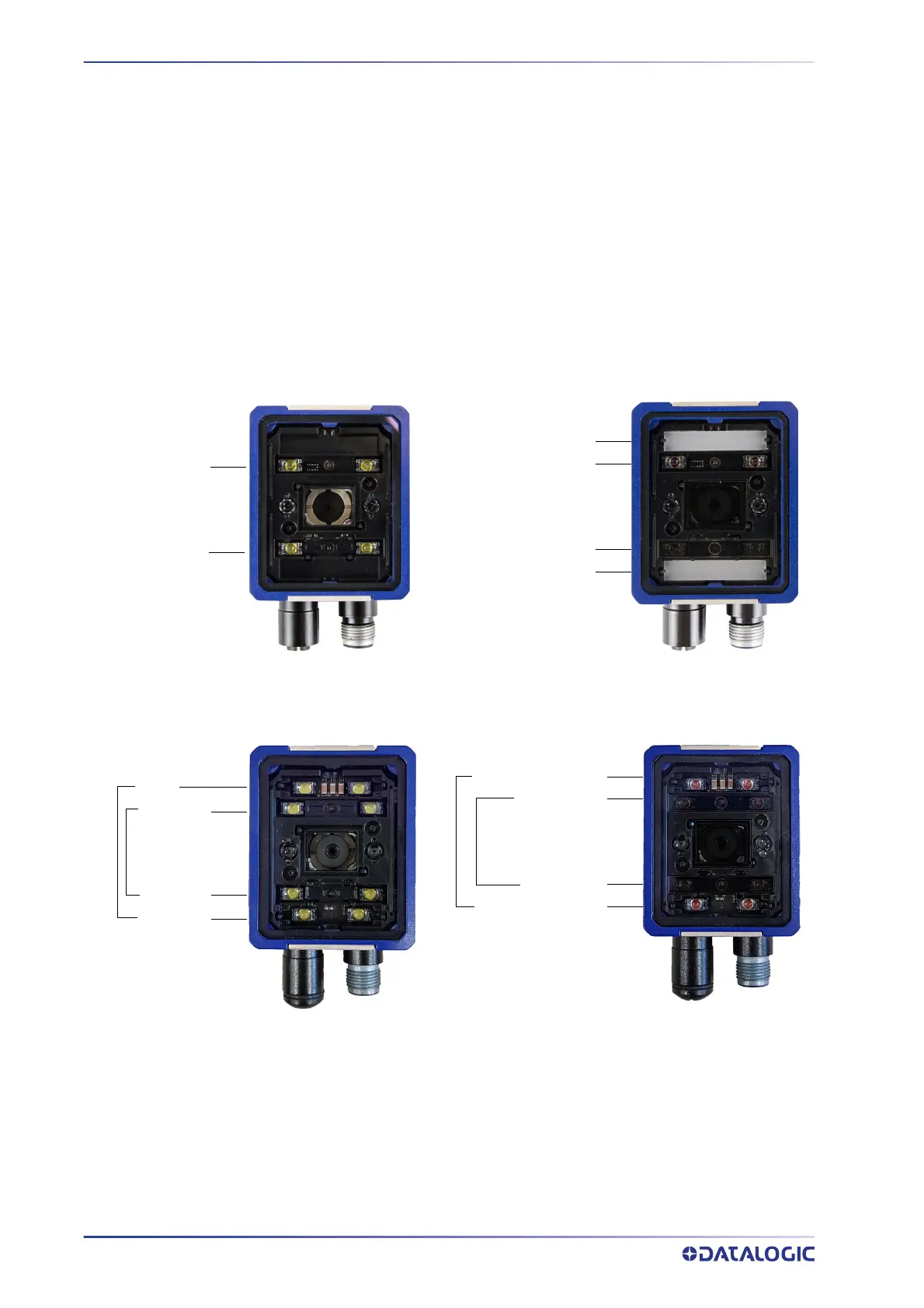

Figure 16 - Matrix 220 Illuminators
