MECHANICAL DIMENSIONS
Matrix 220 can be installed to operate in different positions. The two screw holes (M3 x
4mm depth) on the body of the reader are for mechanical fixture.
The diagrams below give the overall dimensions of the reader and may be used for its
installa
tion.
Refer to page 60 for various mounting solutions and correct positioning, and
Chapter 6,
Reading Features for FOV vs. Reading Distance considerations.
38
[1.50]
47
[1.85]
20.5
[0.81]
38
[1.50]
37.6
[1.48]
28.1
[1.11]
58
[2.27]
78
[3.07]
Ø3
[Ø0.12]
n°2
4 mm
x
mm
[inch]
optical axis
optical axis

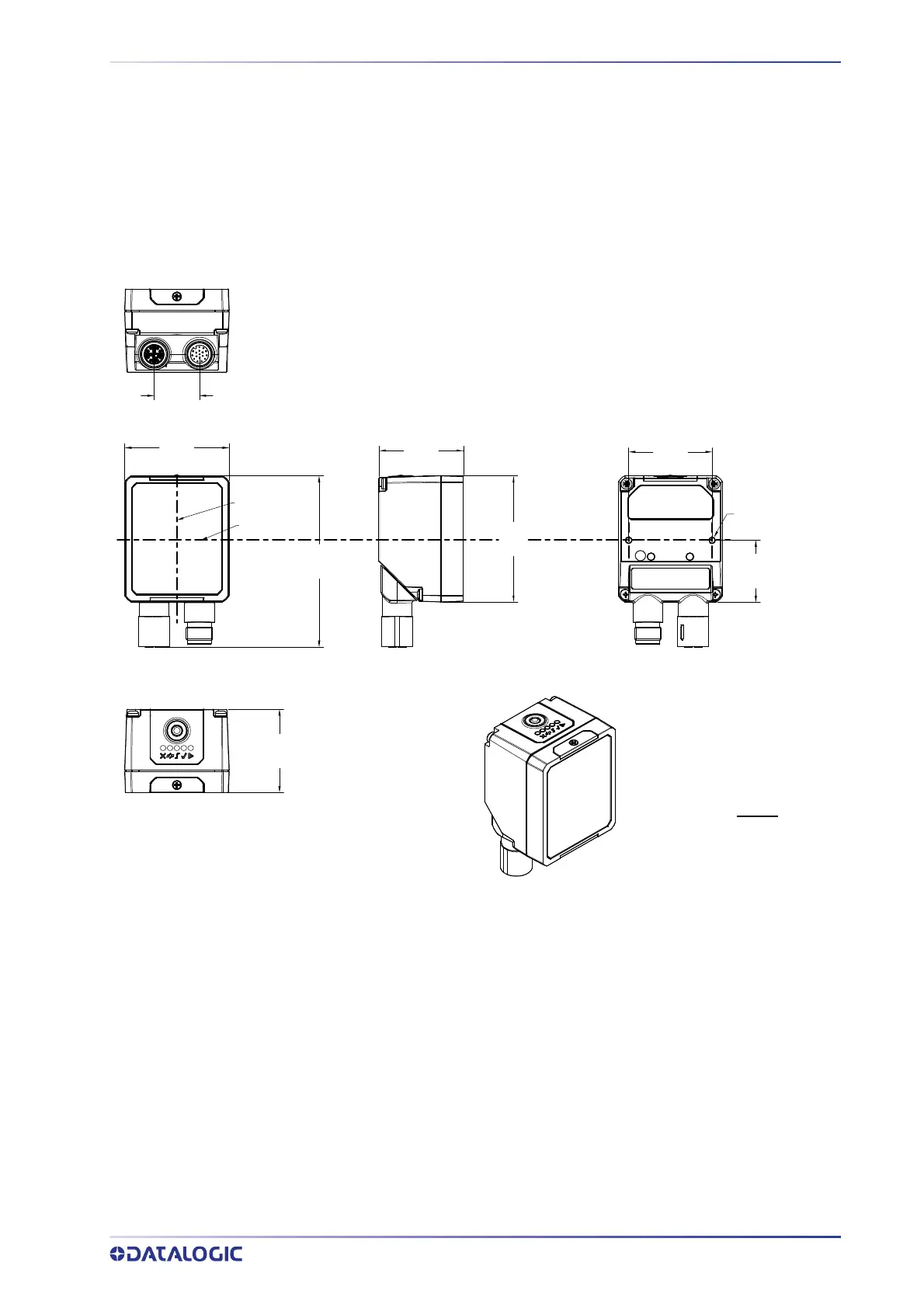

Figure 31 - Overall Dimensions Standard Models; Connector at 0°
