n°2
4 mm
x
47
[1.85]
58
[2.30]
58
[2.26]
37.6
[1.48]
Ø3
[Ø0.12]
20.5
[0.81]
38
[1.50]
mm
[inch]
optical axis
optical axis
INSTALLATION
56 MATRIX 220

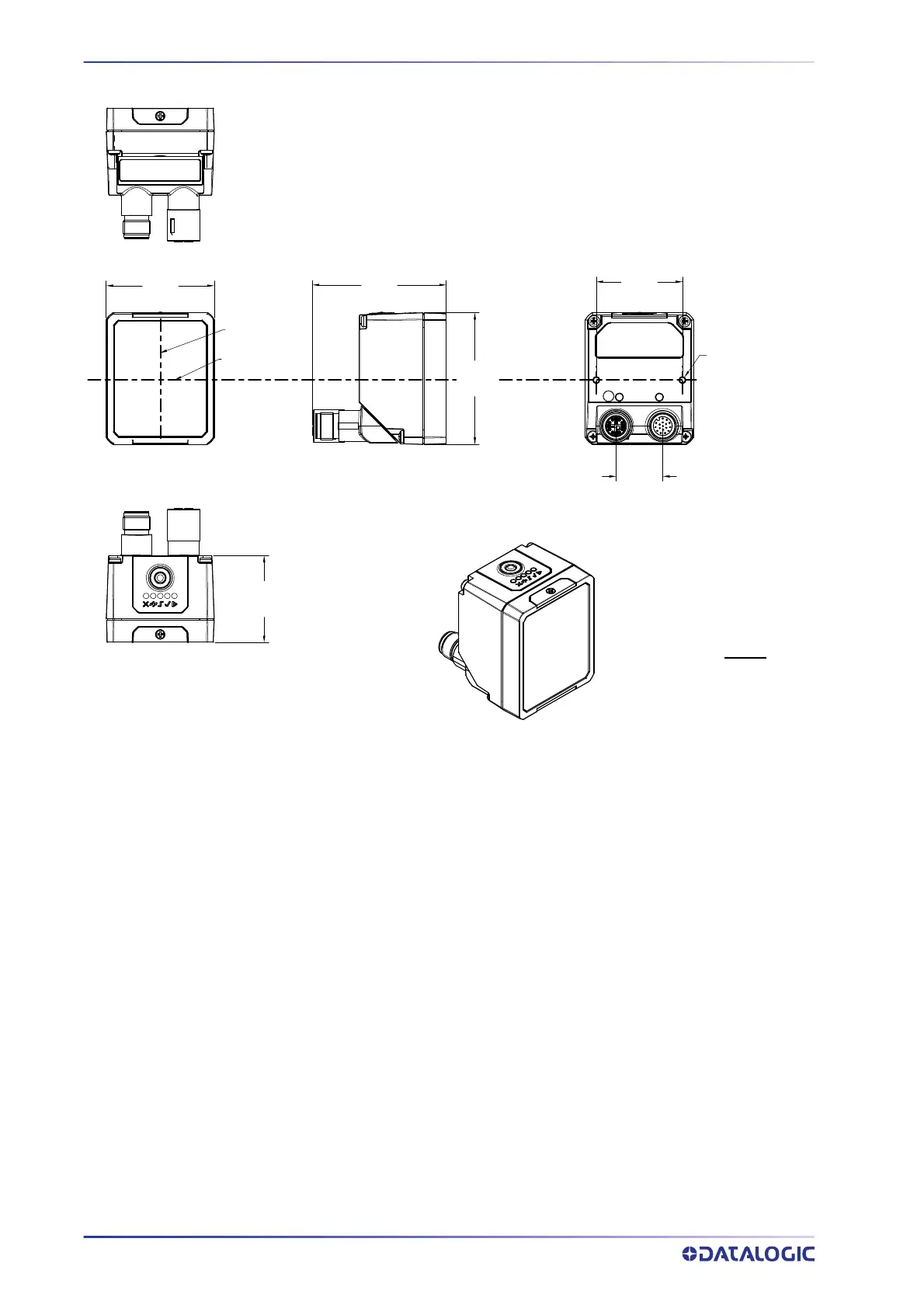

Figure 32 - Overall Dimensions Standard Models; Connector at 90°
