BM150 DISPLAY MODULE CONFIGURATION AND MESSAGES
PRODUCT REFERENCE GUIDE
171

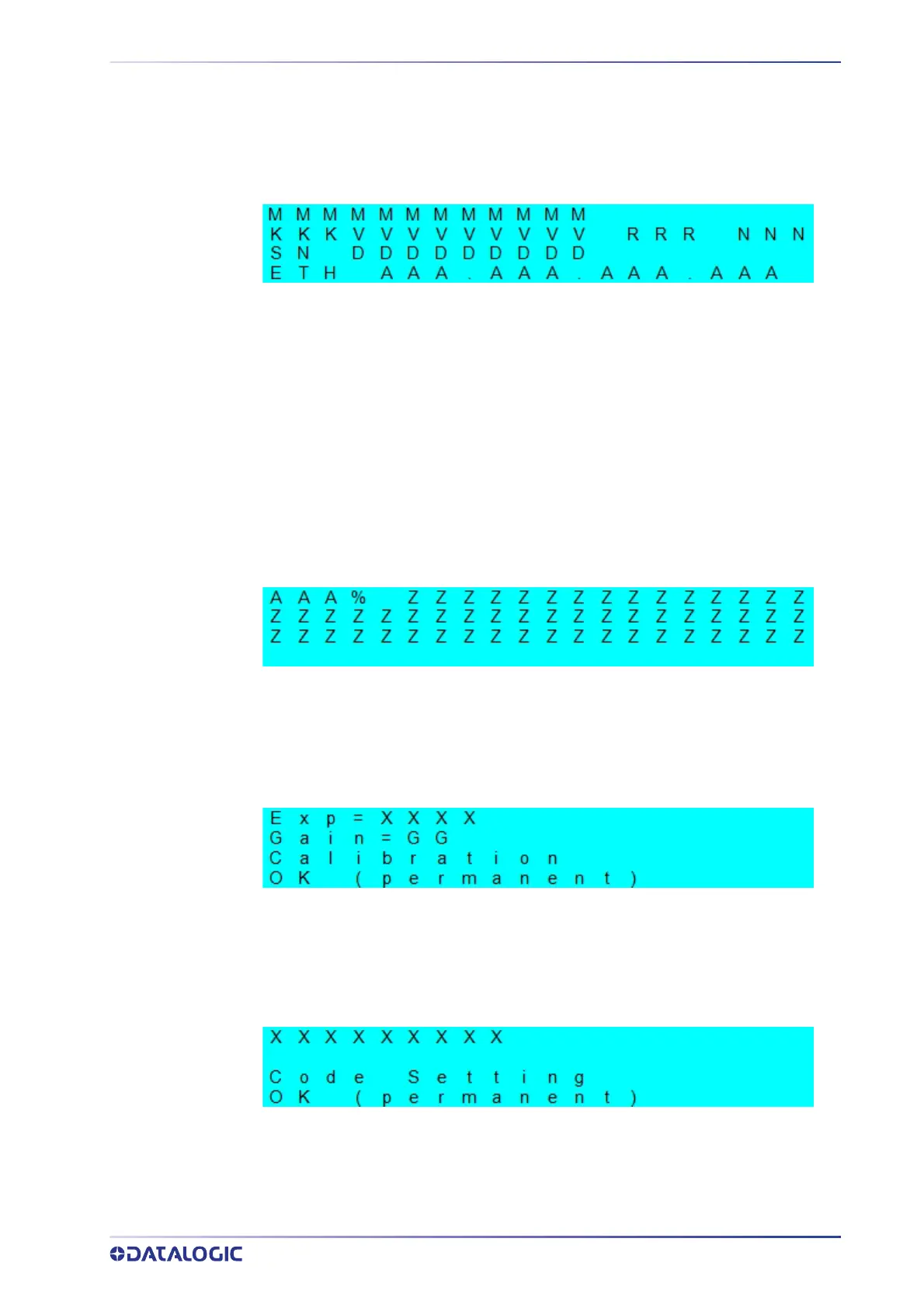

Display Messages
The following examples of Remote Display messages are given to help interpret the
information reported. The content of these messages depends on the connected reader.
Welcome Message
M = scanner model
K = software – STD=Standard, SS =Special
V = software version
R = Device Network Type – MUL=Multidata, SYN=Synchronized, ALN=Alone
N = Device Network Setting – M00=ID-NET Network Master, Sxx= ID-NET Network Slave
addr
es
s, Null string= Alone (no network)
D = device serial number
A = Ethernet IP Address
Test Mode Results
A = reading percentage from 000 to 100%.
Z = code content.
Calibration (Setup) Results
X = exposure value (in μs).
G = gain value
Code Setting (Learn) Results
X = recognized code symbology.
To Next Page
