INTRODUCTION
52
MATRIX 220
Time set to 250 μs, which allows a theoretical maximum application speed of 1320 mm/
s. When HDR is enabled, the Exposure Time can be reduced to 100 μs, which allows a
theoretic
al maximum application speed of 3300 mm/s.
For more details on line speed and exposure time calculations, refer to “Maximum Line
Speed and Exposure Time Calculations” on page 119.
To enable the HDR function on DL.CODE, go to Advanced Setup>Image Settings>Image
Quality>HDR
Selector
, then select HDR.

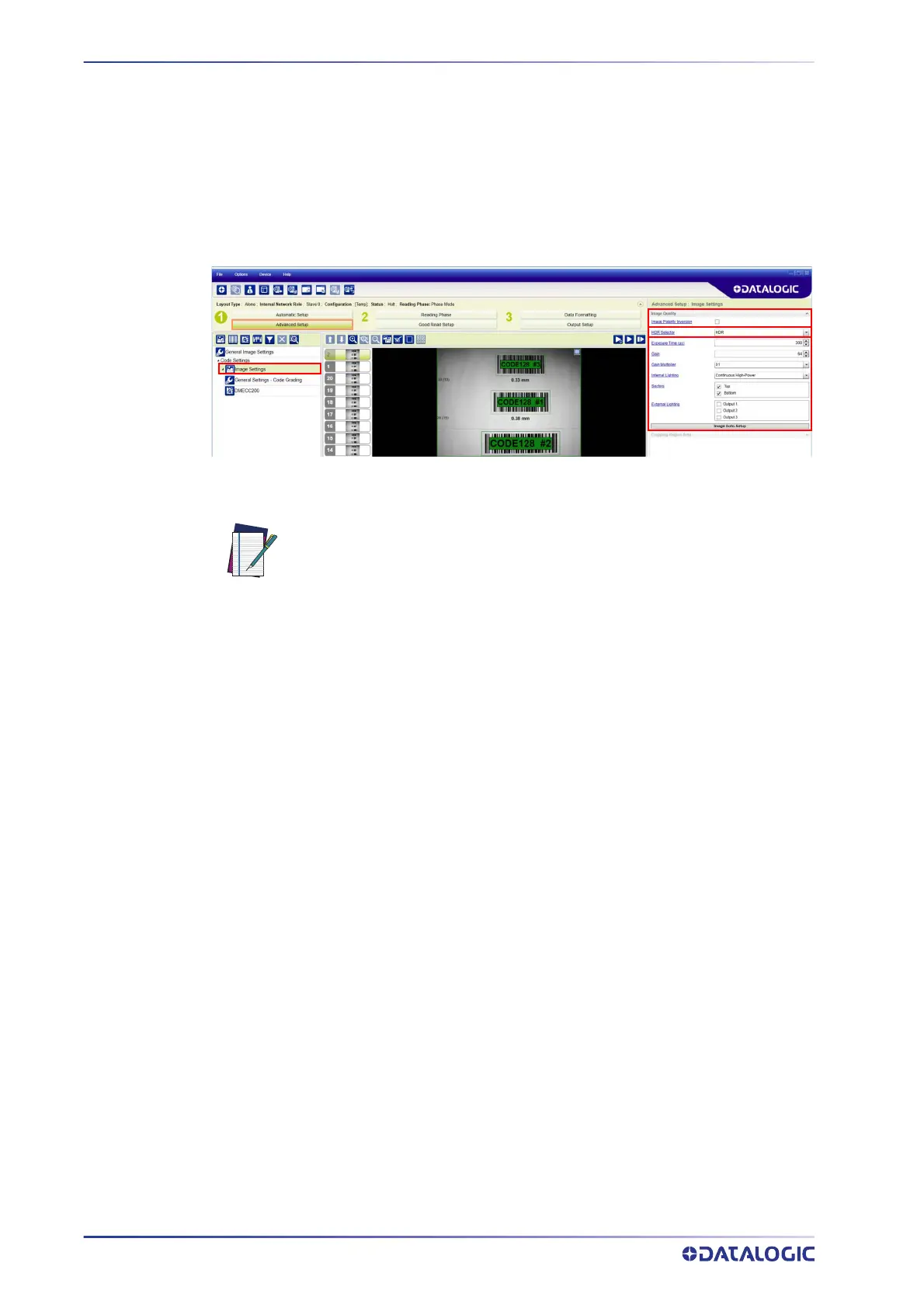

Figure 29 - Enabling HDR on DL.CODE
NOTE
When HDR is enabled, we recommend setting the GainMultiplier to x1.
