MOUNTING FLEXIBLE CABLES
PRODUCT REFERENCE GUIDE
65

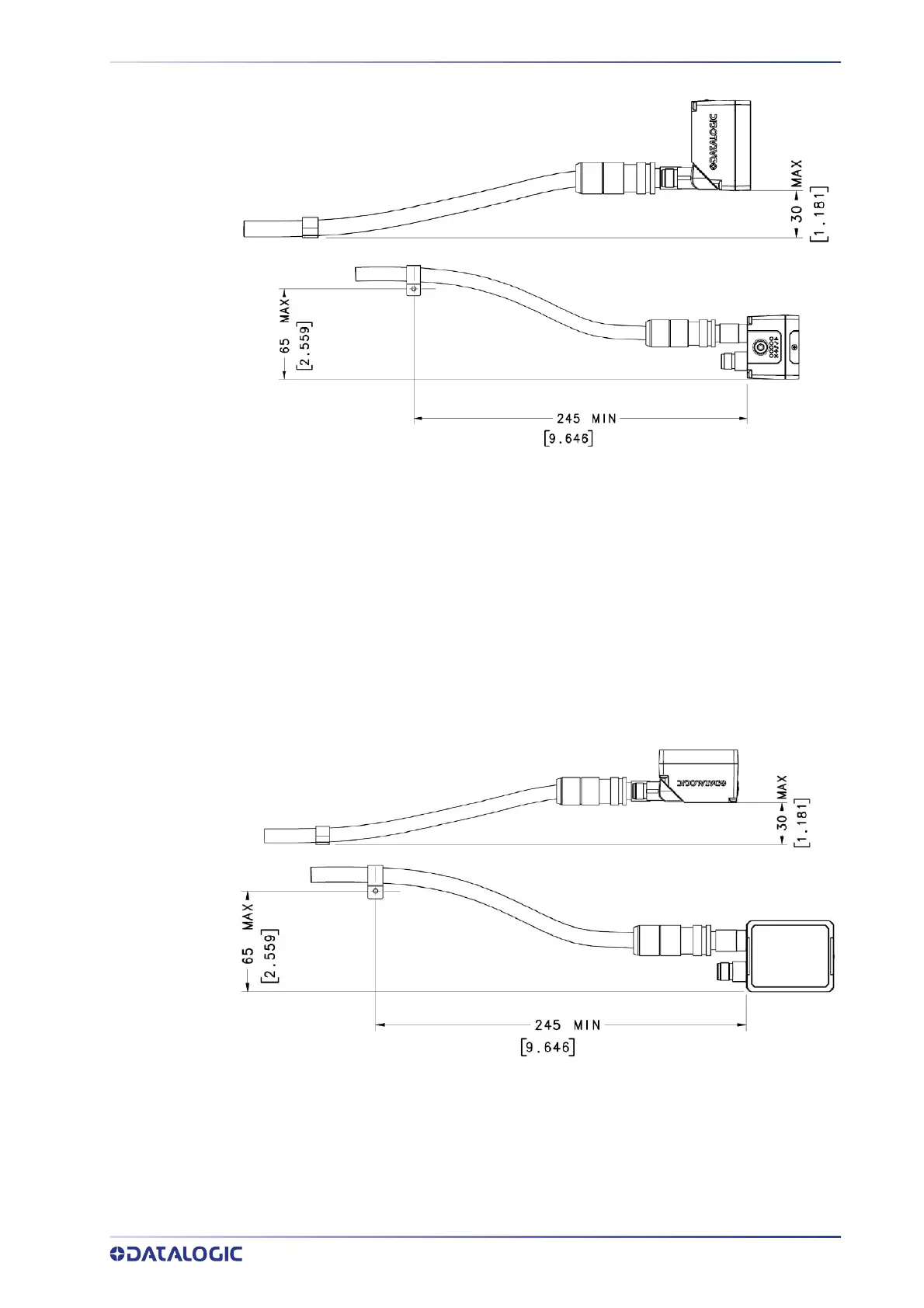

Figure 41 - Flexible power cable connected to Matrix reader with connector at 90°
Figure 42 - Flexible Ethernet cable connected to Matrix reader with connector at 0°
