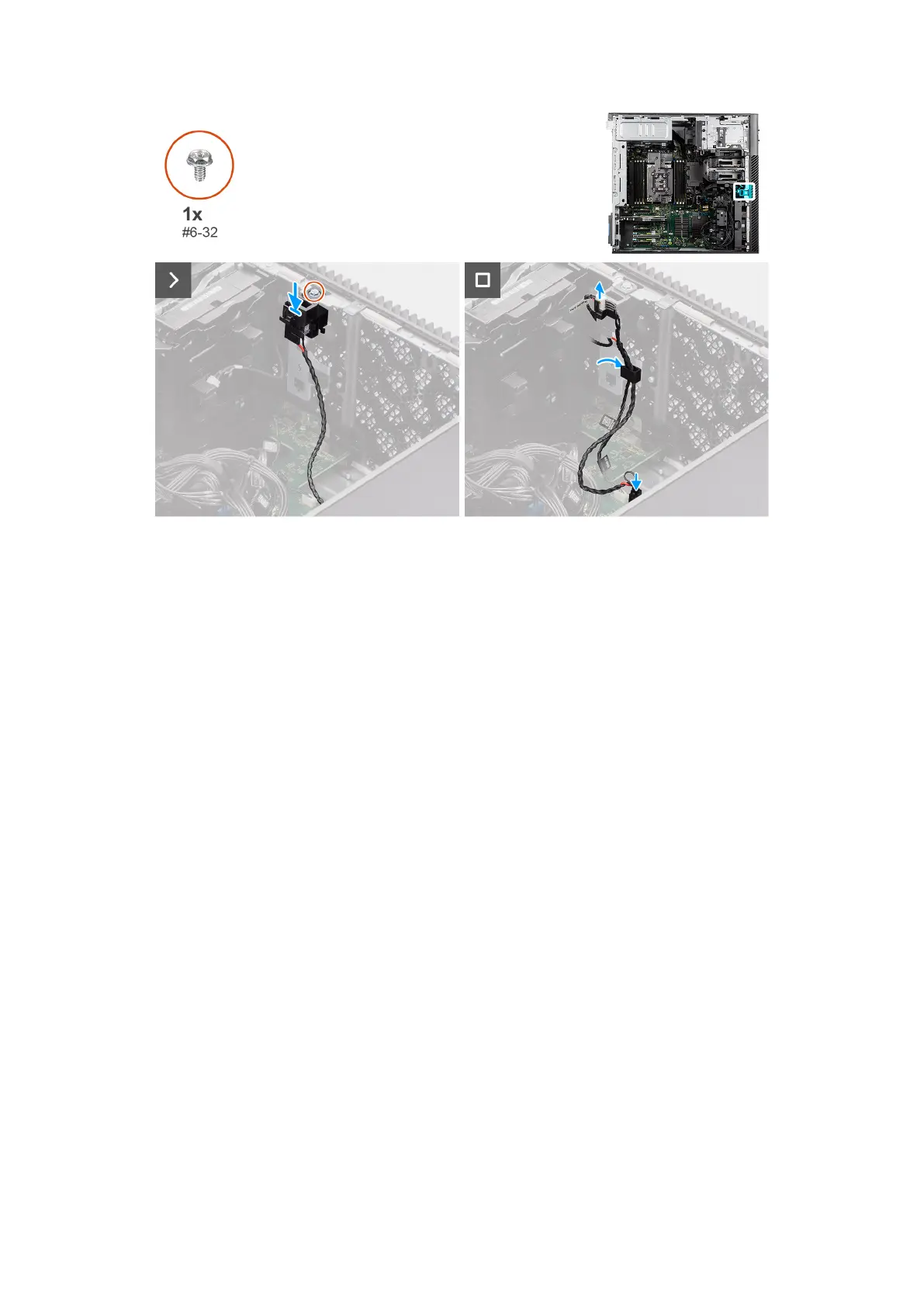

Figure 82. Installing the intrusion switch
Steps
1. Insert the intrusion switch into its slot in the chassis and secure it into place with the single (#6-32) screw.
2. Route the speaker-dongle cable through the routing guide on the intrusion switch.
3. Route the intrusion switch cable and speaker cable through the cable clip.
4. Connect the intrusion-switch cable to the connector on the system board.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the air shroud.
About this task
The following images indicate the location of the speaker and provide a visual representation of the removal procedure.
110
Removing and installing Customer Replaceable Units (CRUs)
