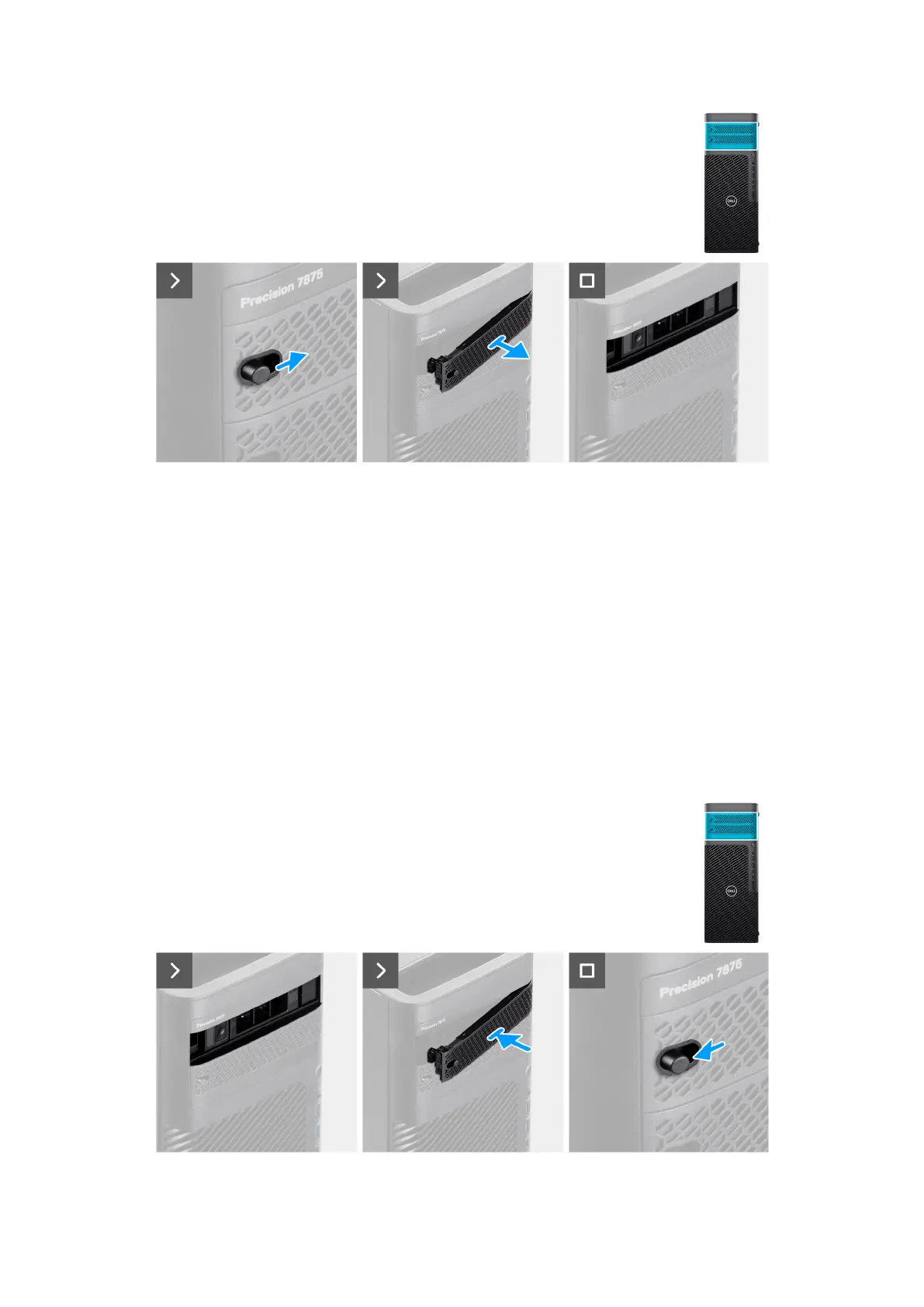

Figure 18. Removing the front bezel with hard drive
Steps
1. Push the latch to unlock the bezel from the chassis.
2. Slide and remove the bezel from the computer.
Installing the front bezel with hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front bezel with hard drive and provide a visual representation of the
installation procedure.
Figure 19. Installing the front bezel with hard drive
Removing and installing Customer Replaceable Units (CRUs)
45
