About this task
The following images indicate the location of the slim optical-drive and provide a visual representation of the removal procedure.

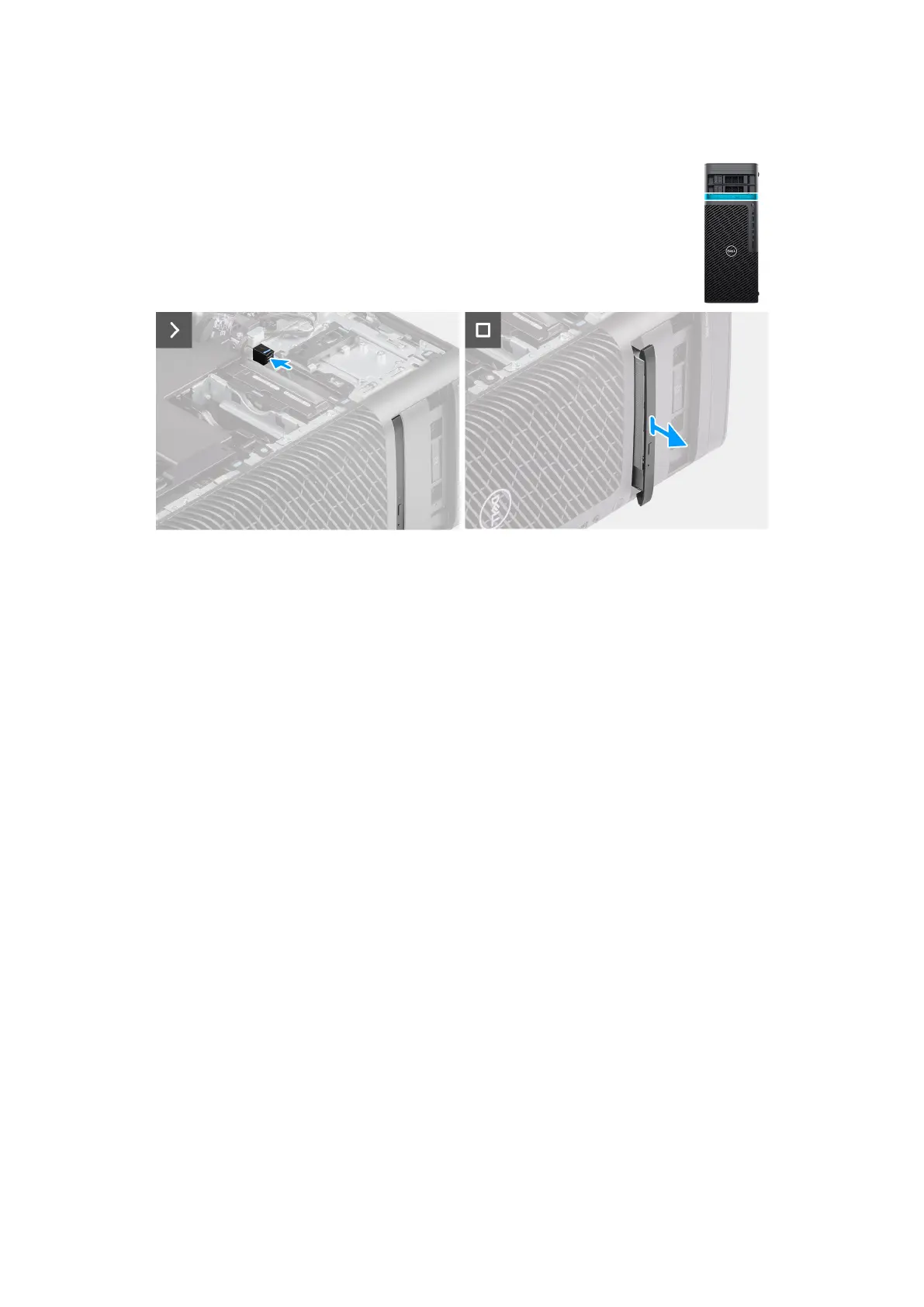

Figure 40. Removing the slim optical-drive
Steps
1. Push the slim optical-drive latch to release it from the flex bay.
2. Slide and remove the slim optical-drive from the slot on the flex bay.
Installing the slim optical-drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the slim optical-drive and provide a visual representation of the installation
procedure.
66
Removing and installing Customer Replaceable Units (CRUs)
